1
Engine displacement
850
2
Year
2019
3
Trim
850 RUSH XCR SC SELECT
4
Parts Catalog
WATER PUMP
5
Parts Diagram
Parts Catalog
STARTER MOTOR
by
SUSPENSION, CONTROL ARMS, SPINDLE AND SHOCK MNTG
WATER PUMP
1
2
3
4
5
6
7
8
9
10
11
12
1
SCR-HXFL-M6X1.0X20 8.8 ZY3 DRI
7520704
$4,19 Unit Price incl. VAT
2
COVER-WATERPUMP CAST AL
5634074
5634584
$47,24 Unit Price incl. VAT
3
NYLOC OLIVE NUT; 8 MM X 1.25 MM
7547332
$7,34 Unit Price incl. VAT
4
WATERPUMP COVER SEAL
5416669
$15,74 Unit Price incl. VAT
5
WATERPUMP IMPELLER
5453759
$52,49 Unit Price incl. VAT
6
WASHER-D 10.20X14.07X1.165
7557129
$23,09 Unit Price incl. VAT
7
SEAL
3610067
3610433
$37,79 Unit Price incl. VAT
8
SEAL-OIL 30X12X6
5416142
5417218
$17,84 Unit Price incl. VAT
9
RING-RTNG D1300-0300A
7710858
$4,19 Unit Price incl. VAT
10
BEARING-BALL 6903-C3
3515017
$20,99 Unit Price incl. VAT
11
WATERPUMP CROSS SHAFT KIT
2207949
$152,24 Unit Price incl. VAT
12
BEARING-BALL 12X28X8
3514327
$12,59 Unit Price incl. VAT

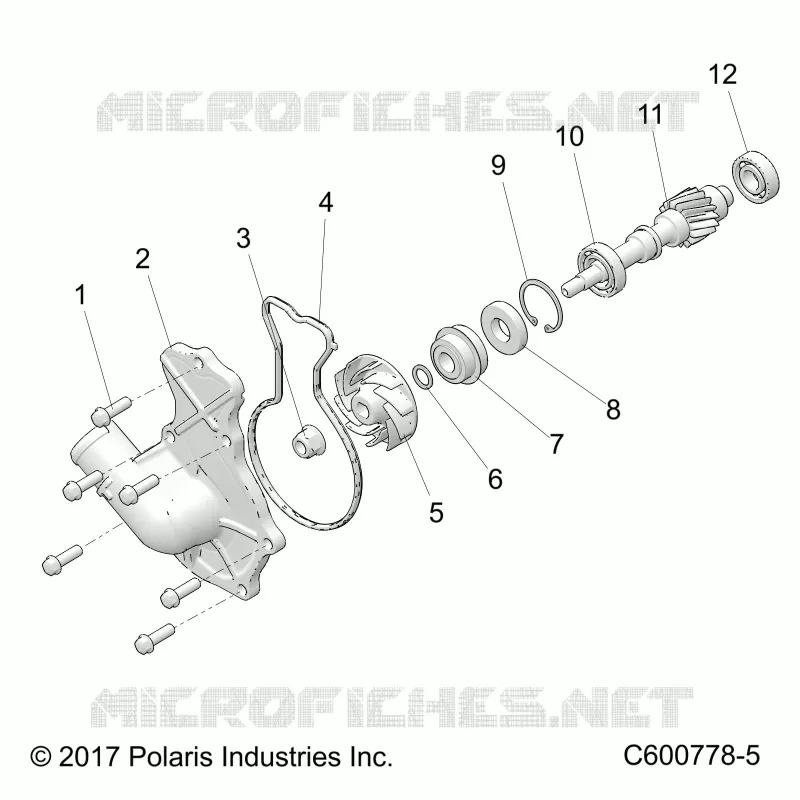

Find the detailed WATER PUMP POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
