1
Engine displacement
850
2
Year
2019
3
Trim
850 RUSH XCR SC SELECT
4
Parts Catalog
STEERING, SKI ASM.
5
Parts Diagram
Parts Catalog
FUEL SYSTEM, RAIL, LINES AND THROTTLE BODY
by
UPPER STEERING & HANDLEBAR ASM.
STEERING, SKI ASM.
1
1
1
1
2
2
3
4
5
5
6
7
8
9
10
11
12
13
14
1
SKI TOE; PLASTIC; BRIGHT WHITE
5435681133
Not Available
1
PLASTIC SKI TOE; GLOSS BLACK
5435681070
Not Available
1
PLASTIC TOE; INDY RED
5435681293
Not Available
1
TOE; PLASTIC; LIME SQUEEZE
5435681630
Not Available
2
NYLOC OLIVE NUT; 8 MM X 1.25 MM
7547332
$7,34 Unit Price incl. VAT
3
NUT-HEX-M6X1.0 ZOD NYL
7547650
$7,34 Unit Price incl. VAT
4
WSHR-FLAT M6.35X14.30X1.2 ZOD
7556737
$4,19 Unit Price incl. VAT
5
WASHER .406 X 1.25 X .125
7556130
$11,54 Unit Price incl. VAT
6
NUT-M10X1.5 HFN NYLOC ZOD
7547423
$7,34 Unit Price incl. VAT
7
SKI STOP RUBBER
5414375
$47,24 Unit Price incl. VAT
8
PLASTIC SKI BUSHING
5136908
$27,29 Unit Price incl. VAT
9
SKI ASSEMBLY GLOSS BLACK
1823916070
Not Available
10
BOLT 10 MM X 1.5 MM X 155 MM
7519098
$23,09 Unit Price incl. VAT
11
3 STUD SKI RUNNER 8MM CARBIDE 60 DEG PNT
2879025
$120,74 Unit Price incl. VAT
12
WASHER-.344X.688X.063 FL-ZOD
7556524
$1,56 Unit Price incl. VAT
13
SCR-HXFL-M6X1.0X105 8.8 ZOD
7520233
$11,54 Unit Price incl. VAT
14
CL8.8 OLV-D
7518906
$6,29 Unit Price incl. VAT

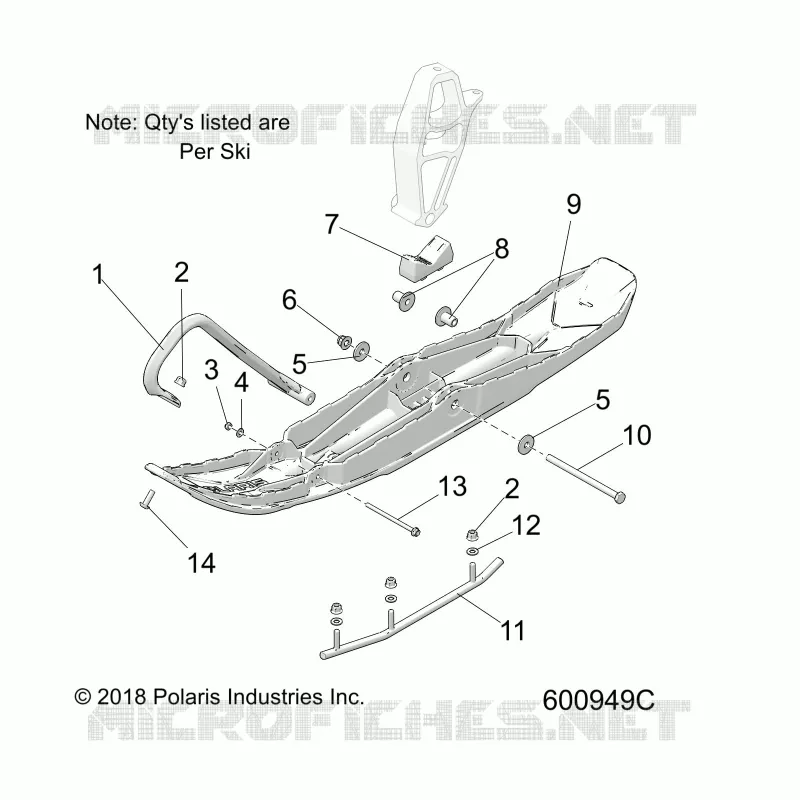

Find the detailed STEERING, SKI ASM. POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.
