Engine displacement
400
2
Year
2001
3
Trim
XPLORER 400 - A01CG38CA
4
Parts Catalog
GEARCASE (IF BUILT BEFORE 4/01/01)- A01CG38CA (4963916391C007)
5
Parts Diagram
Parts Catalog
TOOL KIT
by
GEARCASE (IF BUILT AFTER 4/01/01)- A01CG38CA (4963916391D07)
GEARCASE (IF BUILT BEFORE 4/01/01)- A01CG38CA (4963916391C007)
-
1
2
2
2
3
4
5
6
7
8
8
9
10
10
10
11
11
11
12
13
14
15
16
17
18
19
19
20
20
20
21
21
22
23
24
25
25
26
26
27
27
28
29
29
30
30
31
32
33
34
35
36
37
38
39
39
39
40
40
41
42
43
43
43
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
-
GEARCASE HLR CDS XPL 400
1341326
9990000
Not Available
1
SCREW
3233525
9999999
Not Available
2
WASHER
3233054
9999999
Not Available
3
DAMPENER CARB.VIBRATION
3233526
9999999
Not Available
4
PLUG
3233448
9999999
Not Available
5
WASHER
3233035
9999999
Not Available
6
GEARCASE-LH
3233632
9999999
Not Available
7
KNOCK PIPE
3233529
9999999
Not Available
8
WASHER
3233176
$17,84 Unit Price incl. VAT
9
GEAR 33T
3233731
9999999
Not Available
10
NEEDLE BEARING
3233718
$60,89 Unit Price incl. VAT
11
RING RET-RING EXTERNAL
3233720
9999999
Not Available
12
ENGAGEMENT DOG; LOW
3233732
9999999
Not Available
13
SHIFT FORK; LOW
3233706
9999999
Not Available
14
SHAFT REVERSE 31T
3233736
9999999
Not Available
15
FORK SHIFT HIGH/REV
3233633
9999999
Not Available
16
SPROCKET-24T
3233719
9999999
Not Available
17
DOG ENGAGEMENT HIGH/REV
3233721
9999999
Not Available
18
GEAR; 30T
3233722
9999999
Not Available
19
RING RETAINING
3233177
9999999
Not Available
20
BEARING
3233018
$47,24 Unit Price incl. VAT
21
SCREW
3233033
9999999
Not Available
22
BRACKET INTERLOCK
3233309
9999999
Not Available
23
SPRING
3233032
9999999
Not Available
24
PIN INTERLOCK
3233308
9999999
Not Available
25
O-RING
3233548
9999999
Not Available
26
RETAINING RING
3233045
$9,44 Unit Price incl. VAT
27
NUT
3233055
3233961
$5,24 Unit Price incl. VAT
28
BELLCRANK
3233547
9999999
Not Available
29
WASHER
3233040
9999999
Not Available
30
SHAFT SHIFT
3233549
9999999
Not Available
31
BELLCRANK
3233153
$62,99 Unit Price incl. VAT
32
SCREW
3233691
3233749
$10,49 Unit Price incl. VAT
33
DECAL-SWITCH
3233636
9999999
Not Available
34
SWITCH-H/R ITW
3233635
9999999
Not Available
35
OIL FILL PLUG
3233711
9999999
Not Available
36
WASHER
3233324
9999999
Not Available
37
SWITCH ITW 2 POSITION
3233617
9999999
Not Available
38
VENT
3233037
9999999
Not Available
39
SEAL
3233248
3233788
$57,74 Unit Price incl. VAT
40
SCREW
3233539
9999999
Not Available
41
COVER SNORKEL
3233556
9999999
Not Available
42
O-RING
3233555
9999999
Not Available
43
BEARING
3233020
$80,84 Unit Price incl. VAT
44
SHIM
3233554
$62,99 Unit Price incl. VAT
45
SNORKEL SUBASM SHAFT
3233723
9999999
Not Available
46
GARLOCK BUSHING
3233552
$41,99 Unit Price incl. VAT
47
GEARCASE RH H/L/R
3233799
9999999
Not Available
48
OIL DEFLECTOR
3233043
9999999
Not Available
49
SILENT CHAIN
3233036
9999999
Not Available
50
SHAFT-INPUT HIGH/LOW/REVERSE
3233704
9999999
Not Available
51
BEARING
3233019
$54,59 Unit Price incl. VAT
52
RING RETAINING
3233537
9999999
Not Available
53
SPROCKET 14/22T
3233538
9999999
Not Available
54
COVER-BEARING
3233263
9999999
Not Available
55
RETAINING RING
3233306
$9,44 Unit Price incl. VAT
56
PINION SHAFT; 13 TOOTH
3233540
9999999
Not Available
57
GARLOCK BUSHING
3233541
9999999
Not Available
58
WASHER THRUST
3233542
9999999
Not Available
59
ROLLER CHAIN
3233546
9999999
Not Available
60
SPROCKET 16/26T
3233545
9999999
Not Available
61
OUTPUT SHAFT
3233544
9999999
Not Available
62
GEAR 98T HCR.
3233558
9999999
Not Available
63
SCREW
3233252
$9,44 Unit Price incl. VAT
64
PIVOT BUSHING
3233527
9999999
Not Available

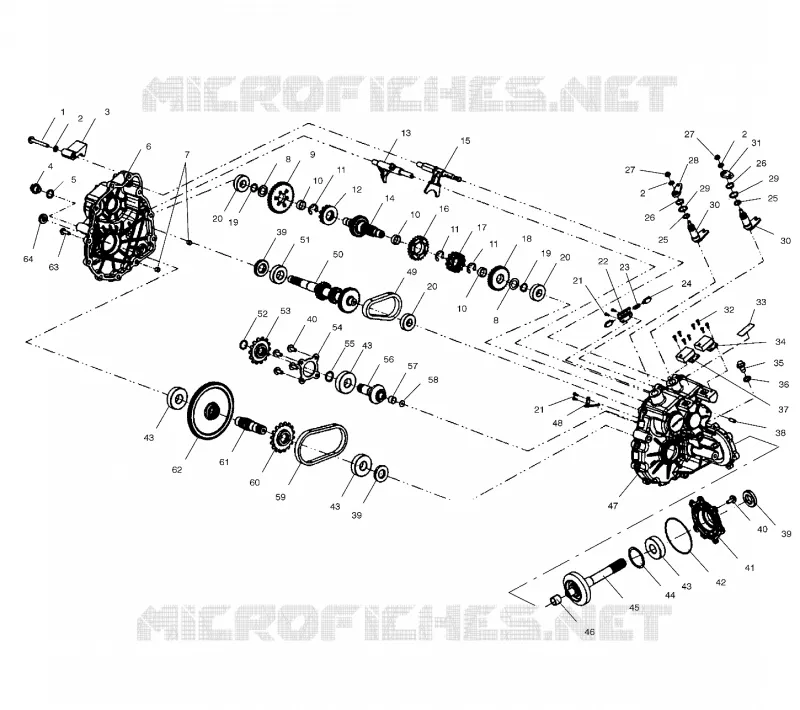

Find the detailed GEARCASE (IF BUILT BEFORE 4/01/01)- A01CG38CA (4963916391C007) POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.
