Engine displacement
400
2
Year
2001
3
Trim
XPLORER 400 - A01CG38CA
4
Parts Catalog
GEARCASE (IF BUILT AFTER 4/01/01)- A01CG38CA (4963916391D07)
5
Parts Diagram
Parts Catalog
GEARCASE (IF BUILT BEFORE 4/01/01)- A01CG38CA (4963916391C007)
by
GEARCASE (IF BUILT AFTER 4/01/01)- A01CG38CA (4963916391D07)
-
1
2
2
3
4
5
6
7
8
8
8
9
10
11
12
12
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
29
29
29
30
31
32
33
34
35
36
37
38
39
40
40
41
42
43
44
45
46
46
47
47
48
49
49
49
50
50
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
-
GEARCASE-ASM HLR CDS XPL 400
1341379
9990000
Not Available
1
SCREW
3233525
9999999
Not Available
2
WASHER
3233054
9999999
Not Available
3
DAMPENER CARB.VIBRATION
3233526
9999999
Not Available
4
PIVOT BUSHING
3233527
9999999
Not Available
5
SCREW
3233252
$9,44 Unit Price incl. VAT
6
GEARCASE-LH
3233632
9999999
Not Available
7
KNOCK PIPE
3233529
9999999
Not Available
8
TRIPLE LIP SEAL
3233788
$57,74 Unit Price incl. VAT
9
BEARING
3233019
$54,59 Unit Price incl. VAT
10
SHAFT-INPUT HIGH/LOW/REVERSE
3233704
9999999
Not Available
11
SILENT CHAIN
3233036
9999999
Not Available
12
BEARING
3233018
$47,24 Unit Price incl. VAT
13
SCREW
3233749
$10,49 Unit Price incl. VAT
14
SWITCH ITW 2 POSITION
3233617
9999999
Not Available
15
WASHER
3233040
9999999
Not Available
16
BELLCRANK
3233153
$62,99 Unit Price incl. VAT
17
NUT
3233055
3233961
$5,24 Unit Price incl. VAT
18
BELLCRANK
3233547
9999999
Not Available
19
RETAINING RING
3233045
$9,44 Unit Price incl. VAT
20
O-RING
3233548
9999999
Not Available
21
SHAFT SHIFT
3233549
9999999
Not Available
22
RIGHT GEARCASE HLR
3233895
9999999
Not Available
23
PIN INTERLOCK
3233308
9999999
Not Available
24
SPRING
3233032
9999999
Not Available
25
BRACKET INTERLOCK
3233309
9999999
Not Available
26
OIL DEFLECTOR
3233043
9999999
Not Available
27
SCREW-TAPPING W/LOCK WASHER
3233747
9999999
Not Available
28
SWITCH-H/R ITW
3233635
9999999
Not Available
29
BEARING
3233020
$80,84 Unit Price incl. VAT
30
ROLLER CHAIN
3233546
9999999
Not Available
31
SPROCKET 16/26T
3233545
9999999
Not Available
32
OUTPUT SHAFT
3233544
9999999
Not Available
33
GEAR 98T HCR.
3233558
9999999
Not Available
34
PLUG
3233448
9999999
Not Available
35
WASHER
3233035
9999999
Not Available
36
FORK SHIFT HIGH/REV
3233633
9999999
Not Available
37
SHIFT FORK; LOW
3233706
9999999
Not Available
38
RING RETAINING
3233537
9999999
Not Available
39
SPROCKET 14/22T
3233538
9999999
Not Available
40
SCREW
3233539
9999999
Not Available
41
COVER-BEARING
3233263
9999999
Not Available
42
RETAINING RING
3233306
$9,44 Unit Price incl. VAT
43
PINION SHAFT; 13 TOOTH
3233540
9999999
Not Available
44
GARLOCK BUSHING
3233541
9999999
Not Available
45
WASHER THRUST
3233542
9999999
Not Available
46
RING RETAINING
3233177
9999999
Not Available
47
WASHER
3233176
$17,84 Unit Price incl. VAT
48
GEAR; 30T
3233722
9999999
Not Available
49
NEEDLE BEARING
3233718
$60,89 Unit Price incl. VAT
50
RING RET-RING EXTERNAL
3233720
9999999
Not Available
51
DOG ENGAGEMENT HIGH/REV
3233721
9999999
Not Available
52
SPROCKET-24T
3233719
9999999
Not Available
53
SHAFT REVERSE 31T
3233736
9999999
Not Available
54
ENGAGEMENT DOG; LOW
3233732
9999999
Not Available
55
GEAR 33T
3233731
9999999
Not Available
56
COVER SNORKEL
3233556
9999999
Not Available
57
O-RING
3233555
9999999
Not Available
58
SHIM
3233554
$62,99 Unit Price incl. VAT
59
GEAR-25T
3233898
9999999
Not Available
60
SHAFT-SNORKEL
3233899
9999999
Not Available
61
GARLOCK BUSHING
3233552
$41,99 Unit Price incl. VAT
62
VENT
3233037
9999999
Not Available
63
PLUG VENT CAP
3233286
9999999
Not Available
64
SCREW
3233026
9999999
Not Available
65
CHAIN GUIDE
3233897
$89,24 Unit Price incl. VAT
66
WASHER
3233324
9999999
Not Available
67
OIL FILL PLUG
3233711
9999999
Not Available

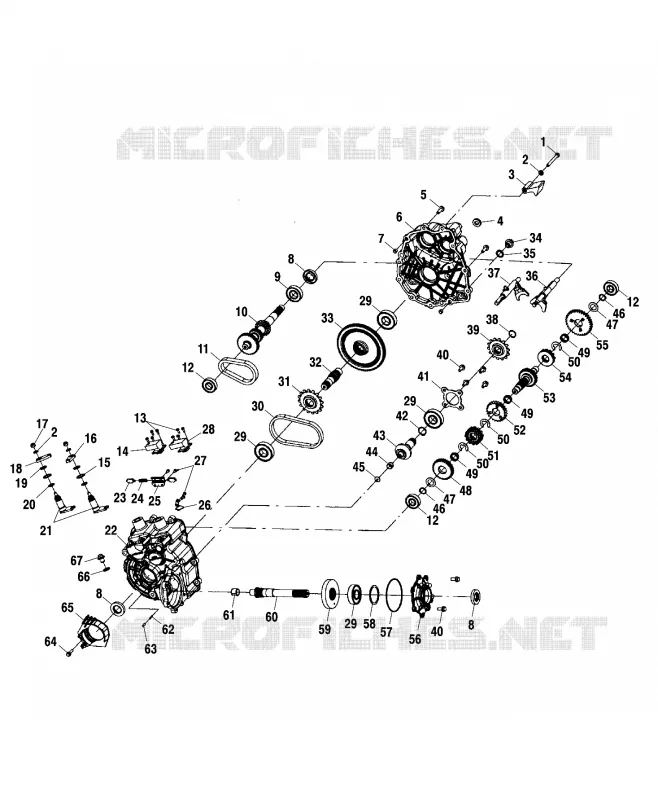

Find the detailed GEARCASE (IF BUILT AFTER 4/01/01)- A01CG38CA (4963916391D07) POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.
