REAR HOUSING for POLARIS XPLORER 400 - A01CG38CA from 2001

REAR HOUSING

1

RETAINING RING

7710472

$10,49 Unit Price incl. VAT

2

EXTRUSION RETAINER NUT

5510313

9999999

Not Available

3

NYLOCK NUT

7542439

$2,09 Unit Price incl. VAT

4

SEAL FOAM

5411555

9999999

Not Available

5

DISC BRK 8.0 OD .188

5243679

9999999

Not Available

6

STUD 3/8-24 X 1.12

7515513

9999999

Not Available

7

HUB ASMBRK.DISCLOCKING

1520259

9999999

Not Available

8

SNAP RING

7710405

9999999

Not Available

8

RET RING-EATON(240)-Y

7710496

9999999

Not Available

9

SPACER AXLE

5010462

9999999

Not Available

10

O RING

5410889

9999999

Not Available

11

LIP SEAL

3610070

$31,49 Unit Price incl. VAT

12

TAPERED BEARING CONE

3554518

$68,24 Unit Price incl. VAT

13

TAPERED BEARING CUP

3554517

$27,29 Unit Price incl. VAT

14

HOUSING AXLE REAR

5132098

9999999

Not Available

15

FITTING LUBE.W/BALL CK.(10)

7080306

$5,76 Unit Price incl. VAT

16

LINK CONNECT 520 ORD

3225027

3221192

$62,99 Unit Price incl. VAT

17

AXLE-REAR HYBRID STD

5131968

9999999

Not Available

18

GUARD 38T SPKT BLK.ALUM.

5211585067

Not Available

19

SPACER-SPROCKET GUARD

5630586

9999999

Not Available

20

CHAIN 76P 520 ORD O-RING

3221111076

Not Available

21

SPROCKET; 36T

3222109

9999999

Not Available

22

BOLT

7512404

$7,34 Unit Price incl. VAT

23

SPROCKET ASSEMBLY; HUB; LOCKING

1520258

$204,74 Unit Price incl. VAT

24

NUT

7547108

$9,44 Unit Price incl. VAT

25

JAM NUT

7547031

9999999

Not Available

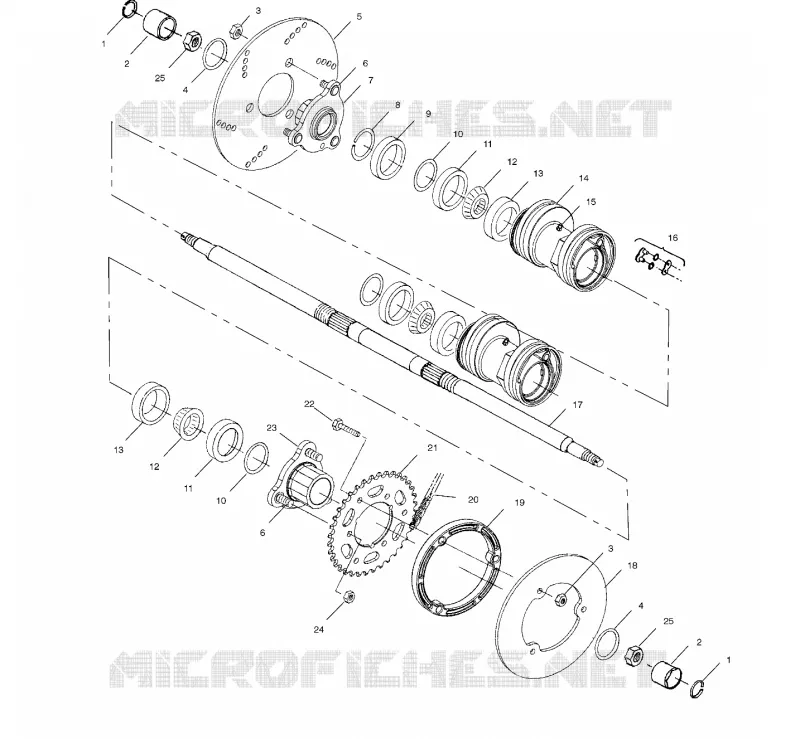

Find the detailed REAR HOUSING POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
