REAR SUSPENSION SHOCK for POLARIS RZR XP TURBO from 2018

REAR SUSPENSION SHOCK

1

PLATE-BACK-UP (050-01-018)

1500841

9999999

Not Available

1

SHOCK-REAR INTBYPASS LH

7044654

9999999

Not Available

1

PLATE-TOP OUT

1500470

9999999

Not Available

1

SHOCK-REAR INTBYPASS RH

7044672

9999999

Not Available

2

BUMPER (008-02-005)

1500844

$52,49 Unit Price incl. VAT

3

BUMPER (008-02-013)

1500866

$62,99 Unit Price incl. VAT

4

BALL; (FOX)

1500071

$10,49 Unit Price incl. VAT

5

NUT-LOCK (018-00-002)

1500842

1500472

$41,99 Unit Price incl. VAT

6

SCREW

1500070

9999999

Not Available

7

SCREW #4 SS PAN 018-01-036

1501011

$25,19 Unit Price incl. VAT

8

SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]

*******

Not Available

9

DECAL-RES INT BP 024-00-388

1501318

9999999

Not Available

10

DECAL-BAND 024-00-392

1501319

9999999

Not Available

11

O-RING .07 CS X 2.36

1501069

$14,69 Unit Price incl. VAT

12

O-RING .103 X 2.18

1501048

9999999

Not Available

13

O-RING .103 CS X 2.86

1501070

9999999

Not Available

14

O-RING .210 X .787

1501050

$14,16 Unit Price incl. VAT

15

INTERNAL SNAP RING

1501051

9999999

Not Available

16

WIRE; RETAIN. RING 038-01-052

1500960

$5,99 Unit Price incl. VAT

17

RING RET. WIRE SS 038-01-058

1501052

$26,24 Unit Price incl. VAT

18

BEARING CAP 202-00-063-1

1501320

9999999

Not Available

19

SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]

*******

Not Available

19

BODY CAP 206-91-403

1501321

9999999

Not Available

20

BODY-OUTER 17.7 209-33-177-3

1501322

9999999

Not Available

21

KNOB LOW SPD BLK 210-35-142-0

1501057

9999999

Not Available

22

EYELET

1501174

$178,49 Unit Price incl. VAT

23

EYELET PART REDUCER 10 SPHERICAL SLIP FI

1501076

$62,99 Unit Price incl. VAT

24

RESERVOIR 10.0TLG 227-42-100-4

1501175

9999999

Not Available

25

SHAFT; .875 X 17.1

1501176

9999999

Not Available

26

RING PRELOAD 234-00-395-1

1501079

9999999

Not Available

27

RING PRELOAD BU 234-00-396-1

1501080

9999999

Not Available

28

SCREW-BLACK RES. 800-10-003-A

1501303

9999999

Not Available

29

FLOAT PISTON ASSEMBLY

1501060

9999999

Not Available

30

INTERNAL BYPASS 806-52-009

1501323

9999999

Not Available

31

SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]

*******

Not Available

32

BEARING ASSEMBLY

1501324

9999999

Not Available

33

END CAP ASSEMBLY

1501063

$188,99 Unit Price incl. VAT

34

ADJUSTER-LCS 815-04-080

1501325

9999999

Not Available

35

GUIDE NEG SPRING 817-04-005

1501083

9999999

Not Available

36

BRNG. SPHER 1.187OD 001-00-029

1501044

$101,84 Unit Price incl. VAT

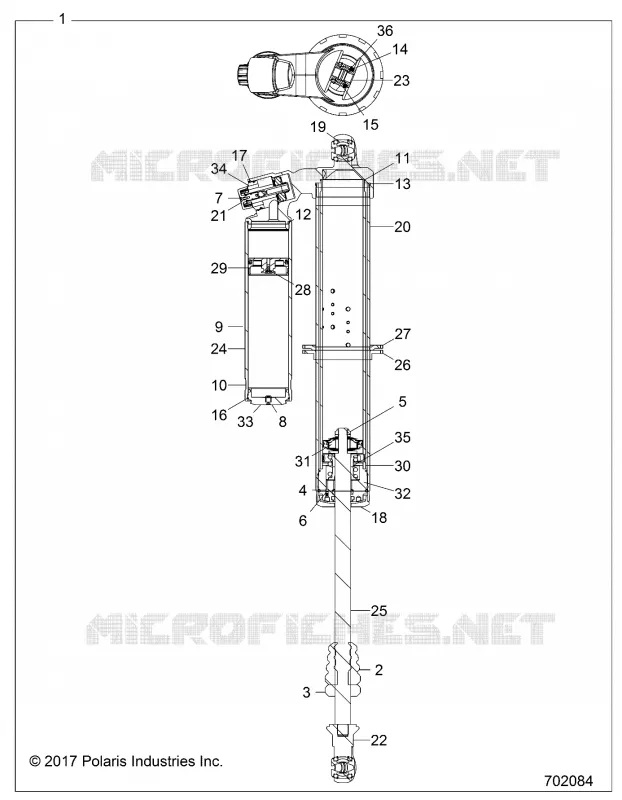

Find the detailed REAR SUSPENSION SHOCK POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
