1
Engine displacement
925
2
Year
2018
3
Trim
RZR XP TURBO
4
Parts Catalog
REAR SUSPENSION SHOCK
5
Parts Diagram
Parts Catalog
REAR SUSPENSION CONTROL ARMS
by
REAR SUSPENSION SHOCK (TO 2/12/2018)
REAR SUSPENSION SHOCK
1
2
3
4
5
6
7
8
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
31
31
32
33
34
31
31
37
1
1
2
3
4
5
5
6
7
8
9
10
11
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
1
SHOCK REAR
7044853
9999999
Not Available
2
NUT-SPRING 2.5 CLR 1425124-AC
1800836
$162,74 Unit Price incl. VAT
3
ASM-PISTON RES. 2.5 0925205
1800752
$272,99 Unit Price incl. VAT
4
RES-2.5X8.5L CLR 1625035-HC
1800837
$314,99 Unit Price incl. VAT
5
SHAFT; SSCHR NEEDLE (1425111)
1800620
$440,99 Unit Price incl. VAT
6
SPACER; 2.287L (1325106)
1800610
$115,49 Unit Price incl. VAT
7
O-RING
1800613
$20,99 Unit Price incl. VAT
8
O-RING
1800508
$10,49 Unit Price incl. VAT
9
O-RING
1800500
$3,66 Unit Price incl. VAT
10
RETAINING RING
1800482
$20,99 Unit Price incl. VAT
11
NUT 7/16 NYLOCK (1425112)
1800638
$9,44 Unit Price incl. VAT
12
BODY-2.5 21.07L 1625022-HC
1800838
$545,99 Unit Price incl. VAT
13
WIPER CAP; 2.5 IN X .75 IN
1800839
$89,24 Unit Price incl. VAT
14
NEEDLE-1PC PRESS-IN 1625023
1800840
$104,99 Unit Price incl. VAT
15
BRIDGE-2.5 ADJ;CLR 1625034-AC
1800841
$482,99 Unit Price incl. VAT
16
JAM NUT-2.5 1325445-AC
1800842
$68,24 Unit Price incl. VAT
17
MOUNT-RES 2.5IN (WER-1125335)
1800488
$167,99 Unit Price incl. VAT
18
SCREW-#8 LOW HD 1600025
1800843
$9,44 Unit Price incl. VAT
19
SCREW-1/4-20X.50 1200338
1800754
$6,29 Unit Price incl. VAT
20
SPRING RETAINER; 2.5 IN
1501007
9999999
Not Available
21
PISTON; 2.5 NO BLD (1425128)
1800659
9999999
Not Available
22
ASM-END CAP 2.5 1625028-AC
1800844
$241,49 Unit Price incl. VAT
23
HD SEAL ASSEMBLY; 2.5 IN
1800845
$204,74 Unit Price incl. VAT
24
O-RING
1800497
$10,49 Unit Price incl. VAT
25
WIRE RING 2.48X.062 1525023
1800846
$15,74 Unit Price incl. VAT
26
RETAINING RING; 2.5 IN
1800847
$41,99 Unit Price incl. VAT
27
O-RING
1800502
$3,66 Unit Price incl. VAT
28
O-RING
1800095
$2,09 Unit Price incl. VAT
29
ASM-CHECK VALVE 1145712-4
1800848
$115,49 Unit Price incl. VAT
30
O-RING
1800503
$3,14 Unit Price incl. VAT
31
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
32
O-RING
1800810
$6,81 Unit Price incl. VAT
33
BEARING; HCOM9T-12MM 1600131
1800880
$80,84 Unit Price incl. VAT
34
WIPER
1800506
$83,99 Unit Price incl. VAT
35
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
36
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
37
SHAFT LOOP
1800555
$440,99 Unit Price incl. VAT

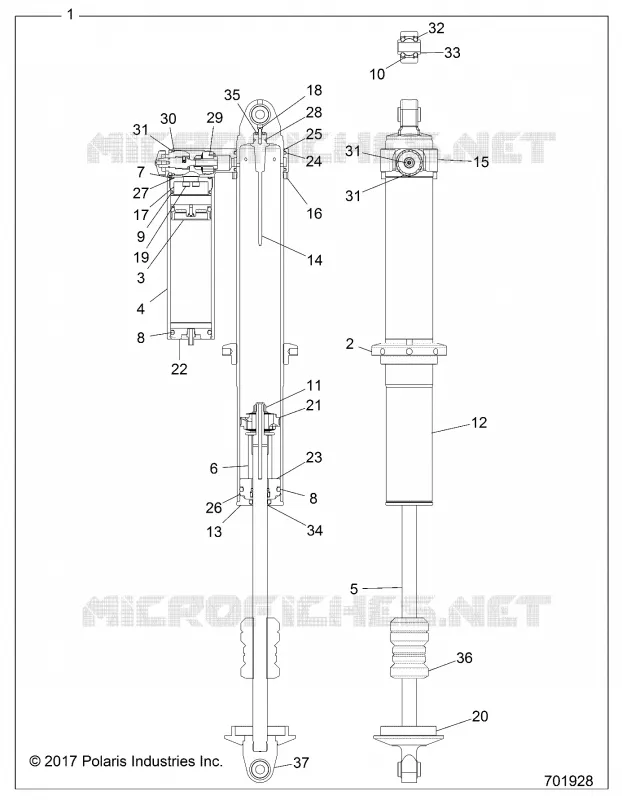

Find the detailed REAR SUSPENSION SHOCK POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
