EXHAUST SYSTEM for POLARIS RZR XP TURBO from 2018

EXHAUST SYSTEM

1

HEADPIPE ASSEMBLY; TURBO

1263081

9999999

Not Available

1

LOCK STUD 8MMX1.25MMX40MM S. STEEL

7520290

$13,64 Unit Price incl. VAT

2

HEX HEAD SCREW W/ LOCK 6MM X 1.0MM X10MM

7520291

$13,64 Unit Price incl. VAT

3

HEAD PIPE HEAT SHIELD; FRONT

5264104

$83,99 Unit Price incl. VAT

4

HEADPIPE HEAT SHIELD; INNER; REAR

5260457

$83,99 Unit Price incl. VAT

5

OXYGEN SENSOR

4016021

$314,99 Unit Price incl. VAT

6

SHIELD-HEAT UPPER

5260459

5266197

$73,49 Unit Price incl. VAT

7

EXHAUST GASKET

5812640

5814964

$104,99 Unit Price incl. VAT

8

EXHAUST GASKET 3 BOLT

5814340

5814963

$13,64 Unit Price incl. VAT

9

HEX HEAD FLANGE SCREW; 6 MM X 16 MM

7518591

$6,29 Unit Price incl. VAT

10

SILENCER ASSEMBLY

1262655

9999999

Not Available

11

SPARK ARRESTOR

1262390

$99,74 Unit Price incl. VAT

12

SHIELD-SILENCER

5262943

9999999

Not Available

13

HEX FLANGE HD SCREW; 6 MM X 12 MM

7517257

$17,84 Unit Price incl. VAT

14

SCR-1/4-20X1/2 TFM HW-M

7518490

$2,09 Unit Price incl. VAT

15

NUT

7547120

$9,44 Unit Price incl. VAT

16

WASHER

7555935

$4,19 Unit Price incl. VAT

17

SHIELD-HEAT OUTLET

5260461

5266199

$73,49 Unit Price incl. VAT

18

SPRING

7041789

$16,79 Unit Price incl. VAT

19

NUT-HXFL-M8X1.25 A493 EM6340

7547803

$7,34 Unit Price incl. VAT

20

ACCESS PANEL SHIELD

5814648

9999999

Not Available

20

SHIELD-ACCESS PANEL

5814082

$83,99 Unit Price incl. VAT

21

SHIELD-BOX FRONT

5814245

$83,99 Unit Price incl. VAT

22

SHIELD-REAR AL

5263026

5268152

$83,99 Unit Price incl. VAT

23

ISOLATOR MOUNT

5450115

$31,49 Unit Price incl. VAT

24

LOACK SCREW; 8 MM X 1.25 MM X 25 MM

7520277

$11,54 Unit Price incl. VAT

25

ACCESS PANEL SHIELD

5262942

$68,24 Unit Price incl. VAT

26

ENGINE SHIELD

5814284

$68,24 Unit Price incl. VAT

27

BOLT M6 X 1.0 X 20

7518529

$2,09 Unit Price incl. VAT

28

SCREW

7512026

$2,09 Unit Price incl. VAT

29

WASHER .281 X 1.00 X 0.51

7556329

$2,09 Unit Price incl. VAT

30

TUFLOK RIVET

7661855

$2,09 Unit Price incl. VAT

31

CABLE TIE STRAP WITH EDGE CLIP

7081808

$10,49 Unit Price incl. VAT

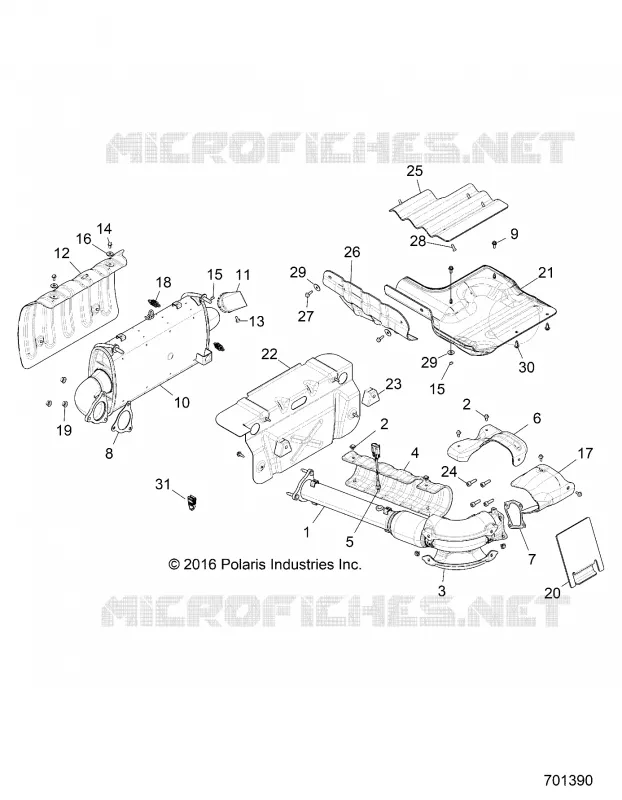

Find the detailed EXHAUST SYSTEM POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
