1
Engine displacement
autre
2
Year
1996
3
Trim
MAGNUM 6X6 - W968744
4
Parts Catalog
DRIVE CLUTCH MAGNUM 6X6
5
Parts Diagram
Parts Catalog
MIDDLE AXLE BRAKE MAGNUM 6X6
by
DRIVEN CLUTCH MAGNUM 6X6
DRIVE CLUTCH MAGNUM 6X6
1
2
3
4
5
6
6
7
8
9
10
10
10
10
10
10
10
10
10
11
12
13
14
1
2
3
4
5
6
6
7
8
9
10
10
10
10
10
10
10
10
10
11
12
13
14
1
2
3
4
5
6
7
8
9
10
11
11
11
11
12
13
13
13
14
1
CLUTCH DRIVE
1321632
1321976
$1 081,49 Unit Price incl. VAT
2
BOLT
7512176
7512163
$7,34 Unit Price incl. VAT
3
SPRING LOCK WASHER
7552801
$3,14 Unit Price incl. VAT
4
BEARING COVER
3576510
$16,79 Unit Price incl. VAT
5
CLUTCH SPRING
7041157
$89,24 Unit Price incl. VAT
6
BUTTON CLUTCH (10)
5431936
5439254
$14,69 Unit Price incl. VAT
7
ROLLER PIN
5020422
$4,19 Unit Price incl. VAT
8
WASHER(10)
5430945
5438247
$3,14 Unit Price incl. VAT
9
ROLLER/BUSHING ASSEMBLY
1321457
$73,49 Unit Price incl. VAT
10
SPACER .020
5210752
$3,14 Unit Price incl. VAT
10
SPACER .050
5210754
$6,29 Unit Price incl. VAT
10
SPACER .032
5210753
$4,19 Unit Price incl. VAT
11
BUSHING MOVEABLE 1/2 INCH
3576504
$41,99 Unit Price incl. VAT
12
FLEXLOC NUT(10)
7541906
$6,29 Unit Price incl. VAT
13
WT SHIFT 10MH(3)
5630513
5632281
$62,99 Unit Price incl. VAT
14
SHOULDER BOLT
7512266
$5,76 Unit Price incl. VAT

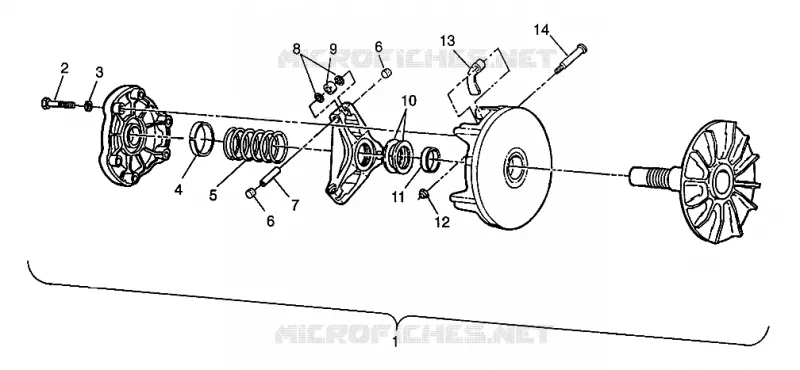

Find the detailed DRIVE CLUTCH MAGNUM 6X6 POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
