1
Engine displacement
autre
2
Year
1996
3
Trim
MAGNUM 6X6 - W968744
4
Parts Catalog
REAR BED MOUNTING MAGNUM 6X6 W968744 AND SWEDISH MAGNUM 6X6 S968744 (4936073607A008)
5
Parts Diagram
Parts Catalog
MAGNETO MAGNUM 6X6 W968744 AND MAGNUM 6X6 SWEDISH S968744 (4936073607E003)
by
DECALS MAGNUM 6X6
REAR BED MOUNTING MAGNUM 6X6 W968744 AND SWEDISH MAGNUM 6X6 S968744 (4936073607A008)
1
2
3
4
5
5
5
5
5
6
7
8
9
10
11
12
13
13
13
14
14
15
15
15
15
16
17
18
19
20
21
21
21
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
1
2
3
4
5
5
5
5
5
6
7
8
9
10
11
12
13
13
13
14
14
15
15
15
15
16
17
18
19
20
21
21
21
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
1
BOLT BLACK
7512282
9999999
Not Available
2
CABLE; TAILGATE
7080496
9999999
Not Available
3
BOLT ;
7512239
7517377
$9,44 Unit Price incl. VAT
4
TAILGATE E.B.GR.
1040283195
Not Available
5
NYLOK NUT
7542122
$2,09 Unit Price incl. VAT
6
WASHER; SPRING
7555824
9999999
Not Available
7
ROD TOP PIVOT Substituted by 5020833
5020839
Not Available
8
HANDLE TAILGATE
5431524
9999999
Not Available
9
SPRING COMP T GATE LATCH
7041302
9999999
Not Available
10
PAD
5810455
$6,29 Unit Price incl. VAT
11
PANEL LH SIDE
1040455195
Not Available
12
BOLT
7512111
9999999
Not Available
13
FLAT WASHER
7558301
$2,09 Unit Price incl. VAT
14
SCREW
7512208
9999999
Not Available
15
COVER BACKREST STL.GRY.
2681664132
Not Available
15
BACKREST ASM STL.GRY. Substituted by 2682346-132
2681658132
Not Available
16
HANDLE GRAB E.B.GREEN
7030011195
Not Available
17
SOCKET BOLT
7512284
$2,09 Unit Price incl. VAT
18
SCREW PAN HD PHILLIPS
7515341
9999999
Not Available
19
LATCH BOX E.B.GR.
1040192195
Not Available
20
DECAL(CPSC) WARN RIDER [No Longer Available]
7072766
Not Available
21
NYLOK NUT
7542324
$1,56 Unit Price incl. VAT
22
REFLECTOR ASSEMBLY; RED
2670133
9999999
Not Available
23
WASHER
7555776
7558301
$2,09 Unit Price incl. VAT
24
NUT HEX-LOCK(10)
7542101
$7,34 Unit Price incl. VAT
25
ROD PIVOT
5020662
9999999
Not Available
26
SCREW
7515314
9999999
Not Available
27
SCREW
7517242
9999999
Not Available
28
Bracket Taillight Black
5240244067
Not Available
29
BEDWELDE.B.GR.
1040280195
Not Available
30
HEX NUT
7542105
$7,34 Unit Price incl. VAT
31
U-BOLT(10)
7515137
9999999
Not Available
32
BOLT
7512130
$7,34 Unit Price incl. VAT
33
BOLT
7512113
$7,34 Unit Price incl. VAT
34
PANEL RH SIDE E.B.GREEN
1040456195
Not Available
35
SPACER
5333170
9999999
Not Available
36
BOLT
7512392
$9,44 Unit Price incl. VAT
37
DUMP BOX SHOCK
7041301
9999999
Not Available
38
BOLT
7515306
9999999
Not Available
39
NUT FLANGE LOCK
7542449
$7,34 Unit Price incl. VAT
40
SCREW
7512492
$2,09 Unit Price incl. VAT

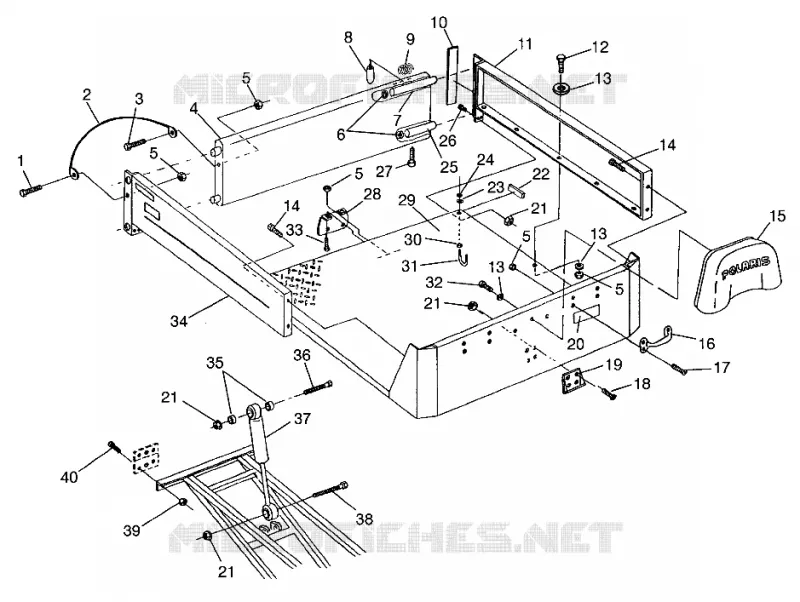

Find the detailed REAR BED MOUNTING MAGNUM 6X6 W968744 AND SWEDISH MAGNUM 6X6 S968744 (4936073607A008) POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
