Parts Catalog
WISHBONES Magnum 6X6
5
Parts Diagram
Parts Catalog
STEERING POST MAGNUM 6X6
by
CONTROLS
WISHBONES Magnum 6X6
1
2
3
4
5
6
7
8
9
10
11
12
13
13
14
15
16
17
18
19
19
19
19
20
21
21
21
21
22
23
24
24
25
25
26
26
27
27
28
29
1
2
3
4
5
6
7
8
9
10
11
12
13
13
14
15
16
17
18
19
19
19
19
20
21
21
21
21
22
23
24
24
25
25
26
26
27
27
28
29
1
NUT LOCK
7542403
9999999
Not Available
2
BUSHING
5333367
9999999
Not Available
3
SEAL BOOT ROD END ASSEMBLY
1822179
9999999
Not Available
4
ROD END SEAL BOOT
5410540
9999999
Not Available
5
ROD END; RH
7060149
9999999
Not Available
6
NUT HEX RH(10)
7542401
$4,19 Unit Price incl. VAT
7
TIE ROD
5020768
9999999
Not Available
8
NUT LH 10 MM.
7546902
9999999
Not Available
9
ROD END; LEFT; 10 MM
7060171
$115,49 Unit Price incl. VAT
10
TIE ROD ASM.
1822202
2201741
$309,74 Unit Price incl. VAT
11
FLAT WASHER
7555806
$1,56 Unit Price incl. VAT
12
NUT CASTLE(10)
7546904
9999999
Not Available
13
COTTER PIN
7661203
$2,09 Unit Price incl. VAT
14
BALL JOINT
7080364
7061306
$52,49 Unit Price incl. VAT
15
BALL JOINT BRACKET
5211121
$62,99 Unit Price incl. VAT
16
SOCKET BOLT
7512284
$2,09 Unit Price incl. VAT
17
BOOT; RUBBER
5410548
5412658
$9,44 Unit Price incl. VAT
18
CASTLE NUT
7542438
$3,14 Unit Price incl. VAT
19
SHIELD RH CV JOINT
5431149
9999999
Not Available
19
SHIELD LH CV JOINT
5431150
9999999
Not Available
20
SCREW
7512084
$2,09 Unit Price incl. VAT
21
KIT A-FRAME LH
2200627
9999999
Not Available
21
KIT A-FRAME RH
2200628
9999999
Not Available
22
FITTING LUBRICATION THREADED(1
7080433
$2,09 Unit Price incl. VAT
23
SHAFT; A-ARM
5020681
5133806
$52,49 Unit Price incl. VAT
24
A-ARM SPACER BUSHING
5020677
$19,94 Unit Price incl. VAT
25
BUSHING A-ARM LONG.
5431596
5436973
$9,44 Unit Price incl. VAT
26
BOLT(10)
7515458
7512492
$2,09 Unit Price incl. VAT
27
SPRING LOCK WASHER
7552603
$1,56 Unit Price incl. VAT
28
SCREW
7515415
9999999
Not Available
29
SCREW
7515554
9999999
Not Available

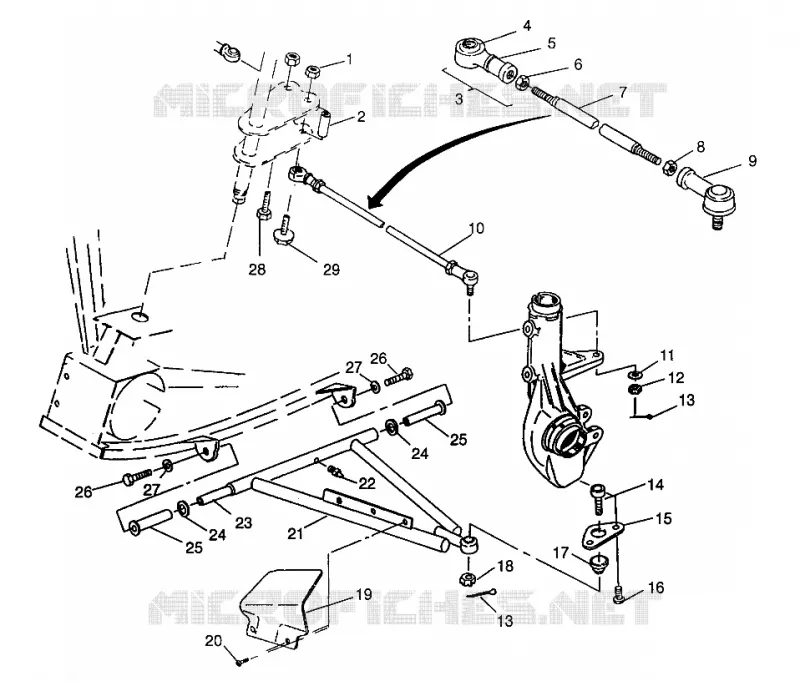

Find the detailed WISHBONES Magnum 6X6 POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
