1
Engine displacement
700
2
Year
1997
3
Trim
700 SKS - 0970566
4
Parts Catalog

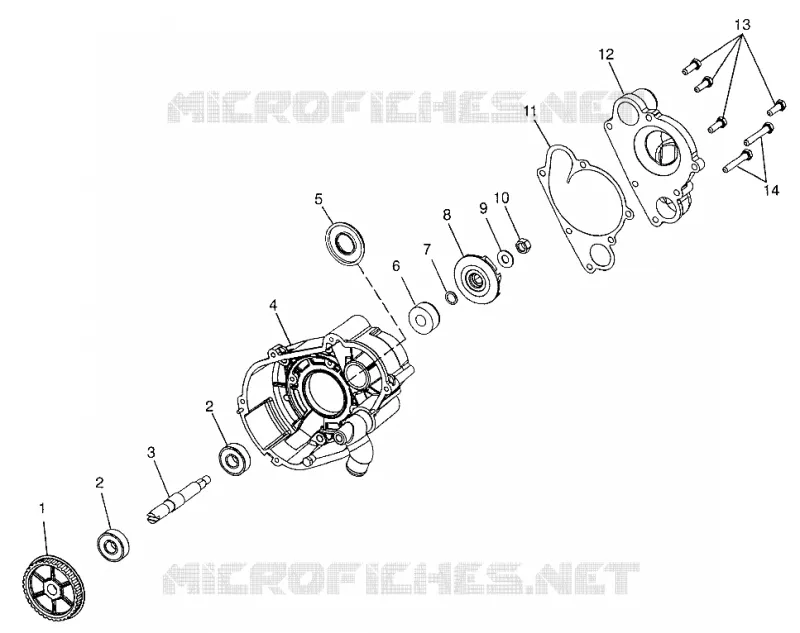

WATER PUMP 700 RMK 0970966, 700 SKS 0970566, AND EUROPEAN 700 SKS E970566 (4938573857C008)
5
Parts Diagram
Parts Catalog
CYLINDER 700 RMK 0970966, 700 SKS 0970566, AND EUROPEAN 700 SKS E970566 (4938573857C007)
by
PISTON CRANKSHAFT 700 RMK 0970966, 700 SKS 0970566 AND EUROPEAN 700 SKS (4938573857C009)
WATER PUMP 700 RMK 0970966, 700 SKS 0970566, AND EUROPEAN 700 SKS E970566 (4938573857C008)
1
PULLEY WATERPUMP DRIVEN
3040158
9999999
Not Available
2
BEARING BALL SLD.DGRV.
3584008
9999999
Not Available
3
SHAFT WATERPUMP
5131283
9999999
Not Available
4
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
5
SEAL
3610044
9999999
Not Available
6
WATERPUMP SEAL
3610050
9999999
Not Available
7
WASHER FLAT SS.
7556006
9999999
Not Available
8
IMPELLER
5432330
9999999
Not Available
9
FLAT WASHER; SS
7555874
$4,19 Unit Price incl. VAT
10
HEX NUT; NYLOK
7546804
$2,09 Unit Price incl. VAT
11
WATERPUMP COVER GASKET
5811279
9999999
Not Available
12
COVER WATERPUMP
5630613
9999999
Not Available
13
SCREW M6 X 1.0; L-20MM
7516822
$4,19 Unit Price incl. VAT
14
SCREW
7516818
$10,49 Unit Price incl. VAT

Find the detailed WATER PUMP 700 RMK 0970966, 700 SKS 0970566, AND EUROPEAN 700 SKS E970566 (4938573857C008) POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
