1
Engine displacement
700
2
Year
1997
3
Trim
700 SKS - 0970566
4
Parts Catalog
FRONT SUSPENSION AND SKI 700 RMK 0970966, 700 SKS 0970566, AND EUROPEAN 700 (4938573857B001)
5
Parts Diagram
Parts Catalog
MASTER CYLINDER
by
SKI 700 RMK 0970966, 700 SKS 0970566, AND EUROPEAN 700 SKS E970566 (4938573857B003)
FRONT SUSPENSION AND SKI 700 RMK 0970966, 700 SKS 0970566, AND EUROPEAN 700 (4938573857B001)
1
BRACE FR.BULKH. BLK Substituted by 5242112-067
5241641067
Not Available
2
STRAP SPACER BOTTOM
5211345
9999999
Not Available
3
NUT FLEXOC;
7542703
9999999
Not Available
4
THRUST WASHER
7558702
$3,14 Unit Price incl. VAT
5
BOLT(10)
7515515
9999999
Not Available
6
BOLT
7512551
9999999
Not Available
7
NUT; NYLOC
7542453
7542439
$2,09 Unit Price incl. VAT
8
BAR SWAY BLK
5224742067
Not Available
8
BAR SWAY
5224757067
Not Available
9
BUSHING; SWAY BAR
5432412
9999999
Not Available
9
SWAY BAR BUSHING
5432038
9999999
Not Available
10
RIVET(50)
7661643
7661130
$2,09 Unit Price incl. VAT
11
BOLT
7515491
7515433
$3,14 Unit Price incl. VAT
12
ARM RH STRG BLK.
5241661067
Not Available
12
ARM LH STRG BLK.
5241660067
Not Available
13
NUT; FLEXLOC B
7542456
9999999
Not Available
14
WASHER
7555721
$2,09 Unit Price incl. VAT
15
BUSHING TUBE
5010310
9999999
Not Available
16
RUBBER PIVOT
5410872
9999999
Not Available
17
BOLT
7512557
9999999
Not Available
18
ARM TRLG RH
1822450
9999999
Not Available
18
ARM;TRLG;LH
1822449
9999999
Not Available
19
SWAYBAR SLIDE; 5/8
5432331
9999999
Not Available
19
SWAYBAR SLIDE; 9/16
5432332
9999999
Not Available
20
WASHER
7555851
7555832
$4,19 Unit Price incl. VAT
21
STOP RH STRG BLK.
5241778067
Not Available
21
STOP LH STRG BLK
5241777067
Not Available
22
FLANGE BUSHING
3573909
$4,19 Unit Price incl. VAT
23
BUSHING
7556509
$3,14 Unit Price incl. VAT
24
FLANGED BUSHING
3574208
$6,29 Unit Price incl. VAT
25
SPINDLE SHAFT; MEDIUM GLOSS BLACK
6230102067
Not Available
26
FITTING LUBE.W/BALL CK.(10)
7080306
$5,76 Unit Price incl. VAT
27
BUSHING PIVOT
5010158
$27,29 Unit Price incl. VAT
28
FITTING LUBRICATION THREADED(1
7080433
$2,09 Unit Price incl. VAT
29
RETAINER SPRING BODY THREADED
1500063
9999999
Not Available
30
ADJUSTABLE PRELOAD SPRING RING
5431734
$104,99 Unit Price incl. VAT
31
SPRING-COMP IFS 10.75/100 BLK
7041551067
Not Available
32
RETAINER SPRING SLOTTED CAST
5630580
5020618
$36,74 Unit Price incl. VAT
33
SHOCK GAS IFS (XLT SKS)
7041538
Not Available
33
SHOCK GAS IFS
7041543
9999999
Not Available
34
RADIUS ROD BUSHING
5010127
$12,59 Unit Price incl. VAT
35
BUSH; RADIUS ROD PIVOT; OUT
5431486
9999999
Not Available
36
ROD RAD LOWER BLK
1822377067
Not Available
36
RADIUS ROD; LOWER; MEDIUM GLOSS BLACK
1822444067
Not Available
37
NUT-JAM(10)
7542711
$4,19 Unit Price incl. VAT
38
ROD END;RH
7060156
7061071
$99,74 Unit Price incl. VAT
38
ROD END;1/2 LINED
7061011
7061071
$99,74 Unit Price incl. VAT
39
BOLT
7512678
$36,74 Unit Price incl. VAT
40
RIVET
7621452
9999999
Not Available
41
BRACE PAN
5223997067
Not Available
42
NUT FLEXLOCK
7542503
9999999
Not Available
43
ROD END; RH
7060155
9999999
Not Available
43
ROD END 7/16 LINED
7061010
9999999
Not Available
44
NUT JAM(10)
7542520
9999999
Not Available
45
RODRADUPPERBLK
1822375067
Not Available
45
ROD RAD UPPER BLK
1822446067
Not Available

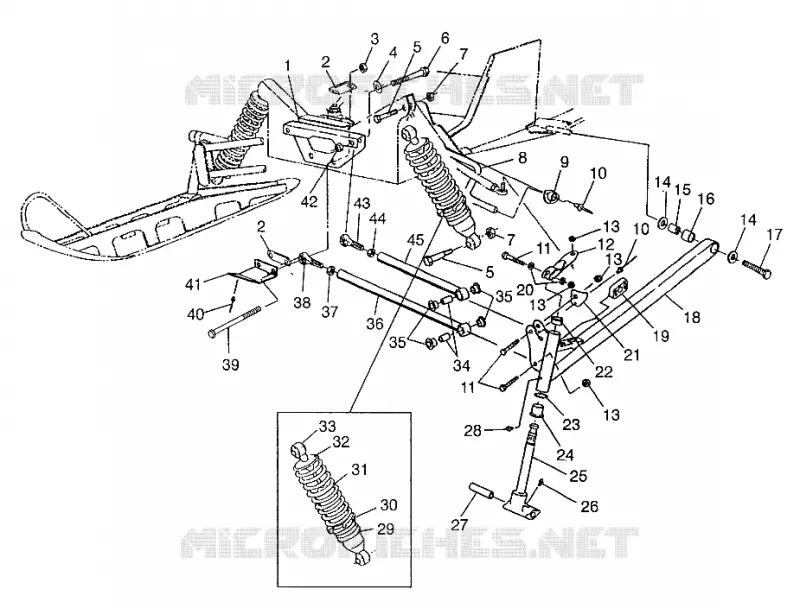

Find the detailed FRONT SUSPENSION AND SKI 700 RMK 0970966, 700 SKS 0970566, AND EUROPEAN 700 (4938573857B001) POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
