1
Engine displacement
700
2
Year
1997
3
Trim
700 SKS - 0970566
4
Parts Catalog

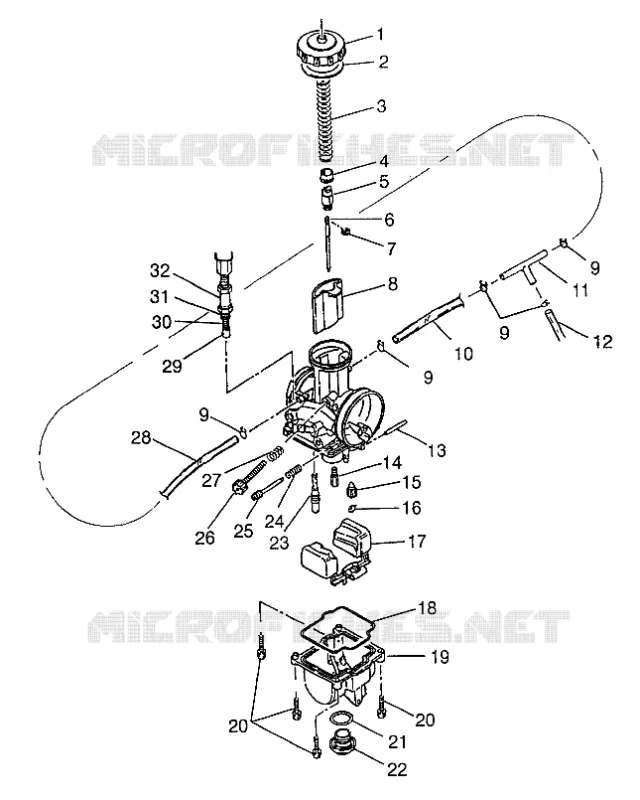

CARBURETOR 700 RMK 0970966, 700 SKS 0970566, AND EUROPEAN 700 SKS E970566 (4938573857C010)
5
Parts Diagram
Parts Catalog
PISTON CRANKSHAFT 700 RMK 0970966, 700 SKS 0970566 AND EUROPEAN 700 SKS (4938573857C009)
by
TUNNEL
CARBURETOR 700 RMK 0970966, 700 SKS 0970566, AND EUROPEAN 700 SKS E970566 (4938573857C010)
-
CARBURETOR ASM. (RMK) (Incl. 1-32)
1253187
Not Available
-
CARBURETOR ASM.
1253145
1253199
Not Available
1
TOP ASM CARB.
3050224
9999999
Not Available
2
GASKET
3050225
9999999
Not Available
3
SPRING THROTTLE
3050228
9999999
Not Available
4
COLLAR
3050238
9999999
Not Available
5
HOLDER CABLE
3050223
9999999
Not Available
6
JET NEEDLE (R-1370J)
3050221
9999999
Not Available
6
JET NEEDLE (R-1370G)
3050220
9999999
Not Available
7
CLIP JET NEEDLE (10)
3050222
9999999
Not Available
8
VALVE THROTTLE KHN. (RMK)
3050234D02
Not Available
8
VALVE THROTTLE KHN.
3050234K02
Not Available
9
CLIP
3050233
9999999
Not Available
10
PIPE BOWL VENT
3050242
9999999
Not Available
11
T-JOINT
3050243
9999999
Not Available
12
VENT BOWL (SHORT)
3050248
Not Available
13
FLOAT PIN
3050232
9999999
Not Available
14
MAIN JETKHN.
3050235158
Not Available
14
MAIN JETKHN.
3050235185
Not Available
15
FLOAT VALVE
3050218
9999999
Not Available
16
CLIP FLOAT VALVE
3050229
9999999
Not Available
17
FLOATKHN.
3050213
9999999
Not Available
18
FLOAT BOWL GASKET
3050215
9999999
Not Available
19
BOWL FLOAT CARB.
3050214
Not Available
20
SCREW FLOAT BOWL (10)
3050230
9999999
Not Available
21
PLUG SCREW O-RING
3050217
9999999
Not Available
22
PLUG SCREW
3050216
9999999
Not Available
23
PILOT JET
305021940
Not Available
23
PILOT JET KHN. (#55) (RMK)
305021955
Not Available
24
SPRING
3050227
9999999
Not Available
25
SCREW AIR ADJUST
3050226
9999999
Not Available
26
ADJUSTER IDLE
3050236
9999999
Not Available
27
SPRING
3050237
9999999
Not Available
28
PIPE BOWL VENT
3050231
9999999
Not Available
29
STARTER VALVE
3050212
9999999
Not Available
30
SPRING
3050240
9999999
Not Available
31
O-RING
3050241
9999999
Not Available
32
CAP STARTER
3050239
Not Available

Find the detailed CARBURETOR 700 RMK 0970966, 700 SKS 0970566, AND EUROPEAN 700 SKS E970566 (4938573857C010) POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
