1
Engine displacement
500
2
Year
2002
3
Trim
500 MAGNUM VL HDS - A02CD50FB
4
Parts Catalog
CARBURETOR
5
Parts Diagram
Parts Catalog
CYLINDER
by
INLET EXHAUST
CARBURETOR
1
2
3
4
5
6
7
8
9
10
11
12
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
1
2
3
4
5
6
7
8
9
10
11
12
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
1
2
3
4
5
6
7
8
9
10
11
12
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
1
2
2
2
2
3
4
5
6
7
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
29
30
31
32
33
34
35
1
2
2
2
2
3
4
5
6
7
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
29
30
31
32
33
34
35
1
RING
3130507
$10,49 Unit Price incl. VAT
2
E-RING
3130508
$12,59 Unit Price incl. VAT
3
NEEDLE JET
3130962
9999999
Not Available
4
RING
3130752
$10,49 Unit Price incl. VAT
5
DIAPHRAGM ASSEMBLY
3130732
$246,74 Unit Price incl. VAT
6
NEEDLE JET
3130960
9999999
Not Available
7
SCREW
3130541
9999999
Not Available
8
WASHER SPRING
3130540
9999999
Not Available
9
JETBLOCK ASSEMBLY
3130504
$120,74 Unit Price incl. VAT
10
WASHER
3130014
$3,14 Unit Price incl. VAT
11
MAIN JET; #157.5
3130572
9999999
Not Available
12
SEAL
3130515
9999999
Not Available
13
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
14
E-RING
3130518
9999999
Not Available
15
CAP
3130519
9999999
Not Available
16
FLOAT PIN
3130361
$18,89 Unit Price incl. VAT
17
PLATE SPACER BRACKET; UPPER; MATTE BLACK
3130594
9999999
Not Available
18
O-RING
3130532
$57,74 Unit Price incl. VAT
19
SCREW
3130520
$3,14 Unit Price incl. VAT
20
FLOATBODY ASSEMBLY
3130590
$204,74 Unit Price incl. VAT
21
SCREW
3130521
$18,89 Unit Price incl. VAT
22
FLOAT ASSEMBLY
3130529
$157,49 Unit Price incl. VAT
23
SCREW
3130591
$7,34 Unit Price incl. VAT
24
NEEDLE VALVE; 1.5
3131360
$99,74 Unit Price incl. VAT
25
O-RING
3130533
$10,49 Unit Price incl. VAT
26
JET PILOT #40
3130624
$52,49 Unit Price incl. VAT
27
O-RING
3130522
$10,49 Unit Price incl. VAT
28
WASHER LOCK
3130523
$4,19 Unit Price incl. VAT
29
SPRING
3130525
9999999
Not Available
30
ADJUSTER
3130524
$41,99 Unit Price incl. VAT
31
ADJUSTER SCREW
3130546
9999999
Not Available
32
RING
3130545
9999999
Not Available
33
SPRING
3130544
9999999
Not Available
34
VALVE THROTTLE 100
3130502
$99,74 Unit Price incl. VAT
35
SPRING
3130589
9999999
Not Available
36
RING
3130514
9999999
Not Available
37
SCREW
3130501
9999999
Not Available
38
SHAFT ASM;THROTTLE
3130513
9999999
Not Available
39
GUIDE CABLE
3130543
$62,99 Unit Price incl. VAT
40
SCREW
3130535
$13,64 Unit Price incl. VAT
41
COVER
3130511
$83,99 Unit Price incl. VAT
42
O-RING
3130512
9999999
Not Available
43
GUIDE HOLDER
3130199
$52,49 Unit Price incl. VAT
44
SPRING
3130538
9999999
Not Available
45
PLUNGER ASM.
3130593
3130539
$73,49 Unit Price incl. VAT
46
AIR PILOT JET
3130625
$27,29 Unit Price incl. VAT
47
CARBURATOR ASM.
3131199
9999999
Not Available
48
SCREW AND WASHER
3084205
9999999
Not Available
49
SPRING
3130505
$52,49 Unit Price incl. VAT
50
COVER ASSEMBLY
3130503
$125,99 Unit Price incl. VAT
51
SCREW
3130592
3130924
$3,14 Unit Price incl. VAT

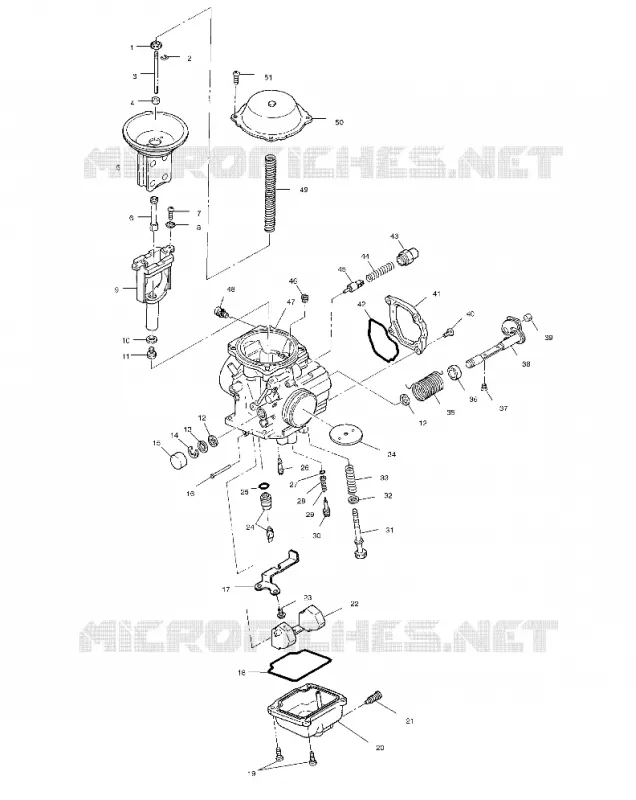

Find the detailed CARBURETOR POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
