Engine displacement
500
2
Year
2002
3
Trim
500 MAGNUM VL HDS - A02CD50FB
4
Parts Catalog
DRIVE SHAFT
5
Parts Diagram
Parts Catalog
STARTING MOTOR
by
FRONT STRUT
DRIVE SHAFT
-
-
1
2
3
4
5
6
7
8
9
10
10
11
12
13
-
-
1
2
3
4
5
6
7
8
9
10
10
11
12
13
-
-
1
2
3
4
5
6
7
8
9
10
10
11
12
13
-
DRIVESHAFT VISCO RH
1380149
9999999
Not Available
-
DRIVESHAFT VISCO LH
1380148
9999999
Not Available
1
CV JOINT
1350063
9999999
Not Available
2
CLAMP-LARGE 76.5 MM
1350062
9999999
Not Available
3
GREASE 30G BTB
1350046
9999999
Not Available
4
BOOT
3260114
9999999
Not Available
5
CLAMP 25.0 MM
1350061
9999999
Not Available
6
CLAMP-SMALL 23.0 MM
1350057
9999999
Not Available
7
BOOT
1350058
9999999
Not Available
8
GREASE
1350059
9999999
Not Available
9
CLAMP-LARGE 66.5 MM
1350060
9999999
Not Available
10
PLUNGING-JOINT;LONG
1350056
9999999
Not Available
10
PLUNGING-JOINT SHORT
1350055
9999999
Not Available
11
SPRING-RING
1350054
9999999
Not Available
12
BOOT KIT(GEAR SIDE)
2201972
9999999
Not Available
13
BOOT KIT; CV OUTER
2201630
9999999
Not Available

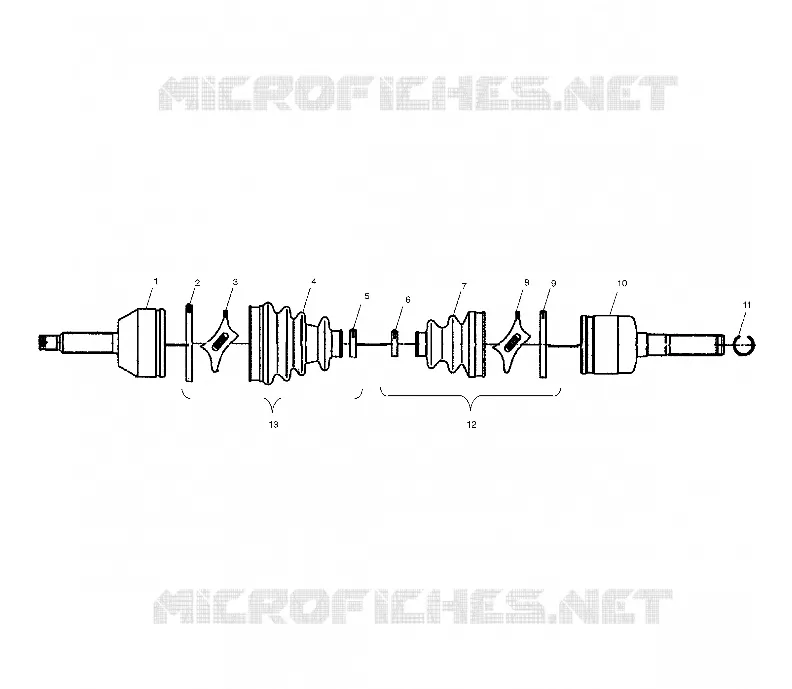

Find the detailed DRIVE SHAFT POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.
