1
RIVET
7661645
9999999
Not Available
2
SCREW(10)
7511930
$4,19 Unit Price incl. VAT
3
WASHER
7555792
$9,44 Unit Price incl. VAT
4
FOIL REAR
5811107
9999999
Not Available
5
GROMMET
5411042
5412507
$12,59 Unit Price incl. VAT
6
CAB-REAR GEN 4 GUNMETAL
5432117317
Not Available
7
NUT NYLOK 10-24 Y
7541925
$1,56 Unit Price incl. VAT
8
RETAINER SEAT LATCH
5224592
9999999
Not Available
9
DECAL CARB/FILTER INFO
7079902
9999999
Not Available
10
FOIL TAPE 3 X 12
5811308
9999999
Not Available
11
SCREW
7512242
$4,19 Unit Price incl. VAT
12
FLAT WASHER
7555859
$2,09 Unit Price incl. VAT
13
SCREW
7512085
9999999
Not Available
14
TOOLBOX
5431786
9999999
Not Available
15
BLIND RIVET
7621403
$2,09 Unit Price incl. VAT
16
BRACKET; LEVER RETAINER
5211033
9999999
Not Available
17
SEAT LATCH
1040387
9999999
Not Available
18
SPRING LATCH
7041370
$17,84 Unit Price incl. VAT
19
SEAT BLK
2682441070
Not Available
19
FOIL SEATBASE LG.
5811104
9999999
Not Available
19
COVERING-SEAT BLK-
2682958070
Not Available
19
FOIL SEATBASE SM.
5811105
9999999
Not Available
20
BUMPER SHORT RUBBER
5412067
$7,34 Unit Price incl. VAT
21
SCREW
7517375
7517312
$2,09 Unit Price incl. VAT
22
WASHER
7555748
$9,44 Unit Price incl. VAT
23
COVER TOOLBOX
5431787
9999999
Not Available
24
CAP DRAIN (10)
5410896
9999999
Not Available
25
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
26
SPRING LOCK WASHER
7552603
$1,56 Unit Price incl. VAT
27
SCREW
7512492
$2,09 Unit Price incl. VAT
28
GUARD-ROCK
5433435
9999999
Not Available
29
SKID PLATE WASHER
7556065
$8,39 Unit Price incl. VAT
30
SCREW
7517386
$2,09 Unit Price incl. VAT
31
FLAT WASHER
7558301
$2,09 Unit Price incl. VAT
32
BOLT
7512232
$2,09 Unit Price incl. VAT
33
NYLOK NUT
7542122
$2,09 Unit Price incl. VAT
34
MOUNT; RUBBER
5411548
9999999
Not Available
35
SCREW
7517264
9999999
Not Available
36
WELD-MAIN FRAME 4X4 MAGBLK
1013597067
Not Available
36
FRAMEMAIN 4X4 MAGBLK
1013263067
Not Available
37
FOOTWELL-PP LH BLK
5432623070
Not Available
37
FOOTWELL; RIGHT SIDE; GLOSS BLACK
5433219070
Not Available
38
FOIL
5811111
9999999
Not Available
39
FOIL FRONT
5811106
9999999
Not Available
40
FOIL (6X1)
5811087
9999999
Not Available
41
SPEED NUT
7670057
$2,09 Unit Price incl. VAT
42
KIT-MUDSKIRT FULLSET GEN IV [Item NotAvailable]
2873213
Not Available
42
MUD GUARD REAR RIGHT GLOSS BLACK
5431797070
Not Available
42
WASHER NYLON
7555916
$3,14 Unit Price incl. VAT
42
MUD GUARD REAR LEFT GLOSS BLACK
5431796070
Not Available

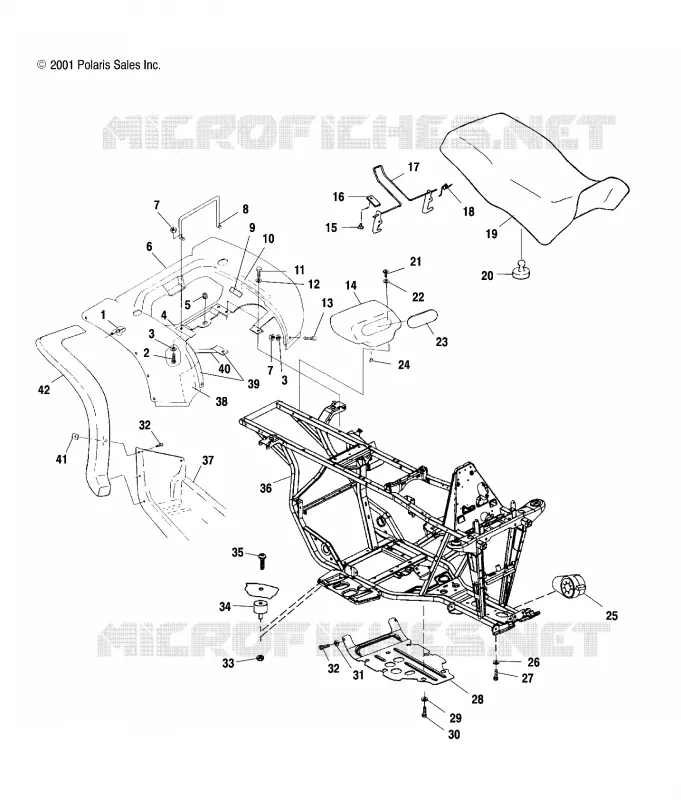

Find the detailed REAR CAB SEAT POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
