1
Engine displacement
500
2
Year
1999
3
Trim
SPORTSMAN 500 - A99CH50AB
4
Parts Catalog
ENGINE MOUNTING
5
Parts Diagram
Parts Catalog
REAR RACK MOUNTING
by
EXHAUST SYSTEM
ENGINE MOUNTING
1
NYLOK NUT
7546601
$2,09 Unit Price incl. VAT
2
HOSE CLAMP
7080003
$2,09 Unit Price incl. VAT
3
HOSE (.25 IDX1.75LG.)
5811490
9999999
Not Available
4
FUEL LINE; 600 CM
8450040600
Not Available
5
DESC NOT_AVAILABLE
845008346
Not Available
6
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
7
CLAMP BAND; NARROW
7080413
$5,76 Unit Price incl. VAT
8
BOOT CARB
5410995
9999999
Not Available
9
NARROW BAND CLAMP
7080511
$9,44 Unit Price incl. VAT
10
FUEL LINE; 1/4 ID
84500031525
Not Available
11
FITTING TEE
7052075
$17,84 Unit Price incl. VAT
12
MOUNT; RUBBER
3110032
9999999
Not Available
13
WASHER
7552605
9999999
Not Available
14
HEX NUT
7542105
$7,34 Unit Price incl. VAT
15
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
16
STRAP CARB.MT BLK.
5211626067
Not Available
17
BOLT
7512315
$9,44 Unit Price incl. VAT
18
SPRING LOCK WASHER
7552901
$2,09 Unit Price incl. VAT
19
NUT LOCK
7542403
9999999
Not Available
20
CLAMP HOSE SPRING
7080694
$10,49 Unit Price incl. VAT
21
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
22
FLAT WASHER
7555815
$7,34 Unit Price incl. VAT
23
MOUNT RUBBER FRONT
3110046
9999999
Not Available
24
CLAMP NYLON CABLE
7080539
$9,44 Unit Price incl. VAT
25
RIVET
7621462
$2,09 Unit Price incl. VAT
26
FRAME SUPPORT STRAP; MEDIUM GLOSS BLACK
5224658067
Not Available
27
BOLT
7512566
9999999
Not Available
28
WASHER LOCK
7575202
$9,44 Unit Price incl. VAT
29
WASHER
5210748
$7,34 Unit Price incl. VAT
30
BUSHING
5430261
$13,64 Unit Price incl. VAT
31
CLUTCH INTAKE BOOT
5410421
9999999
Not Available
32
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
33
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
34
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
35
HOSE CLAMP
7080474
$13,64 Unit Price incl. VAT
36
SCREW
7515417
9999999
Not Available
37
MOUNT FR.ENGINE BLK.
5241150067
Not Available
38
MOUNT RUBBER TOP
3110044
3024012
$83,99 Unit Price incl. VAT
39
WASHER
7555801
$7,34 Unit Price incl. VAT
40
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
41
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
42
MANIFOLD BLK
1260771029
Not Available
43
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
44
ENG.(S.B.)EH50PLE-01
3085556
9990000
Not Available
45
MOUNT ENG TOP BLK
5241453067
Not Available
46
CABLE GND-ENGINE
4010132
9999999
Not Available
47
SMALL IN-LINE FILTER
2530009
$12,59 Unit Price incl. VAT

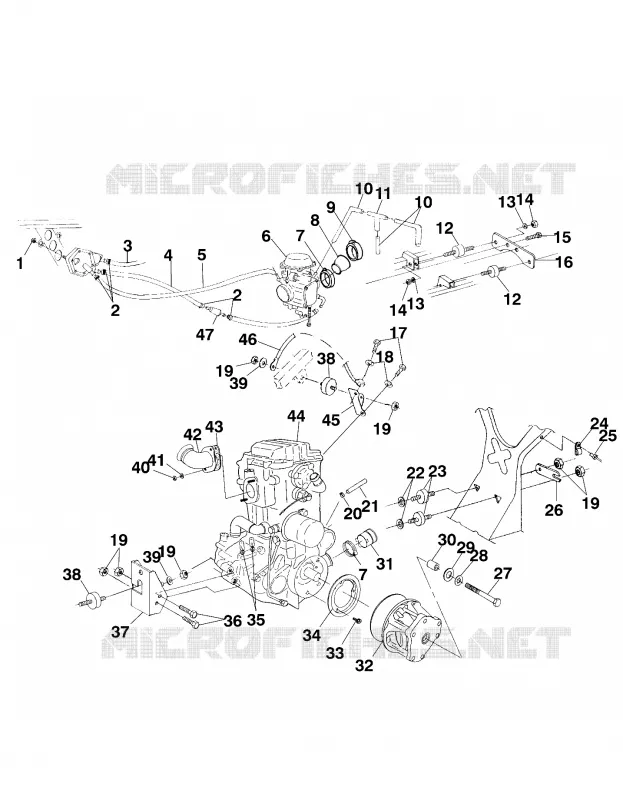

Find the detailed ENGINE MOUNTING POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
