1
Engine displacement
500
2
Year
1999
3
Trim
SPORTSMAN 500 - A99CH50AB
4
Parts Catalog
CLUTCH COVER
5
Parts Diagram
Parts Catalog
DRIVEN CLUTCH
by
ELECTRICAL/TAILLIGHT
CLUTCH COVER
1
BRKTR.CLUTCH CVRBLK.
1040519067
Not Available
2
BOLT
7512240
9999999
Not Available
3
COVER CASE SEAL
5410489
9999999
Not Available
4
CLUTCH COVER KIT; INNER
2201160
9999999
Not Available
5
WASHER
7555748
$9,44 Unit Price incl. VAT
6
WASHER
7552605
9999999
Not Available
7
BOLT
7512247
9999999
Not Available
8
BOLT
7512277
$9,44 Unit Price incl. VAT
9
BOLT
7512278
9999999
Not Available
10
CLUTCH COVER SEAL OUTER
5521301
5526452
$58,58 Unit Price incl. VAT
11
COVER CLUTCH OUTER HV
5432849
9999999
Not Available
12
CLUTCH COVER CLIP
7670051
9999999
Not Available
13
SCREW #14 X 1-3/4(10)
7512093
$2,09 Unit Price incl. VAT
14
DECAL CLUTCH COVER
7074946
9999999
Not Available
15
DECAL ENG/CLUTCH MOD. Substituted by 7078689 (If built before 10/04/99)
7077377
Not Available
16
DECALAUTO./EBS CLUTCH
7077666
9999999
Not Available
17
SCREW
7512094
$3,14 Unit Price incl. VAT
18
BOOT DUCT HI-FLOW
5411489
9999999
Not Available
19
TIE CABLE; 14 IN
7080761
$5,24 Unit Price incl. VAT
20
BOLT
7512232
$2,09 Unit Price incl. VAT
21
DUCT CLUTCH OUTLET 16.6
5432947
9999999
Not Available
22
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
23
BRKT RETAINER SEAL BLK.
5240409067
Not Available
24
SEAL COVER CASE
5410575
9999999
Not Available
25
SCREW
7512095
$9,44 Unit Price incl. VAT
26
BRKT-CLUTCH COVER BLK
5241156067
Not Available
27
WASHER
7555935
$4,19 Unit Price incl. VAT
28
NARROW BAND CLAMP
7080511
$9,44 Unit Price incl. VAT
29
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available

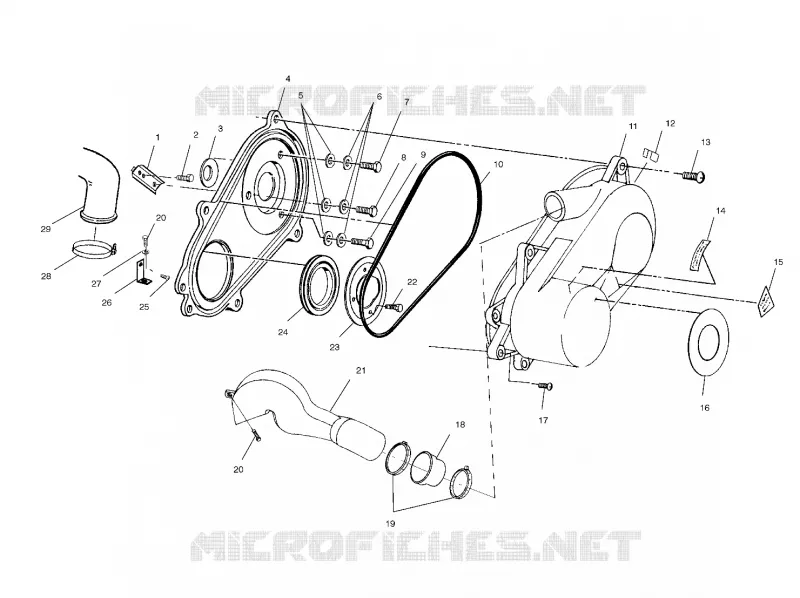

Find the detailed CLUTCH COVER POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
