1
Engine displacement
500
2
Year
1999
3
Trim
SPORTSMAN 500 - A99CH50AB
4
Parts Catalog
FUEL TANK
5
Parts Diagram
Parts Catalog
EXHAUST SYSTEM
by
AIR BOX
FUEL TANK
1
GAS CAP; BLACK
5430725
9999999
Not Available
2
GAS CAP GASKET
5810144
9999999
Not Available
3
SEAL-FOAM 21 IN
5811310
9999999
Not Available
4
LINE FUEL 1/8 ID 600 CM.
8360009600
Not Available
5
TANK VENT
5431053
9999999
Not Available
6
BOLT
7517451
$10,49 Unit Price incl. VAT
7
SPRING LOCK WASHER
7552801
$3,14 Unit Price incl. VAT
8
FLAT WASHER
7558301
$2,09 Unit Price incl. VAT
9
BRKT RH.R.FUELCOVER BLK.
5222155067
Not Available
9
BRKT LH.R.FUELCOVER BLK.
5222154067
Not Available
10
SPACER
5332457
9999999
Not Available
11
INSERT
7542143
$10,49 Unit Price incl. VAT
12
PAD
5810317
9999999
Not Available
13
FITTING FUEL OUT MAIN 4 Y
7052150
$52,49 Unit Price incl. VAT
14
FUEL LINE; 600 CM
8450040600
Not Available
15
HOSE CLAMP
7080003
$2,09 Unit Price incl. VAT
16
FITTING FUEL OUT RES. Z
7052149
9999999
Not Available
17
SCREW
7517505
$3,14 Unit Price incl. VAT
18
FUEL VALVE KNOB
5432559
9999999
Not Available
19
FUEL VALVE NUT
5432733
9999999
Not Available
20
3-WAY VALVE
7052161
$83,99 Unit Price incl. VAT
21
TANK ASMFUEL
2520144
9999999
Not Available

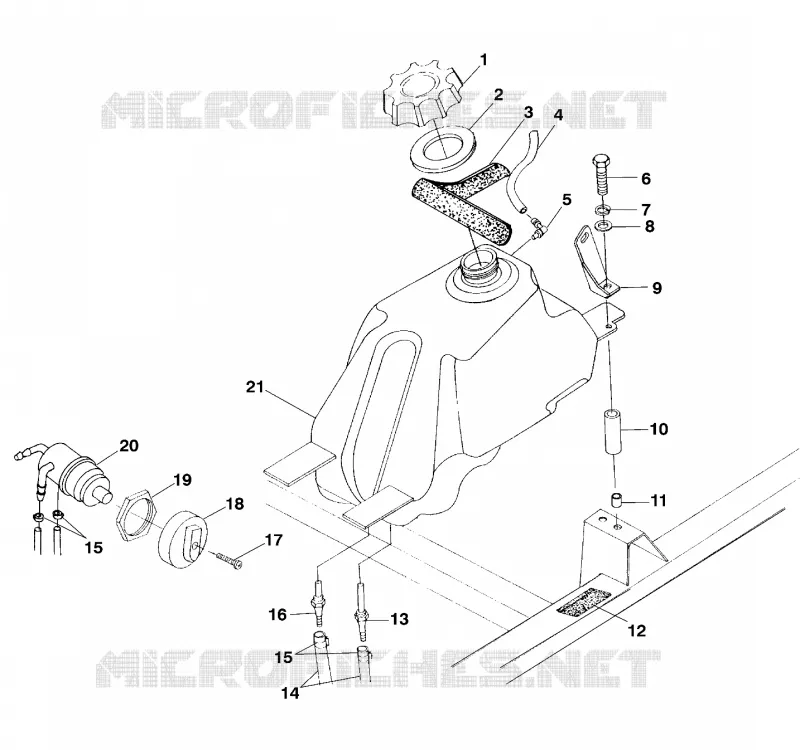

Find the detailed FUEL TANK POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
