1
Engine displacement
1000
2
Year
2019
3
Trim
RZR XP 4 1000 MD
4
Parts Catalog
CYLINDER HEAD AND VALVES
5
Parts Diagram
Parts Catalog
WIRE HARNESS
by
EXHAUST SYSTEM

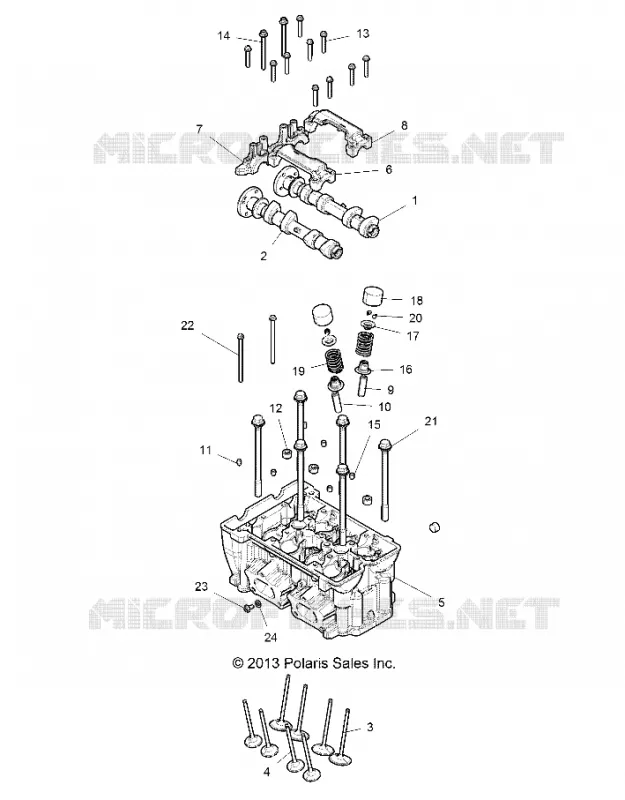

CYLINDER HEAD AND VALVES
1
2
3
4
5
10
10
10
10
10
11
12
13
14
15
16
17
18
18
18
18
18
18
18
18
18
18
18
18
18
18
18
18
18
18
18
18
18
18
18
18
18
18
18
18
18
18
18
18
18
18
18
18
18
18
18
18
18
18
18
19
20
21
22
23
24
1
CAMSHAFT-INT 1040-234
3023528
$745,49 Unit Price incl. VAT
2
EXHAUST CAMSHAFT
3023529
$745,49 Unit Price incl. VAT
3
INTAKE VALVE; STEEL; G-90
3022134
3022884
$52,49 Unit Price incl. VAT
4
EXHAUST VALVE
3022415
3024052
Not Available
5
CYLINDER HEAD ASSEMBLY
3023237
$2 288,99 Unit Price incl. VAT
6
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
7
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
8
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
9
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
10
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
11
PIN-DOWEL M6X10
5137624
$13,64 Unit Price incl. VAT
12
PLUG-PIPE M16 DIN
7520284
$47,24 Unit Price incl. VAT
13
SCR-HXFL M6X1.0X35 10.9
7520689
$14,69 Unit Price incl. VAT
14
SCR-HXFL M6X1.0X70 10.9
7520688
$19,94 Unit Price incl. VAT
15
DWL-HOL M8X8
7662355
$19,94 Unit Price incl. VAT
16
VALVE SPRING SEAT WITH SEAL
3610212
3024576
Not Available
17
RETAINER VALVE
5138435
$47,24 Unit Price incl. VAT
18
VALVE TAPPET; GRADED 5.175
5138477518
Not Available
18
VALVE TAPPET; GRADED; 5.250
5138477525
Not Available
18
GRADED VALVE TAPPET; 5.300
5138477530
Not Available
18
GRADED VALVE TAPPET; 5.150
5138477515
Not Available
18
GRADED VALVE TAPPET; 5.100
5138477510
Not Available
18
GRADED VALVE TAPPET; 5.450
5138477545
Not Available
18
TAPPET-VALVE GRADED 4.625 ANVRSY GLD MET
5138477462
Not Available
18
VALVE TAPPET; GRADED 4.600
5138477460
Not Available
18
VALVE TAPPET; GRADED 4.650
5138477465
Not Available
18
VALVE TAPPET; GRADED 4.825
5138477482
Not Available
18
VALVE TAPPET; GRADED; 5.375
5138477538
Not Available
18
GRADED VALVE TAPPET; 4.450
5138477445
Not Available
18
GRADED VALVE TAPPET; 5.200
5138477520
Not Available
18
GRADED VALVE TAPPET; 4.475
5138477448
Not Available
18
VALVE TAPPET; GRADED 4.950
5138477495
Not Available
18
VALVE TAPPET 4.925MM; DELTA GREEN
5138477492
Not Available
18
VALVE TAPPET; GRADED 4.725
5138477472
Not Available
18
VALVE TAPPET; GRADED
5138477505
Not Available
18
VALVE TAPPET; GRADED; 4.575
5138477458
Not Available
18
GRADED VALVE TAPPET; 5.125
5138477512
Not Available
18
GRADED VALVE TAPPET; 4.525
5138477452
Not Available
18
GRADED VALVE TAPPET; 5.350
5138477535
Not Available
18
VALVE TAPPET; GRADED; 5.275
5138477528
Not Available
18
VALVE TAPPET; GRADED; 4.5
5138477450
Not Available
18
VALVE TAPPET 4.55MM
5138477455
Not Available
18
GRADED VALVE TAPPET; 5.075
5138477508
Not Available
18
VALVE TAPPET; GRADED; 5.325
5138477532
Not Available
18
VALVE TAPPET; GRADED 4.850
5138477485
Not Available
18
VALVE TAPPET 4.4MM GLS BLK W/ MCH HGHLTS
5138477440
Not Available
18
GRADED VALVE TAPPET; 5.425
5138477542
Not Available
18
VALVE TAPPET; GRADED 4.875
5138477488
Not Available
18
VALVE TAPPET
5138477500
Not Available
18
VALVE TAPPET; GRADED; 5.225
5138477522
Not Available
18
VALVE TAPPET 4.975MM; SB GRN MTLC
5138477498
Not Available
18
VALVE TAPPET; GRADED 4.70; COLOR
5138477470
Not Available
18
GRADED VALVE TAPPET; 5.025
5138477502
Not Available
18
GRADED VALVE TAPPET; 5.400
5138477540
Not Available
18
VALVE TAPPET; GRADED 4.800
5138477480
Not Available
18
VALVE TAPPET; GRADED 4.675
5138477468
Not Available
18
VALVE TAPPET; GRADED 4.750; COLOR
5138477475
Not Available
18
VALVE TAPPET; GRADED 4.775
5138477478
Not Available
18
VALVE TAPPET; GRADED; 4.425
5138477442
Not Available
18
VALVE TAPPET; GRADED 4.900
5138477490
Not Available
19
VALVE SPRING
7045027
7046204
$18,89 Unit Price incl. VAT
20
VALVE KEEPER
7081470
$9,44 Unit Price incl. VAT
21
HEAD BOLT; 11 MM X 1.25 MM X 150MM
7519123
7520978
$41,99 Unit Price incl. VAT
22
SCREW
7519153
$10,49 Unit Price incl. VAT
23
SCR-M6X1.0X13 SL/HX/FL-Z BLEED
7520470
$9,44 Unit Price incl. VAT
24
FLAT WASHER
7555998
$2,09 Unit Price incl. VAT

Find the detailed CYLINDER HEAD AND VALVES POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
