EXHAUST SYSTEM for POLARIS RZR XP 4 1000 MD from 2019

EXHAUST SYSTEM

1

SILENCER ASSEMBLY

1263066

$1 149,74 Unit Price incl. VAT

2

SPARK ARRESTOR

1262390

$99,74 Unit Price incl. VAT

3

HEX FLANGE HD SCREW; 6 MM X 12 MM

7517257

$17,84 Unit Price incl. VAT

4

NUT

7547120

$9,44 Unit Price incl. VAT

5

HEX HEAD SCREW W/ LOCK 6MM X 1.0MM X10MM

7520291

$13,64 Unit Price incl. VAT

6

SHIELD-BOX FRONT

5814245

$83,99 Unit Price incl. VAT

7

SHIELD; REAR

5266576

5268152

$83,99 Unit Price incl. VAT

8

HEX HEAD FLANGE SCREW; 6 MM X 16 MM

7518591

$6,29 Unit Price incl. VAT

9

ACCESS PANEL SHIELD

5262942

$68,24 Unit Price incl. VAT

10

SPRING

7041789

$16,79 Unit Price incl. VAT

11

HX SCREW 8MMX1.25PX22MML

7518984

$14,69 Unit Price incl. VAT

12

SCREW

7512026

$2,09 Unit Price incl. VAT

13

SPHERICAL DOUBLE GASKET; 2.5 IN

3610236

$89,24 Unit Price incl. VAT

14

TUFLOK RIVET

7661855

$2,09 Unit Price incl. VAT

15

HEADPIPE ASSEMBLY

1262599

$719,24 Unit Price incl. VAT

16

ISOLATOR MOUNT

5450115

$31,49 Unit Price incl. VAT

17

EXHAUST GASKET SEAL

3610184

$89,24 Unit Price incl. VAT

18

BOLT M6 X 1.0 X 20

7518529

$2,09 Unit Price incl. VAT

19

HEATED OXYGEN SENSOR

4011853

$220,49 Unit Price incl. VAT

20

SPHERICAL EXHAUST SPRING

7044274

$29,39 Unit Price incl. VAT

21

EXHAUST STUD; SPHERICAL

7520079

$25,19 Unit Price incl. VAT

22

ROUTING CLIP

7081496

$9,44 Unit Price incl. VAT

23

HEAT SHIELD EXHAUST CLAMP

7081156

$13,64 Unit Price incl. VAT

24

EXHAUST HEAT SHIELD CLAMP

7081579

$13,64 Unit Price incl. VAT

25

SHIELD-HEAT HEADPIPE OUTSIDE

5257570

9999999

Not Available

26

SHIELD-FOIL SIDE BOX 0.05 AL

5263028

$52,49 Unit Price incl. VAT

27

ACCESS PANEL SHIELD

5814648

9999999

Not Available

28

BUMPER SHIELD; REAR

5814362

$104,99 Unit Price incl. VAT

29

CABLE TIE STRAP WITH EDGE CLIP

7081808

$10,49 Unit Price incl. VAT

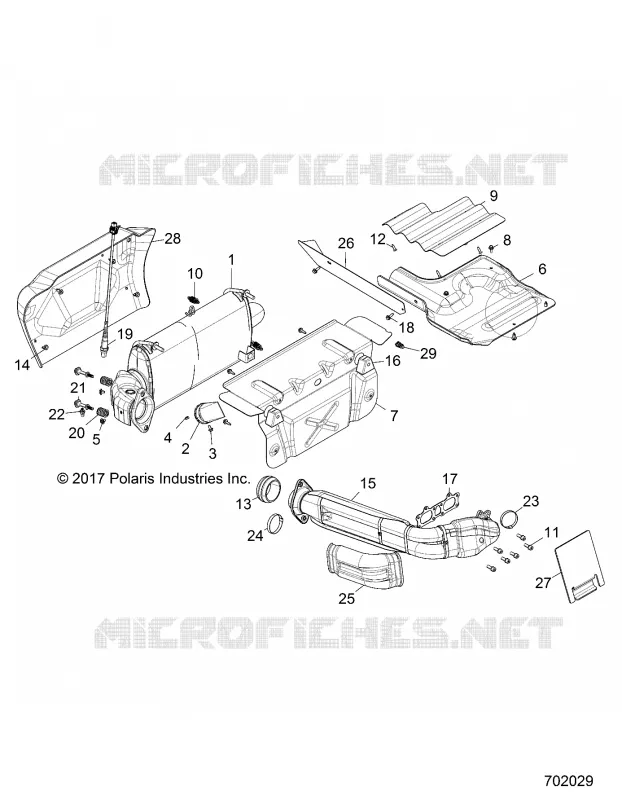

Find the detailed EXHAUST SYSTEM POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
