1
Engine displacement
1000
2
Year
2019
3
Trim
RZR XP 4 1000 MD
4
Parts Catalog
DRIVE TRAIN, CLUTCH COVER AND DUCTING
5
Parts Diagram
Parts Catalog
CHASSIS, MAIN FRAME AND SKID PLATES
by
DRIVE TRAIN, FRONT GEARCASE
DRIVE TRAIN, CLUTCH COVER AND DUCTING
1
1
2
3
4
5
6
7
8
9
10
11
12
13
14
14
15
15
16
17
18
19
20
20
21
22
23
24
25
1
CLUTCH DUCT INTAKE ASSEMBLY
1240782
$262,49 Unit Price incl. VAT
2
WORM DRIVE CLAMP
7081626
$14,69 Unit Price incl. VAT
3
DECAL-BELT CAUTION/CHECK
7177469
Not Available
4
BOLT/WASHER ASSMEBLY; 20 MM
7519278
$9,44 Unit Price incl. VAT
5
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
6
O RING-.364X.504X.07
5410542
5411432
$9,44 Unit Price incl. VAT
7
DRAIN PLUG
5434264
$10,49 Unit Price incl. VAT
8
CLUTCH COVER SEAL OUTER
5521831
5526449
$78,74 Unit Price incl. VAT
9
SCREW HI/LO M6 X 35
7519330
$7,34 Unit Price incl. VAT
10
INNER CLUTCH COVER ASSEMBLY
2635158
$314,99 Unit Price incl. VAT
11
CLUTCH COVER GUARD BRACKET
5256223
$68,24 Unit Price incl. VAT
12
AIR INLET CLUTCH DUCT
5439086
$73,49 Unit Price incl. VAT
13
SCR-M6X1.0X20MM TX PH 8.8-B
7518546
$6,29 Unit Price incl. VAT
14
SCR-#14X3/4 HI/LO-PH-PN TRX-M
7519205
$3,14 Unit Price incl. VAT
15
HEX FLANGE NUT; 6 MM X 1.0 MM
7547453
$7,34 Unit Price incl. VAT
16
BELT SCREEN BRACKET
5256957
$62,99 Unit Price incl. VAT
17
AIR OUTLET CLUTCH HOSE
5414537
$178,49 Unit Price incl. VAT
18
INTAKE BOOT CLUTCH
5813639
$19,94 Unit Price incl. VAT
19
COVER SEAL
5813708
$41,99 Unit Price incl. VAT
20
CLUTCH INTAKE HOSE
5415317
$188,99 Unit Price incl. VAT
21
INTAKE BOOT; PLASTIC
5451776
$18,89 Unit Price incl. VAT
22
P-CLAMP; LARGE
7082035
$41,99 Unit Price incl. VAT
23
TORX SCREW; #14 X 3/4
7519045
$6,29 Unit Price incl. VAT
24
3.75 SS
7080907
$20,99 Unit Price incl. VAT
25
SCR-TFHFL-M6X1.0X25 ZOD
7519342
$3,14 Unit Price incl. VAT

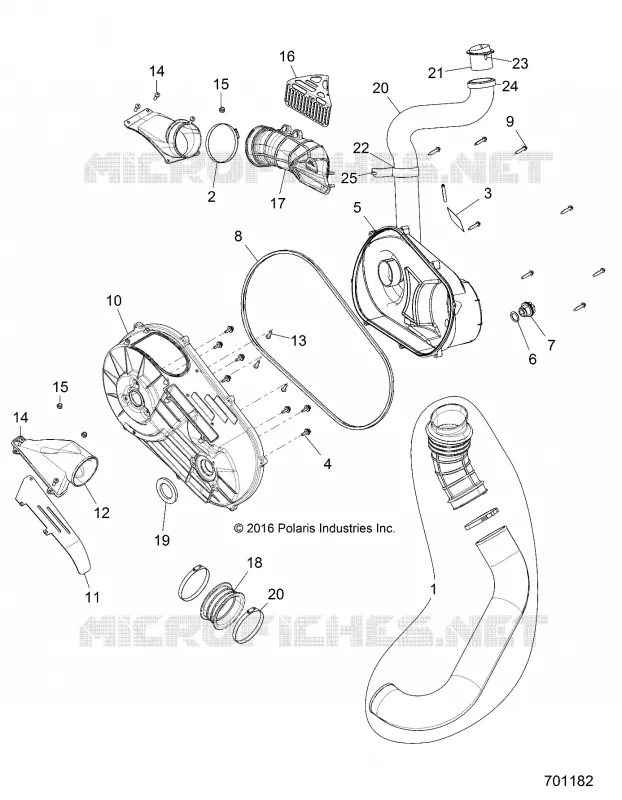

Find the detailed DRIVE TRAIN, CLUTCH COVER AND DUCTING POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
