1
Engine displacement
autre
2
Year
1998
3
Trim
XLT SP - 0985776
4
Parts Catalog
ENGINE MOUNTING
5
Parts Diagram
Parts Catalog
DRIVEN CLUTCH
by
EXHAUST SYSTEM
ENGINE MOUNTING
1
2
3
4
5
6
7
8
9
10
11
11
12
13
13
14
14
15
15
15
16
16
16
16
17
17
18
19
20
20
21
22
23
24
25
26
27
27
28
29
29
29
29
29
29
30
31
32
1
BOLT
7512565
9999999
Not Available
2
WASHER LOCK
7575202
$9,44 Unit Price incl. VAT
3
WASHER CLUTCH RETAINER
5010287
$18,89 Unit Price incl. VAT
4
O-RING
5410507
$2,09 Unit Price incl. VAT
5
SPACER
5020513
$60,89 Unit Price incl. VAT
6
CONDUIT CONVOLUTED
4010051
9999999
Not Available
7
SPARK PLUG
3070165
$7,34 Unit Price incl. VAT
8
ENG.(S.B.)EC58PL-08 [No Longer Available] (EC58PL08)
3085354
Not Available
9
WELL NUT
7541923
$10,49 Unit Price incl. VAT
10
WASHER; FLAT
7555843
7558302
$3,14 Unit Price incl. VAT
11
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
12
NUT FLEXLOCK
7542503
9999999
Not Available
13
WASHER
7555740
$3,14 Unit Price incl. VAT
14
MOUNT ENGINE
5410390
9999999
Not Available
15
FLEX LOCK; NUT
7547008
$11,54 Unit Price incl. VAT
16
PLATE LH MTR.MT.
5241038
Not Available
16
PLATE RH MTR.MT.
5241039
Not Available
17
WASHER
7555823
$7,34 Unit Price incl. VAT
18
SPRING LOCK WASHER
7553101
$7,34 Unit Price incl. VAT
19
BOLT
7512575
9999999
Not Available
20
ENGINE MOUNT
3110062
9999999
Not Available
21
SCREW
7512530
$10,49 Unit Price incl. VAT
22
SPACER (MTR.MT.)
5332778
9999999
Not Available
23
SCREW(10)
7512222
9999999
Not Available
24
WASHER
7552604
$3,14 Unit Price incl. VAT
25
HANDLE RECOIL
5431499
9999999
Not Available
26
CABLE THROTTLE W/OIL
7080623
9999999
Not Available
27
CABLE TIE
7080138
$5,24 Unit Price incl. VAT
28
FUEL LINE; 600 CM
8450040600
Not Available
29
HOSE CLAMP
7080003
$2,09 Unit Price incl. VAT
30
FUEL FILTER
2530008
9999999
Not Available
31
VALVE FUEL SHUT-OFF
7052060
9999999
Not Available
32
FUELLINE MARINE/SNO 1525CM
84500791525
Not Available

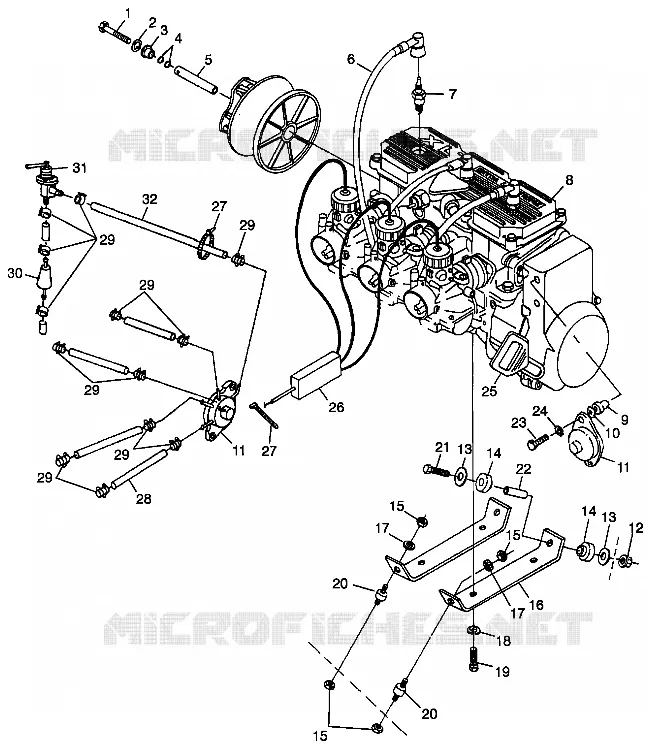

Find the detailed ENGINE MOUNTING POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
