1
Engine displacement
autre
2
Year
1998
3
Trim
XLT SP - 0985776
4
Parts Catalog
COOLING SYSTEM
5
Parts Diagram
Parts Catalog
REAR TORQUE ARM
by
OIL TANK/AIR BOX
COOLING SYSTEM
1
2
2
3
4
5
6
7
8
8
8
8
9
10
10
10
10
11
11
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
28
28
28
28
28
29
30
30
30
31
32
33
1
NYLOK NUT
7542122
$2,09 Unit Price incl. VAT
2
WASHER WROUGHT
7558302
$3,14 Unit Price incl. VAT
3
OVERFLOW CAP
5430743
$10,49 Unit Price incl. VAT
4
PLUG
5431096
$3,66 Unit Price incl. VAT
5
GASKET
5810279
$4,19 Unit Price incl. VAT
6
BOLT
7512240
9999999
Not Available
7
BOTTLE O FLOW W/FITTING
5431733
9999999
Not Available
8
RIVET INTERLOCK
7661638
$2,09 Unit Price incl. VAT
9
EXCHANGER COOL.CTR.
2511239
9999999
Not Available
10
CLAMP HOSE SIL 27MM.
7080562
7080841
$13,64 Unit Price incl. VAT
11
CLAMP HOSE GRY 35MM.
7080564
9999999
Not Available
12
COOLER LH SIDE(XTRA 10)
2511257
9999999
Not Available
13
GUARD COOL.EXT.
5222863
9999999
Not Available
14
HOSE-CROSSOVER
5410350
9999999
Not Available
15
HOSE CENTER
5410673
9999999
Not Available
16
TUBING CONVOL 8 X1 IN
5411396
9999999
Not Available
17
FILLER REMOTE COOLANT
5431931
5433364
$73,49 Unit Price incl. VAT
18
BRKT OILTANK COINED
5241334
9999999
Not Available
19
CAP PRESS
2511256
9999999
Not Available
20
HOSE ENG.OUT/FILLER
5411010
9999999
Not Available
21
SPRINGHOSE RETAINER
7042041
9999999
Not Available
22
EDGE TRIM - BLACK
8360012
9999999
Not Available
23
HOSE CLAMP
7080614
$13,64 Unit Price incl. VAT
24
HOSE CROSSOVER
5410557
9999999
Not Available
25
TUBING CONVOL 1 X2.5
5521242
9999999
Not Available
26
HOSE RETAINER SPRING
7041079
9999999
Not Available
27
HOSE RH FILLER OUT EXTRUSION
5411011
9999999
Not Available
28
HOSE CLAMP
7080307
$1,56 Unit Price incl. VAT
29
TAPEFOIL1.50 X 7.50
5810831
9999999
Not Available
30
FUEL LINE; 1/4 ID
84500031525
Not Available
31
CHECK VALVE
7052038
$20,99 Unit Price incl. VAT
32
FILTER COOLANT LGE.
2530024
9999999
Not Available
33
COOLER; SIDE; RIGHT
2511258
9999999
Not Available

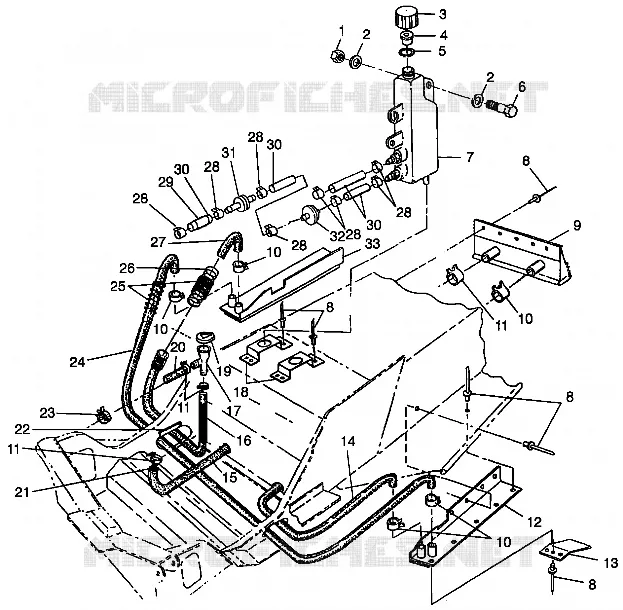

Find the detailed COOLING SYSTEM POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
