Parts Catalog
NOSEPAN XLT SP 0985776 (4942164216A008)
5
Parts Diagram
Parts Catalog
by
NOSEPAN FOIL XLT SP 0985776 (4942164216A009)
NOSEPAN XLT SP 0985776 (4942164216A008)
1
2
3
3
3
3
4
5
6
6
6
6
7
8
8
9
9
9
9
10
10
11
12
13
14
15
16
16
17
18
19
20
20
21
22
23
23
23
23
24
25
26
27
28
29
30
31
31
31
31
32
1
RIVET
7621318
9999999
Not Available
2
GUIDE HOOD
5220984
Not Available
3
BUMPER ASM; RH
2670163
9999999
Not Available
3
BUMPER ASM;LH;EXT.
2670162
9999999
Not Available
4
BUMPER SIDESTRIP VLT C
5811264198
Not Available
5
SCREW(10)
7515166
$6,29 Unit Price incl. VAT
6
CAP LH BUMPER END
5431913
9999999
Not Available
6
CAP RH BUMPER END
5431914
9999999
Not Available
7
NYLOK FLANGED NUT
7542153
$3,14 Unit Price incl. VAT
8
RIVET (50)
7621601
1015421
$3,66 Unit Price incl. VAT
9
TRIM LH REARPAN
5224590067
Not Available
9
TRIM RH REARPAN
5224591067
Not Available
10
RIVET INTERLOCK
7661638
$2,09 Unit Price incl. VAT
11
HOOD LATCH STRAP
5410370
$47,24 Unit Price incl. VAT
12
RIVET
7621472
$2,09 Unit Price incl. VAT
13
NOSEPAN AGR BLK.
5432668067
Not Available
14
REFLECTOR AMBER
2670071
9999999
Not Available
15
PLUIG
5410344
$10,49 Unit Price incl. VAT
16
RIVET
7621418
$2,09 Unit Price incl. VAT
17
RIVET
7621467
$2,09 Unit Price incl. VAT
18
BRACENOSEPANBLK
5241820067
Not Available
19
RIVET(50)
7661643
7661130
$2,09 Unit Price incl. VAT
20
SCREW
7515177
$5,76 Unit Price incl. VAT
21
WASHER(10)
7558221
$4,19 Unit Price incl. VAT
22
RIVET (10)
7621507
9999999
Not Available
23
BRACE ASMLH.CORNER
2670165
9999999
Not Available
23
BRACE ASMRH.CORNER
2670166
9999999
Not Available
24
NYLOK NUT
7542122
$2,09 Unit Price incl. VAT
25
BRACE PAN DRILLED
5131070
9999999
Not Available
26
WASHER
7552604
$3,14 Unit Price incl. VAT
27
HINGE ASMLOWER
2670167
9999999
Not Available
28
SCREW
7512024
$9,44 Unit Price incl. VAT
29
SUPPORT UP.PAN BRACE
5240698
9999999
Not Available
30
RIVET (10)
7621484
9999999
Not Available
31
GUIDE LH HOOD
5240785
9999999
Not Available
31
GUIDE RH HOOD
5240786
Not Available
32
POP RIVET(10)
7621425
$2,09 Unit Price incl. VAT

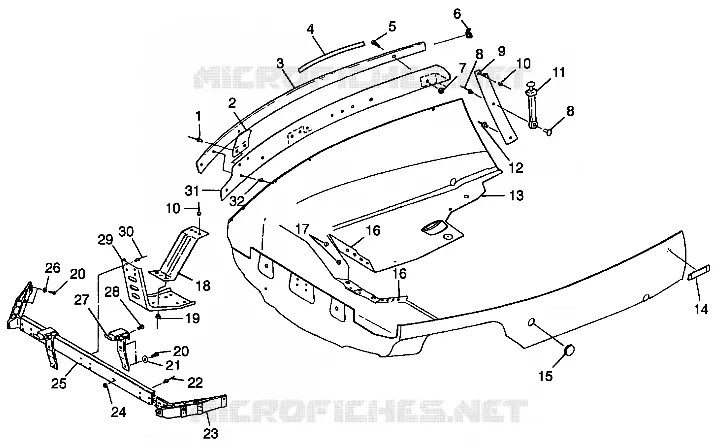

Find the detailed NOSEPAN XLT SP 0985776 (4942164216A008) POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
