DUMP BOX for POLARIS SPORTSMAN 6X6 - A04CL50AA from 2004

DUMP BOX

1

SCREW

7515177

$5,76 Unit Price incl. VAT

2

WASHER(10)

7558221

$4,19 Unit Price incl. VAT

3

ROD HINGE

5132358

$99,74 Unit Price incl. VAT

4

TAILGATE PLASTIC

5433388

$745,49 Unit Price incl. VAT

5

SCREW

7517561

$3,14 Unit Price incl. VAT

6

LATCH FLSHBLT TLGATE BLK

5433656

$120,74 Unit Price incl. VAT

7

T-GATE PADDLE LATCH; BLACK

5433655

$152,24 Unit Price incl. VAT

8

HITCH PIN

7661644

$4,19 Unit Price incl. VAT

9

WSHR RUBBER W/METAL BACK

7556143

$9,44 Unit Price incl. VAT

10

SHFT TLGATE LTCH 5/16 ZINC

5132373

$23,09 Unit Price incl. VAT

11

SCR #10X3/4 HI/LO

7517790

$4,19 Unit Price incl. VAT

12

BOX LATCH BRACKET

5243304

$31,49 Unit Price incl. VAT

13

SCREW-1/4-20X2 (10)

7517938

$2,40 Unit Price incl. VAT

14

SCREW3/8-16X1TORX/TRUSS GR5

7517747

9999999

Not Available

15

WASHER .391X1.25X.105-M

7556157

9999999

Not Available

16

SCREW1/4-20X3/4PA PN;LK;G2-Y

7517742

$10,49 Unit Price incl. VAT

17

TAILGATE CABLE

7080881

$73,49 Unit Price incl. VAT

18

COVER-TAILGATE BLK

5244068067

Not Available

19

TAILLIGHT BULB

4010340

$13,64 Unit Price incl. VAT

19

TAIL LIGHT WITH BRAKE LIGHT ASSEMBLY

2410179

$104,99 Unit Price incl. VAT

20

DECAL-REFLECT.2.88 RED

7079925

$15,74 Unit Price incl. VAT

21

BOLT

7512329

$7,34 Unit Price incl. VAT

22

NYLOK NUT

7542324

$1,56 Unit Price incl. VAT

23

SCREW

7512492

$2,09 Unit Price incl. VAT

24

NUT FLANGE LOCK

7542449

$7,34 Unit Price incl. VAT

25

DUMP BOX SHOCK

7041301

9999999

Not Available

26

NUT-3/8-16 FLG LOCK-Y

7547089

9999999

Not Available

27

WELD-BOX SUPPORTBLK

1012893067

Not Available

28

SCREW

7515350

7517979

$7,34 Unit Price incl. VAT

29

LATCH BOX BLK

1013125067

Not Available

30

SCREW

7512084

$2,09 Unit Price incl. VAT

31

BACKREST BLK ASM.

2682522070

Not Available

31

BACKREST COVERING; GLOSS BLACK

2681664070

Not Available

32

BOX-MOLDED 6X6 MOD BLK

5435064070

Not Available

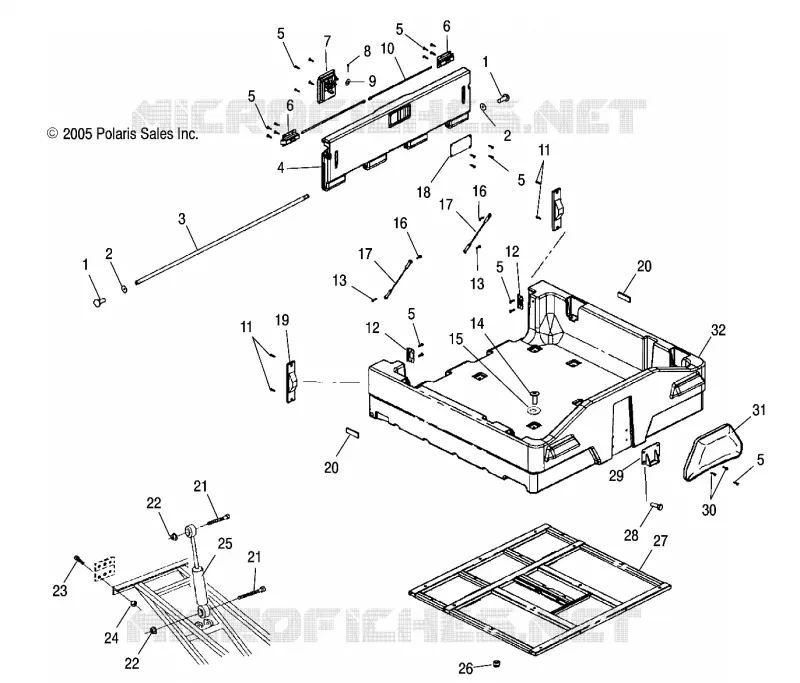

Find the detailed DUMP BOX POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
