COOLING SYSTEM for POLARIS SPORTSMAN 6X6 - A04CL50AA from 2004

COOLING SYSTEM

1

HOSE CLAMP

7080614

$13,64 Unit Price incl. VAT

2

CAP-PRESSURE 13 PSI

1240044

1240508

$89,24 Unit Price incl. VAT

3

REMOTE COOLANT FILTER

5433364

$73,49 Unit Price incl. VAT

4

BRKT-REMOTE COOLANT FILL PLTD

5243505

9999999

Not Available

5

RIVET

7661637

$2,09 Unit Price incl. VAT

6

FLEXGUARD-PLASTIC GUARD

5433948

9999999

Not Available

7

ENGINE HOSE; UPPER

5411811

9999999

Not Available

8

CLAMP-ROTO SPRING 1"

7080827

9999999

Not Available

9

SCREW

7512084

$2,09 Unit Price incl. VAT

10

FILLER NECK HOSE

5411632

9999999

Not Available

11

CLAMP-ROTO CLIP

7080826

9999999

Not Available

12

SCREW

7517659

9999999

Not Available

13

FAN AND MOTOR ASSEMBLY SPAL

2410430

9999999

Not Available

14

CLIP U

7670111

9999999

Not Available

15

NUTSERT HEX

7547069

$7,34 Unit Price incl. VAT

16

MOUNT; RUBBER

3110032

9999999

Not Available

17

MOUNT SPACER

5020572

9999999

Not Available

18

SHROUD-FAN

5433059

9999999

Not Available

19

THERMAL HARNESS SENSOR

4010161

9999999

Not Available

20

RADIATOR

1240178

9999999

Not Available

21

SPRING LOCK WASHER

7552801

$3,14 Unit Price incl. VAT

22

BOLT

7512240

9999999

Not Available

23

FLAT WASHER

7558301

$2,09 Unit Price incl. VAT

24

O-Ring

5411633

Not Available

24

VALVE-PLASTIC DRAIN

7052296

9999999

Not Available

25

RADIATOR MOUNT BUSHING; LOWER

5410584

$10,49 Unit Price incl. VAT

26

RADIATOR BRACKET; LOWER; GS BLK

5243503067

Not Available

27

BOLT

7512232

$2,09 Unit Price incl. VAT

28

HOSE LOWER ENGINE

5411694

9999999

Not Available

29

GUARD-HOSE 12

5521511

9999999

Not Available

30

OVERFLOW CAP

5430743

$10,49 Unit Price incl. VAT

31

GASKET

5810279

$4,19 Unit Price incl. VAT

32

CAP PLUG9X(GRN) FLEX TEMP(10)

5433774

$10,49 Unit Price incl. VAT

33

SURGE TANK

5433410

9999999

Not Available

34

FUEL LINE; 1/4 ID

84500031525

Not Available

35

FITTING 90 DEGREE

7052065

$13,64 Unit Price incl. VAT

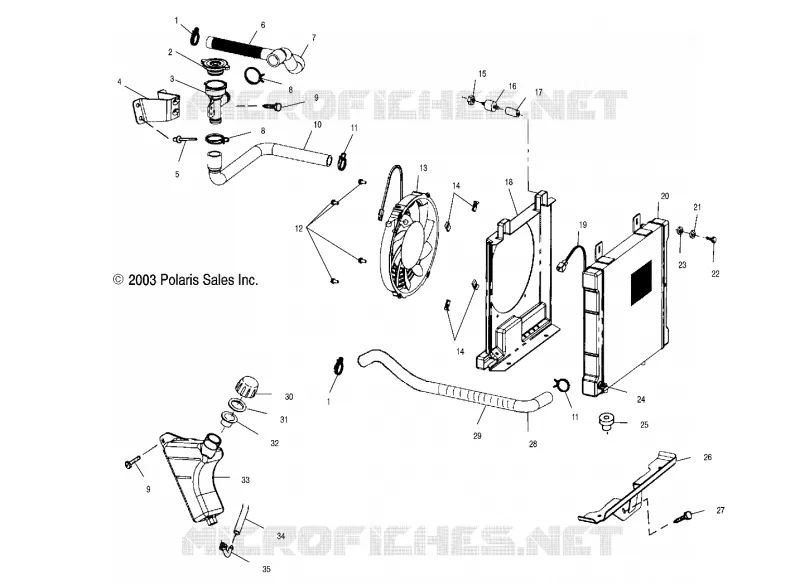

Find the detailed COOLING SYSTEM POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
