Engine displacement
500
2
Year
2004
3
Trim
SPORTSMAN 6X6 - A04CL50AA
4
Parts Catalog
ENGINE MOUNTING
5
Parts Diagram
Parts Catalog
EXHAUST SYSTEM
by
FUEL TANK
ENGINE MOUNTING
1
1
1
1
1
2
2
2
3
4
5
6
7
8
9
9
9
9
10
11
11
11
12
13
13
14
15
16
17
18
18
18
19
20
21
22
23
24
25
26
26
27
28
29
30
31
17
17
34
35
36
37
38
39
40
17
17
43
17
45
46
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
17
17
34
35
36
37
38
39
40
17
17
43
17
1
NUT
7547108
$9,44 Unit Price incl. VAT
2
WASHER
7555801
$7,34 Unit Price incl. VAT
3
CABLE GND-ENGINE
4010132
9999999
Not Available
4
BOLT
7512232
$2,09 Unit Price incl. VAT
5
MOUNT RUBBER TOP
3110044
3024012
$83,99 Unit Price incl. VAT
6
BRKT-ENGINE MOUNTTOPPLTD
5242674
9999999
Not Available
7
SPRING LOCK WASHER
7552901
$2,09 Unit Price incl. VAT
8
BOLT
7512315
$9,44 Unit Price incl. VAT
9
HOSE CLAMP
7080003
$2,09 Unit Price incl. VAT
10
FUEL LINE; 600 CM
8450040600
Not Available
11
FUEL LINE; 1/4 ID
84500031525
Not Available
12
FITTING TEE
7052075
$17,84 Unit Price incl. VAT
13
SCREW AND WASHER
3084205
9999999
Not Available
14
BRKT-CARB MNT(PLATED)
5246553
9999999
Not Available
15
WELL NUT
7541923
$10,49 Unit Price incl. VAT
16
BOLT
7512247
9999999
Not Available
17
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
18
LINE FUEL 1/8 ID 600 CM.
8360009600
Not Available
19
LINE FUEL-1/4 DP SAE J30R9
8450103
8450117-250
$99,74 Unit Price incl. VAT
20
Sheath Reflect Sleeve
845010518
Not Available
21
MOUNT ENGINE REAR BLK
1012883067
Not Available
22
NUT-3/8-16 FLG LOCK-Y
7547089
9999999
Not Available
23
MOUNT RUBBER FRONT
3110046
9999999
Not Available
24
SCREW
7517289
9999999
Not Available
25
FLAT WASHER
7555815
$7,34 Unit Price incl. VAT
26
CLUTCH INTAKE BOOT
5412487
9999999
Not Available
26
CLUTCH INTAKE BOOT
5410421
9999999
Not Available
27
NARROW BAND CLAMP
7080511
$9,44 Unit Price incl. VAT
28
BUSHING
5430261
$13,64 Unit Price incl. VAT
29
WASHER
5210748
$7,34 Unit Price incl. VAT
30
WASHER LOCK
7575202
$9,44 Unit Price incl. VAT
31
BOLT
7512566
9999999
Not Available
32
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
33
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
34
MOUNT FR.ENGINE BLK.
1040688067
Not Available
35
SCREW
7515398
9999999
Not Available
36
NYLOK NUT
7542324
$1,56 Unit Price incl. VAT
37
MOUNT MOTOR
3110067
9999999
Not Available
38
HOSE CLAMP
7080474
$13,64 Unit Price incl. VAT
39
SPRING LOCK WASHER
7552603
$1,56 Unit Price incl. VAT
40
SCREW
7515417
9999999
Not Available
41
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
42
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
43
WELD-MANIFOLD 1.625 W/PN BLK
1261171029
Not Available
44
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
45
ENG.(S.B.)EH50PLE-01
3085556
9990000
Not Available
46
VALVE CHECK
7051011
9999999
Not Available

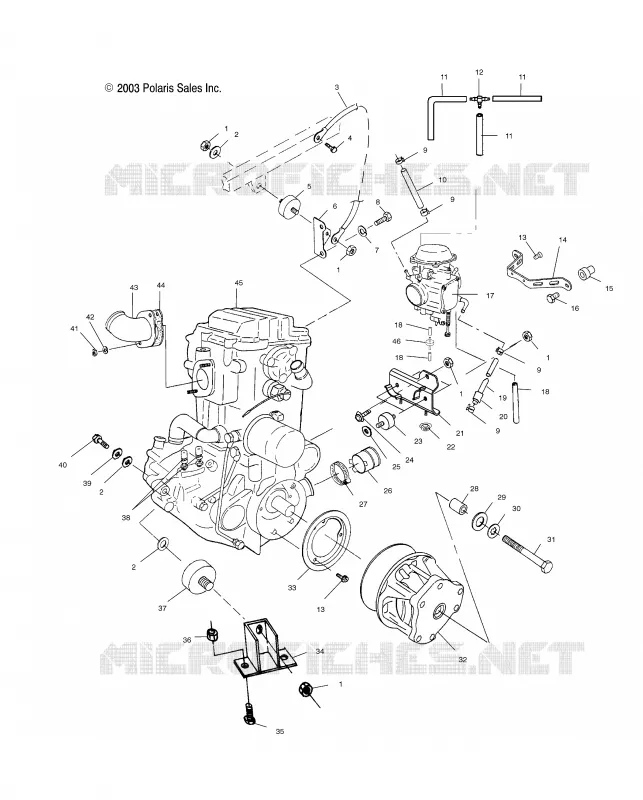

Find the detailed ENGINE MOUNTING POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.
