REAR SUSPENSION TORQUE ARM (DRAGON) for POLARIS 750 IQ TURBO DRAGON / LX from 2008

REAR SUSPENSION TORQUE ARM (M-10)

REAR SUSPENSION TORQUE ARM (DRAGON)

1

RTA IQ BLK

1542136067

Not Available

2

LUBRICATION FITTING

7080424

$9,44 Unit Price incl. VAT

3

NYLOK NUT

7547263

$6,29 Unit Price incl. VAT

4

SCR-3/8-24X8.75 HXCP-GR8-Y

7518241

$62,99 Unit Price incl. VAT

5

SHAFT-.740X.390X7.965 6066

5133973

$47,24 Unit Price incl. VAT

6

PUSH ON CLIP

7080394

$4,19 Unit Price incl. VAT

7

NYLOK NUT; 7-16-20

7547066

$3,14 Unit Price incl. VAT

8

FLAT WASHER

7555984

$4,19 Unit Price incl. VAT

9

SCREW

7515415

9999999

Not Available

10

ROLLER-SPRING TRI-ADJ LH

5434589

$68,24 Unit Price incl. VAT

10

ROLLER-SPRING TRI-ADJ RH

5434590

$62,99 Unit Price incl. VAT

11

SPACER-.520X.770X1.125 HDPE

5334285

$4,19 Unit Price incl. VAT

12

WASHER .390 IN X .750 IN X .0

7556188

9999999

Not Available

13

BOLT-7/16-20X2-HXHDCAP-GR5-Y

7518271

$6,29 Unit Price incl. VAT

14

ARM ASSEMBLY; 2.00

1541967

9999999

Not Available

15

BUSHING

3514331

$34,64 Unit Price incl. VAT

16

FLANGE SHAFT; .445 X .750 X 1.00

5134046

$47,24 Unit Price incl. VAT

17

SPRING-TOR .347S 80 11# LH BLK

7043070067

Not Available

17

SPRING-TOR .347S 77 9# LH BLK

7043240067

Not Available

17

SPRING-TOR .347S 77 9# RH BLK

7043241067

Not Available

17

TORSION SPRING .359; LEFT HAND; GS BLK

7043079067

Not Available

17

SPRING-TOR .347S 80 11# RH BLK

7043071067

Not Available

17

RIGHT TORSION SPRING .3595 12.5# GS BLK

7043080067

Not Available

18

TORSION SPRING SLEEVE

5434989

$7,34 Unit Price incl. VAT

19

WASHER

7555939

9999999

Not Available

20

PLAIN WHEEL ASSEMBLY

1590001

$141,74 Unit Price incl. VAT

20

BEARING-6007

3514445

1590001

$141,74 Unit Price incl. VAT

20

RING-RETAINING

7710486

9999999

Not Available

21

WELD-SHOCK ROD;BLK

1542330329

Not Available

22

BUSHING .385 X .560 X .967

5135043

$11,54 Unit Price incl. VAT

23

BUSHING .385 X .550 X 1.39

5134601

$27,29 Unit Price incl. VAT

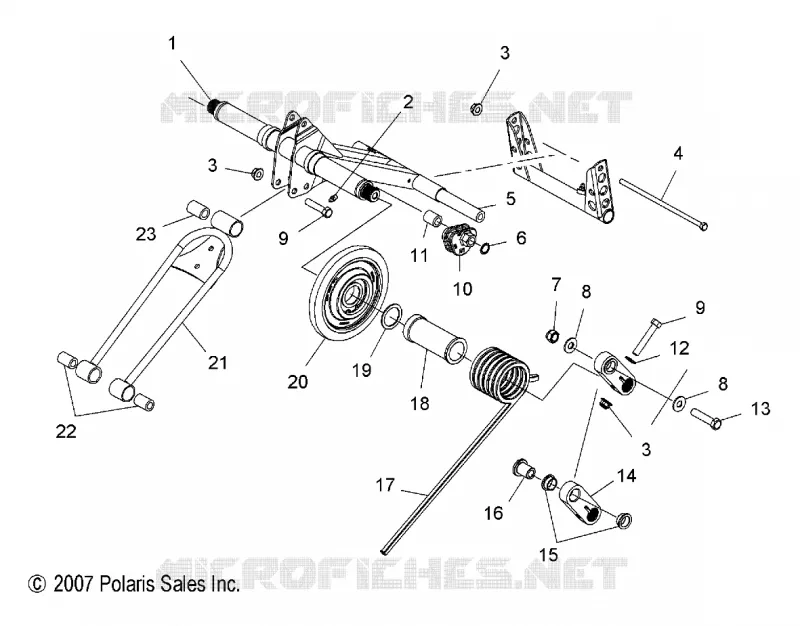

Find the detailed REAR SUSPENSION TORQUE ARM (DRAGON) POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
