HEADLIGHT for POLARIS 750 IQ TURBO DRAGON / LX from 2008

HEADLIGHT

1

HEADLIGHT ASSEMBLY

2410397

9999999

Not Available

2

HEADLIGHT BULB

2870448

$36,74 Unit Price incl. VAT

3

BAIL-WIRE 044036

5247526

9999999

Not Available

4

BOOT-H4 LARGE 044024

5412479

9999999

Not Available

5

DOME-HDLHT CHROME 044018

5435560

9990005

Not Available

6

SCREW-4.85-2.85X15 5953681

7518350

9999999

Not Available

7

COVER-DOME 044017

5412611

$52,49 Unit Price incl. VAT

8

KNOB-044031

5435247

9999999

Not Available

9

SPRING-COMPRESSION

7042323

9999999

Not Available

10

RETAINER-HEADLIGHT ADJ.

5248391

9999999

Not Available

11

SCREW

7512026

$2,09 Unit Price incl. VAT

12

SCREW

7512068

$4,19 Unit Price incl. VAT

13

NUT-#10 U-TYPE A(.065-.087)

7670112

$4,19 Unit Price incl. VAT

14

SCR-10X 5/8 TX PN PLST-243

7518577

$4,19 Unit Price incl. VAT

15

ROD-ADJ HDLGHT

5136116

9999999

Not Available

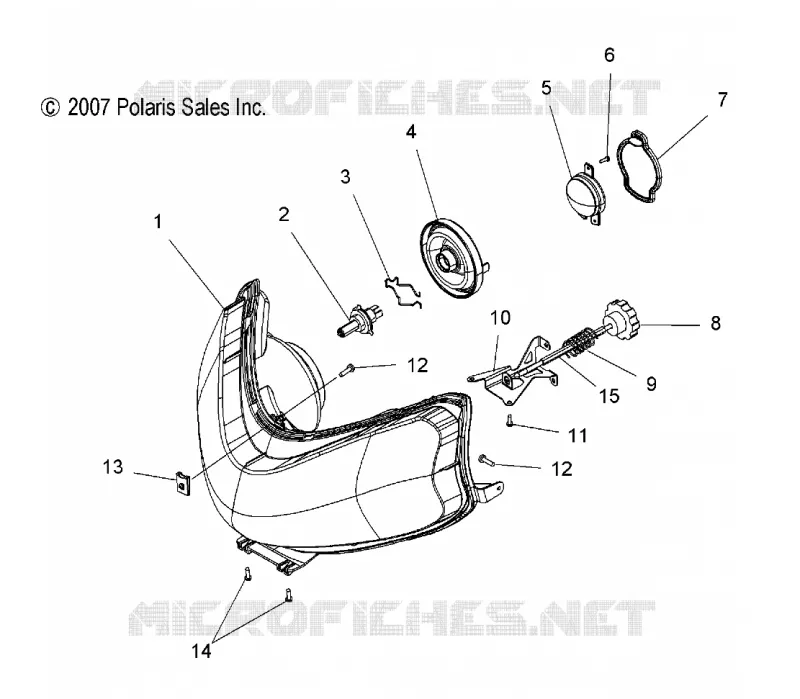

Find the detailed HEADLIGHT POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
