DRIVE TRAIN, DRIVE SHAFT AND JACKSHAFT for POLARIS 750 IQ TURBO DRAGON / LX from 2008

DRIVE TRAIN, PRIMARY CLUTCH

DRIVE TRAIN, SECONDARY CLUTCH

DRIVE TRAIN, DRIVE SHAFT AND JACKSHAFT

1

BOLT

7515369

$9,44 Unit Price incl. VAT

2

WASHER FLAT

7555701

$7,34 Unit Price incl. VAT

3

WASHER FLAT(10)

7555734

$1,56 Unit Price incl. VAT

4

WASHER

7555957

$9,44 Unit Price incl. VAT

5

INPUT SHAFT SPACER; .875

5135611

$15,74 Unit Price incl. VAT

6

DRIVE BELT

3211121

$192,14 Unit Price incl. VAT

7

WASHER

7555917

$4,19 Unit Price incl. VAT

7

WASHER

7555864

$4,19 Unit Price incl. VAT

7

BUSHING

7556509

$3,14 Unit Price incl. VAT

8

FLANGETTE

5222751

9999999

Not Available

9

BEARING; 1 MM X 52 MM X 15 MM

3514617

$54,59 Unit Price incl. VAT

10

RIVET

7661637

$2,09 Unit Price incl. VAT

11

MNT-JACKSHAFT BRGLHMACH

5134106

9999999

Not Available

12

ASM-JACKSHAFT W/BRG

1332453

9999999

Not Available

13

RING-RTNG 7200-150

7710555

9999999

Not Available

14

SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]

*******

Not Available

15

FLANGETTE ASSEMBLY WITH SCREWS

1014299

$68,24 Unit Price incl. VAT

16

SCREW

7516733

$11,54 Unit Price incl. VAT

17

BOLT-CARR 5/16-18X5/8 GR5-Y

7518049

$7,34 Unit Price incl. VAT

18

PALNUT

7547030

$9,44 Unit Price incl. VAT

19

DRIVE PICKUP HOUSING

5246960

$47,24 Unit Price incl. VAT

20

SCR-5/16-18-1 UNC 2A TRX-P30-Y

7518444

$7,34 Unit Price incl. VAT

21

NYLOK NUT

7542324

$1,56 Unit Price incl. VAT

22

SPEED PICKUP SENSOR

2410376

9999999

Not Available

23

BOLT

7512232

$2,09 Unit Price incl. VAT

24

JACKSHAFT GASKET; BLACK

5811095

9999999

Not Available

25

WHEEL-PICKUP SPEEDO 9 TOOTH

5240013

5136619

$62,99 Unit Price incl. VAT

26

BEARING-25MM SPH OD LUBE

3514448

3514617

$54,59 Unit Price incl. VAT

27

ASM-DRVSHAFT TUBULAR 9T REINF

1590412

9999999

Not Available

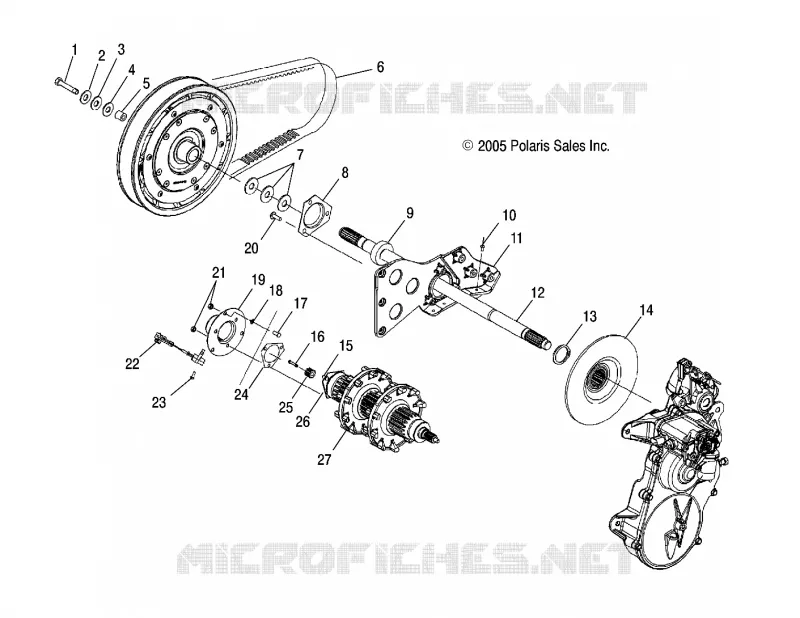

Find the detailed DRIVE TRAIN, DRIVE SHAFT AND JACKSHAFT POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
