DRIVE TRAIN, CHAIN DRIVE for POLARIS MOUNTAIN HORSE 120 RAW

SUSPENSION, FRONT TORQUE ARM

REFERENCES, OWNERS MANUAL

SCREW

7515177

$5,76 Unit Price incl. VAT

WASHER .281 X 1.00 X 0.51

7556329

$2,09 Unit Price incl. VAT

IDLER SPROCKET; 15 TOOTH

3222277

9999999

Not Available

ASM-TENSION ENGINE CHAIN

1333895

9999999

Not Available

SCR-3/8 16X1 ALLN FLAT YZP

7520669

9999999

Not Available

SCREW(10)

7515511

$7,34 Unit Price incl. VAT

NUT

7542440

7542404

$3,14 Unit Price incl. VAT

BLOCK-IDLER BOLT ADJ.

5130530

$62,99 Unit Price incl. VAT

SCREW

7515177

$5,76 Unit Price incl. VAT

BOLT-CRG-7/16-14X1.5;GR8;YZP

7520656

9999999

Not Available

CHAIN CASE IDLER STANDOFF

5141255

9999999

Not Available

NUT-7/16 14 HEX GR8 YZP

7547871

9999999

Not Available

CHAIN-ENGINE 520P 70 LINK

3222289

9999999

Not Available

LINK-MASTER 520P SKJ

3222290

9999999

Not Available

CHAIN-CASE 520P 54 LINK

3222275

9999999

Not Available

SCR-5/16 18X1.25 ALLN BTN YZ

7520674

9999999

Not Available

SEAL-CHAIN CASECASE

5416292

9999999

Not Available

COVER-CHAINCASE MTN HORSE

1333894

Not Available

NYLOK NUT

7542324

$1,56 Unit Price incl. VAT

ENGINE CHAIN GUIDE

5453512

9999999

Not Available

ENGINE CHAIN GUIDE; LARGE

5454242

9999999

Not Available

INSERT-5/16-18 ROUND DBL STAR

7547893

9999999

Not Available

BOLT

7515317

$9,44 Unit Price incl. VAT

FLAT WASHER

7555960

$7,34 Unit Price incl. VAT

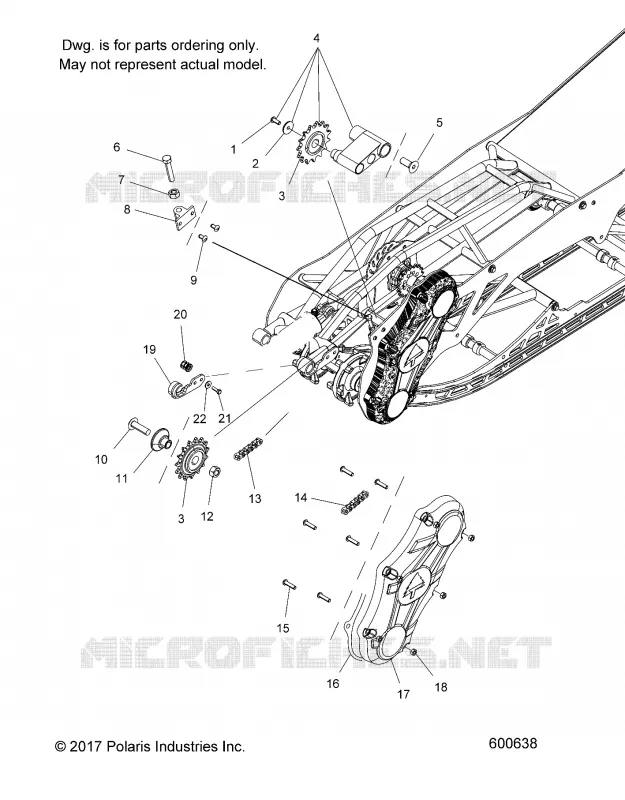

Find the detailed DRIVE TRAIN, CHAIN DRIVE POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
