STEERING, SKI ASM. for POLARIS MOUNTAIN HORSE 120 RAW

SPINDLE WELD; MATTE BLACK

1824637458

Not Available

WASHER 10.5 X 24 X 1.2446

7556545

$6,29 Unit Price incl. VAT

NUT-M10X1.5 HFN NYLOC ZOD

7547423

$7,34 Unit Price incl. VAT

SCR-HXFL-M10X1.5X80 10.9 ZY3

7519143

$19,94 Unit Price incl. VAT

BLOCK SPINDLE ASSEMBLY

1824638

9999999

Not Available

SKI PIVOT BUSHING

5438460

$27,29 Unit Price incl. VAT

CENTER SPINDLE BLOCK SPACER

5141778

9999999

Not Available

STOP-SKI RUBBER TSLD

5416249

5418546

$28,86 Unit Price incl. VAT

PLASTIC SKI BUSHING

5136908

$27,29 Unit Price incl. VAT

ASM-SKI 11.5 WIDE SVC BLK

1824633070

Not Available

WASHER .406 X 1.25 X .125

7556130

$11,54 Unit Price incl. VAT

NYLOC OLIVE NUT; 8 MM X 1.25 MM

7547332

$7,34 Unit Price incl. VAT

SKAG; LEFT

1824635329

Not Available

SKAG-CENTER HARD ECOAT

1824634329

Not Available

SKAG-RH HARD ECOAT

1824636329

Not Available

NUT-M6X1.0 FLG-NYLOC-OLIVE D

7547339

$2,09 Unit Price incl. VAT

CL8.8 OLV-D

7518906

$6,29 Unit Price incl. VAT

SCR-HXFL-M6X1.0X105 8.8 ZOD

7520233

$11,54 Unit Price incl. VAT

PLASTIC SKI TOE; GLOSS BLACK

5435681070

Not Available

BOLT 10 MM X 1.5 MM X 155 MM

7519098

$23,09 Unit Price incl. VAT

BUSHING 15.88 X 10.13 X 76.20

5136910

$13,64 Unit Price incl. VAT

BRKT-SUPPORT SKI RUBBER ECOAT

5265239329

Not Available

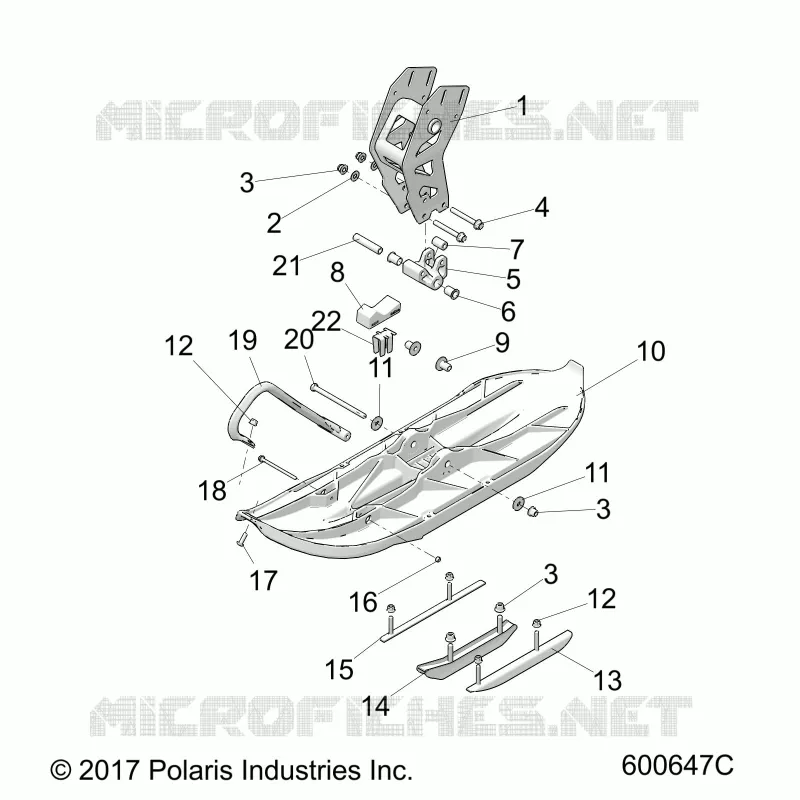

Find the detailed STEERING, SKI ASM. POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
