REAR SUSPENSION ASM. for POLARIS MOUNTAIN HORSE 120 RAW

INSTALL KIT (SVC)

SUSPENSION, FRONT TORQUE ARM

BOLT

7515440

$7,34 Unit Price incl. VAT

SPRING LOCK WASHER

7552603

$1,56 Unit Price incl. VAT

TRACK; 120 X 2.5

5416238

9999999

Not Available

SHAFT-FTA LOWER SOLID

5141325

9999999

Not Available

SPRING WASHER; .406 X 1.25 X .125

7556490

$9,44 Unit Price incl. VAT

IDLER SPACER

5436496

$11,54 Unit Price incl. VAT

SHAFT-REAR AXLE SOLID

5141328

9999999

Not Available

CENTER IDLER SPACER; LIGHTWEIGHT

5338618

$13,64 Unit Price incl. VAT

SPACER; IDLER

5432535

$20,99 Unit Price incl. VAT

BUSHING

7555918

$3,14 Unit Price incl. VAT

BEARING-.7874X1.6535X.4724 NTN

3514384

3515142

$34,64 Unit Price incl. VAT

RETAINING RING

7710444

$15,74 Unit Price incl. VAT

ASM-WHEEL WEB 7.25 6004 BLK

1590431070

Not Available

BUSHING-TSLD SPINDLE

5454020

9999999

Not Available

SHAFT-PVT LOWER SOLID

5141326

9999999

Not Available

PIVOT ARM WELD; REAR; MATTE BLACK; 12.5

1543933458

Not Available

SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]

*******

Not Available

SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]

*******

Not Available

SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]

*******

Not Available

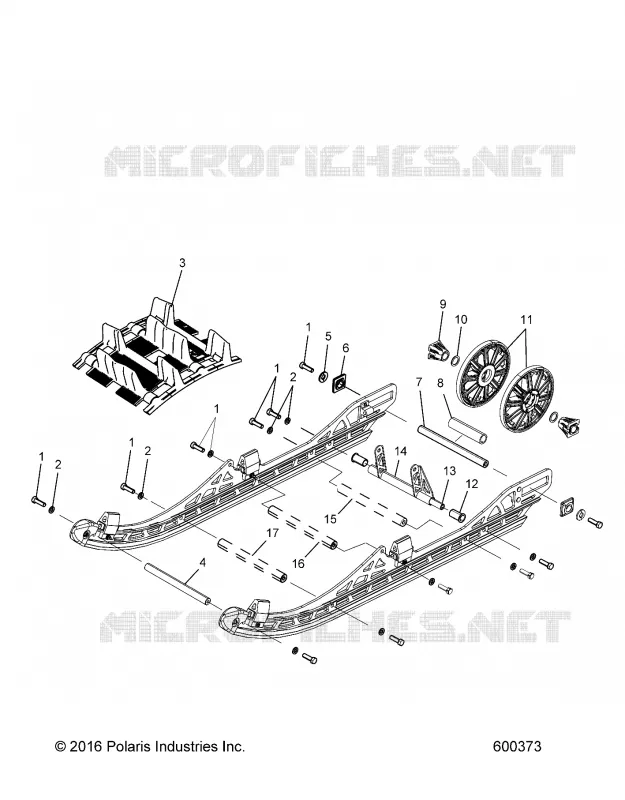

Find the detailed REAR SUSPENSION ASM. POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
