1
Engine displacement
700
2
Year
2007
3
Trim
RANGER 4X4 700 EFI/LE - R07RH68AD/AG/AH/AK/AL/AO/AP/AW
4
Parts Catalog
BUMPER NERF BAR
5

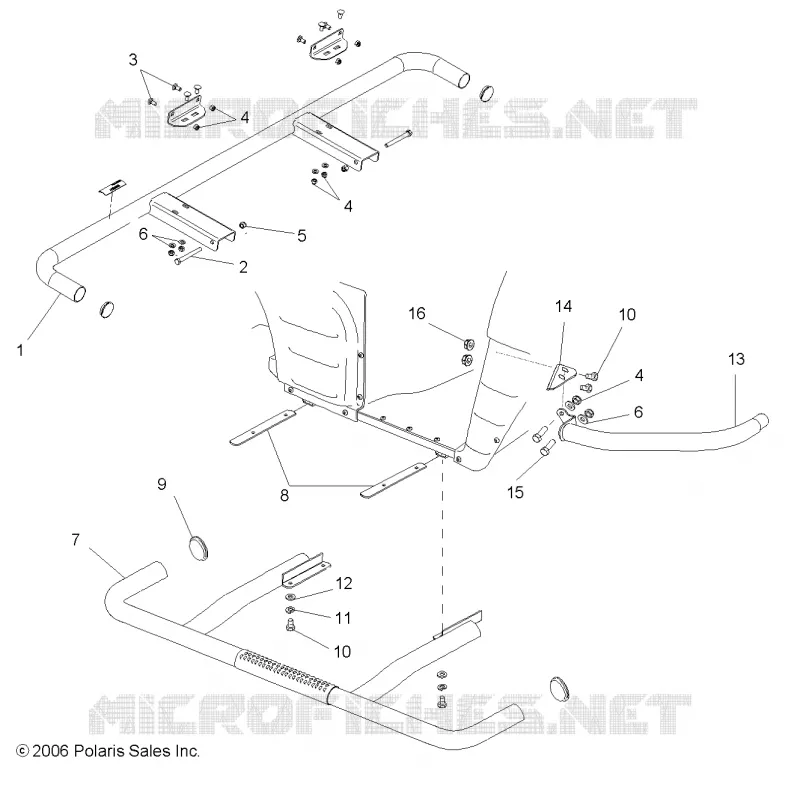

Parts Diagram
Parts Catalog
INLET
by
PARKING BRAKE (BUILT BEFORE 1/15/07)
BUMPER NERF BAR
1
2
3
4
4
4
5
6
6
7
7
8
9
10
10
11
12
13
13
14
14
15
16
1
1
2
3
4
5
1
WELD-BUMPER REAR I.RED
1015925293
Not Available
2
SCREW
7512463
9999999
Not Available
3
BOLT
7517428
$4,19 Unit Price incl. VAT
4
NYLOK NUT
7542324
$1,56 Unit Price incl. VAT
5
NYLOK NUT
7542451
$2,09 Unit Price incl. VAT
6
FLAT WASHER
7558402
$1,56 Unit Price incl. VAT
7
WELD-NERF BAR;RH;I.RED
1015924293
Not Available
7
WELD-NERF BAR;LH;I.RED
1015923293
Not Available
8
BRKT-NERF BAR;BLK
5251026067
Not Available
9
END BUMPER CAP
5433305
$10,49 Unit Price incl. VAT
10
SCREW
7512490
$7,34 Unit Price incl. VAT
11
SPRING LOCK WASHER
7552603
$1,56 Unit Price incl. VAT
12
FLAT WASHER
7555806
$1,56 Unit Price incl. VAT
13
WELD-BRUSHGUARD EXT LH I.RED
1015921293
Not Available
13
WELD-BRUSHGUARD EXT RH I.RED
1015922293
Not Available
14
BRKT-BRUSHGUARD EXT RH BLK
5251025067
Not Available
14
BRKT-BRUSHGUARD EXT LH BLK
5251024067
Not Available
15
SCREW(10)
7512310
$4,19 Unit Price incl. VAT
16
FLANGED NUT; 3/8-16
7547180
$4,19 Unit Price incl. VAT

Find the detailed BUMPER NERF BAR POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
