Engine displacement
700
2
Year
2007
3
Trim
RANGER 4X4 700 EFI/LE - R07RH68AD/AG/AH/AK/AL/AO/AP/AW
4
Parts Catalog
REAR SUSPENSION
5
Parts Diagram
Parts Catalog
FRONT STRUT
by
TAILGATE
REAR SUSPENSION
1
1
1
1
2
2
2
2
2
2
3
3
3
3
4
4
4
4
4
4
5
6
6
2
2
8
9
9
9
9
10
11
11
11
12
13
14
15
16
16
17
18
19
20
21
22
23
24
24
24
24
24
24
1
BOLT
7515472
$4,19 Unit Price incl. VAT
2
NYLOCK NUT
7542439
$2,09 Unit Price incl. VAT
3
SHORT A-ARM SHAFT
5020826
$23,09 Unit Price incl. VAT
4
BUSHING-A-ARM-SHORT BLK
5434548
5439270
$4,19 Unit Price incl. VAT
5
RETAINER-SPRING
5631887
5251753
$19,94 Unit Price incl. VAT
6
SCREW
7515415
9999999
Not Available
7
NYLOCK NUT
7542439
$2,09 Unit Price incl. VAT
8
SHOCK; REAR
7042333
9999999
Not Available
9
SPRING-240#/IN 12.75 C.SNBRST
7042334446
Not Available
9
SPRING-240#/IN 12.75 LG I RED
7042334293
Not Available
9
SPRING-240#/IN 12.75 CLD SLVR
7042334385
Not Available
9
SPRING-240#/12.75 BLK
7042334067
Not Available
10
CAM ADJUSTMENT SPRING
5630551
$68,24 Unit Price incl. VAT
11
CONTROL ARM; UPPER
1014948067
Not Available
11
WELD-CONTROL ARM;UPPER;C.SNBST
1014948446
Not Available
11
CONTROL ARM;UPPR;CLD SLVR
1014948385
Not Available
12
SHAFT UPPER A-ARM
5134549
$52,49 Unit Price incl. VAT
13
CAP SCREW
7512365
$2,09 Unit Price incl. VAT
14
SPRING LOCK WASHER
7552901
$2,09 Unit Price incl. VAT
15
FLAT WASHER
7558402
$1,56 Unit Price incl. VAT
16
WHEEL CARRIER BEARING; MACHINED
5134531
$182,69 Unit Price incl. VAT
16
WHEEL CARRIER BEARING; LEFT; MACHINED
5134741
$182,69 Unit Price incl. VAT
17
BEARING
3585502
3514635
$73,49 Unit Price incl. VAT
18
RETAINING RING
7710440
$18,89 Unit Price incl. VAT
19
BOLT
7515514
$13,64 Unit Price incl. VAT
20
A-ARM SHAFT; LOWER
5134616
$52,49 Unit Price incl. VAT
21
HEX CAP SCREW; 3/8-24 X 5.50
7518634
9999999
Not Available
22
SCREW
7512084
$2,09 Unit Price incl. VAT
23
CV SHIELD; REAR; GLOSS BLACK
5436014070
Not Available
24
WELD-CONTROL ARM;LWR;LH;CSNBST
1014674446
Not Available
24
WELD-CNTRL ARM;LWR;RH;CLD SLVR
1014675385
Not Available
24
CONTROL ARM LOWER LEFT
1014674067
Not Available
24
WELD-CONTROL ARM;LWR;RH;CSNBST
1014675446
Not Available
24
CONTROL ARM LOWER RIGHT
1014675067
Not Available
24
CONTROL ARM;LWR;LH;CLD SLVR
1014674385
Not Available

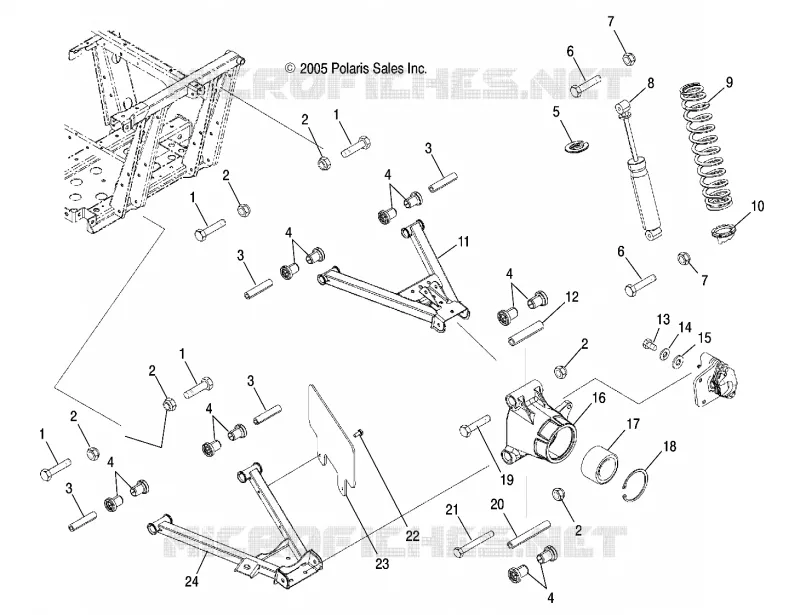

Find the detailed REAR SUSPENSION POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.
