Engine displacement
800
2
Year
2005
3
Trim
SPORTSMAN 800 EFI - A05MH76AC/AU/AW
4
Parts Catalog
REAR RACK MOUNTING
5
Parts Diagram
Parts Catalog
TAILLAMPS / HEADLIGHTS
by
STARTING MOTOR
REAR RACK MOUNTING
1
1
2
2
3
4
5
6
7
8
9
10
11
12
13
13
14
15
16
16
17
18
19
20
1
1
2
2
3
3
3
3
3
3
3
4
5
5
6
7
8
9
10
11
12
13
14
1
SCREW
7517686
$3,14 Unit Price incl. VAT
2
WASHER
7555935
$4,19 Unit Price incl. VAT
3
SCR-5/16-18X3.00 TR/TX-M
7517983
$17,84 Unit Price incl. VAT
4
CHANNEL-REAR RACK;FLATBLKWRKL
5248469418
Not Available
5
SCR-1/4-20X1.50-HX/TAP-R MAG
7518418
$7,34 Unit Price incl. VAT
6
RACK EXTENDER; REAR
1014768418
Not Available
7
SCREW
7517208
$3,66 Unit Price incl. VAT
8
RACK ASMREARBLK
2632867070
Not Available
9
SCR-5/16-18X2.00 TX-M
7518213
9999999
Not Available
10
SPACER
5435959
9999999
Not Available
11
WASHER; FLAT
7555843
7558302
$3,14 Unit Price incl. VAT
12
NYLOK NUT
7542324
$1,56 Unit Price incl. VAT
13
CHANNEL; FRONT; FLAT BLACK
5248471418
Not Available
14
SPACER; .375 X .75 X 1.56
5334092
9999999
Not Available
15
REAR RACK SUPPORT; GS BLK
1014668067
Not Available
16
BOLT-5/16-18X1-3/4 HXFLNG GR5
7518341
$9,44 Unit Price incl. VAT
17
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
18
FLANGE NUT
7542343
$9,44 Unit Price incl. VAT
19
NYLOK FLANGED NUT
7542153
$3,14 Unit Price incl. VAT
20
SCREW
7517230
$2,09 Unit Price incl. VAT

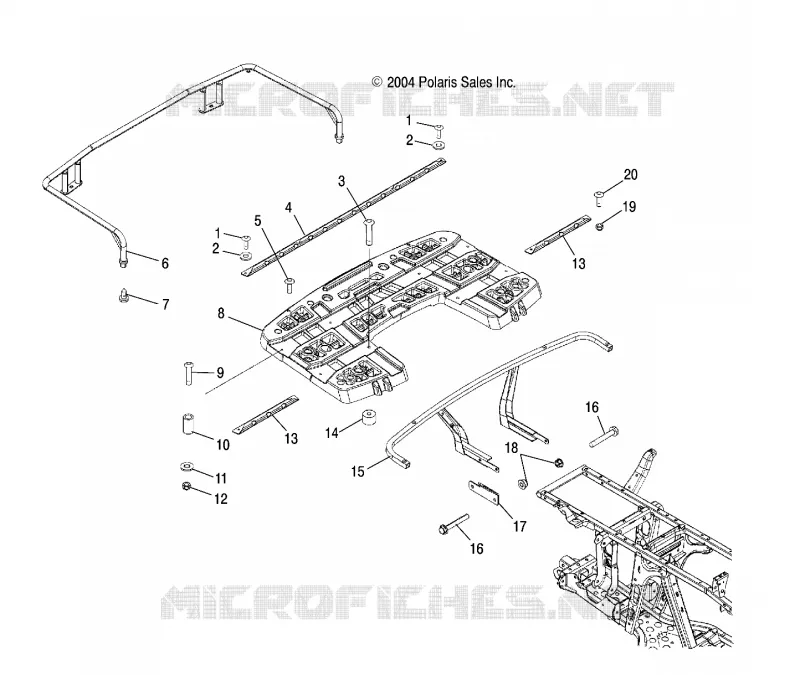

Find the detailed REAR RACK MOUNTING POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.
