Engine displacement
800
2
Year
2005
3
Trim
SPORTSMAN 800 EFI - A05MH76AC/AU/AW
4
Parts Catalog
A-ARM AND STRUT MOUNTING
5
Parts Diagram
Parts Catalog
MASTER CYLINDER, REAR AND FOOT PEDAL
by
REAR SUSPENSION
A-ARM AND STRUT MOUNTING
1
2
3
4
5
6
6
7
8
8
9
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
24
25
25
26
26
27
28
28
29
1
2
2
3
4
5
6
7
8
9
10
11
1
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
2
BALL-JOINT 52 DEG
7080927
7061306
$52,49 Unit Price incl. VAT
3
BALL JOINT BRACKET
5211121
$62,99 Unit Price incl. VAT
4
BOOT; RUBBER
5410548
5412658
$9,44 Unit Price incl. VAT
5
SOCKET BOLT
7512284
$2,09 Unit Price incl. VAT
6
A FRAME KIT; LEFT
2202865
$257,24 Unit Price incl. VAT
6
A-FRAME KIT; RIGHT
2202866
$257,24 Unit Price incl. VAT
7
CASTLE NUT
7542438
$3,14 Unit Price incl. VAT
8
COTTER PIN
7661203
$2,09 Unit Price incl. VAT
9
CV SHIELD FRONT RIGHT SIDE GLOSS BLACK
5435029070
Not Available
9
CV SHIELD; FRONT; LEFT SIDE; GLOSS BLACK
5435028070
Not Available
10
SCREW
7512084
$2,09 Unit Price incl. VAT
11
BOLT 10 MM X 1.25 MM X 65 MM
7517909
$10,49 Unit Price incl. VAT
12
WASHER
7556099
$3,14 Unit Price incl. VAT
13
NUT-M10X1.25-HX-LOCK-Y
7547177
7548155
$1,56 Unit Price incl. VAT
14
BOOT SEAL ROD END 10MM
5411920
5412929
$20,99 Unit Price incl. VAT
15
ROD END 10MM 1/2-20LH 42 DEG
7061054
7061138
$104,99 Unit Price incl. VAT
16
NUT JAM; LEFT
7547028
$4,19 Unit Price incl. VAT
17
TIE ROD; 1/2- 20 X 12.21
5134242
$83,99 Unit Price incl. VAT
18
NUT-JAM(10)
7542711
$4,19 Unit Price incl. VAT
19
ROD END;RH
7061034
7061139
$115,49 Unit Price incl. VAT
20
SEAL BOOT ROD END 1/2 IN
5411291
5412928
$20,99 Unit Price incl. VAT
21
TIE ROD ASM1/2-20X13.4
1821498
1822851
$204,74 Unit Price incl. VAT
22
SCREW
7515415
9999999
Not Available
23
NYLOCK NUT
7542439
$2,09 Unit Price incl. VAT
24
SCREW
7512492
$2,09 Unit Price incl. VAT
25
SPRING LOCK WASHER
7552603
$1,56 Unit Price incl. VAT
26
WASHER
7555832
$4,19 Unit Price incl. VAT
27
SHAFT-A-ARM(4X4)
5133806
$52,49 Unit Price incl. VAT
28
BUSHING-A-ARM LONG BLK
5434551
5436973
$9,44 Unit Price incl. VAT
29
FITTING LUBRICATION THREADED(1
7080433
$2,09 Unit Price incl. VAT

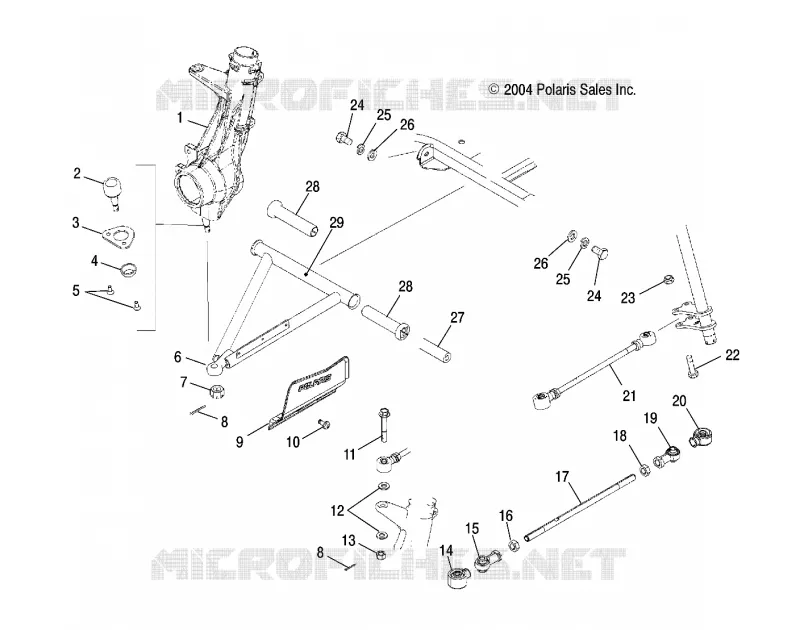

Find the detailed A-ARM AND STRUT MOUNTING POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.
