BRAKE LINE KIT; REAR
2202709
$167,99 Unit Price incl. VAT
-
BRAKE LINE KIT; REAR; RIGHT
2202644
$188,99 Unit Price incl. VAT
1
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
2
SEAL (10)
5410988
9999999
Not Available
3
BRAKE LINE KIT; REAR; RIGHT
2202644
$188,99 Unit Price incl. VAT
3
LINE-BREAK HARDLINE SP
1910805
9999999
Not Available
4
BANJO BOLT; 10 MM X 1.00
1910499
$10,49 Unit Price incl. VAT
5
FLAT WASHER
7558402
$1,56 Unit Price incl. VAT
6
SPRING LOCK WASHER
7552901
$2,09 Unit Price incl. VAT
7
CAP SCREW
7512365
$2,09 Unit Price incl. VAT
8
CLIP-RETAINING DUAL .250 LINE
7670126
$9,44 Unit Price incl. VAT
9
SCREW 10-24X5/8 (10)
7517756
$2,09 Unit Price incl. VAT
10
CABLE TIE
7080138
$5,24 Unit Price incl. VAT
11
RIVET
7621462
$2,09 Unit Price incl. VAT
12
CLAMP-CABLE NYLON 5/16
7080960
9999999
Not Available
13
HOSE CLAMP
7080003
$2,09 Unit Price incl. VAT
14
SCREW
7517386
$2,09 Unit Price incl. VAT
15
BRAKE RESERVOIR KIT; REAR
1930854
9999999
Not Available
16
HOSE RES. 1/4 ID 5.78 LG
1910438
9999999
Not Available
17
ASM-MASTER CYLINDERBRAKEREAR
1910790
1911113
$325,49 Unit Price incl. VAT
18
BRAKE LINE; REAR
1910766
9999999
Not Available
19
SPRING
7042075
9999999
Not Available
20
SCREW
7515158
$9,44 Unit Price incl. VAT
21
COTTER PIN
7661401
$1,56 Unit Price incl. VAT
22
WASHER
7555919
$7,34 Unit Price incl. VAT
23
PEDAL PIVOT BUSHING
5433189
$7,34 Unit Price incl. VAT
24
BRAKE RODBLK
1013415067
Not Available
25
TORSION SPRING; BRAKE
7041750
$16,79 Unit Price incl. VAT
26
WELD-BRAKE MOUNT;BLK
1013414067
Not Available

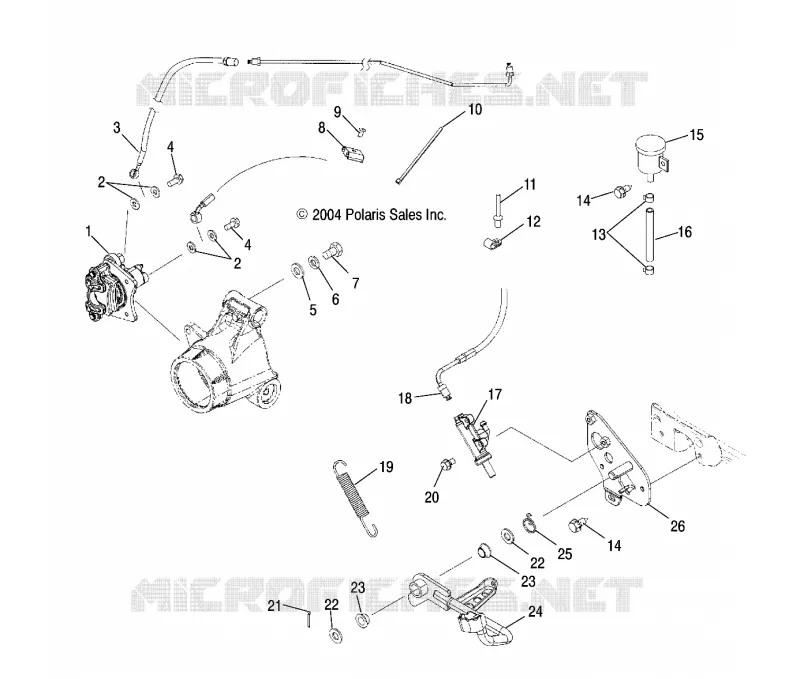

Find the detailed MASTER CYLINDER, REAR AND FOOT PEDAL POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.
