FUEL SYSTEM, FUEL TANK AND FUEL LINES for POLARIS 750 IQ WIDETRAK from 2009

STEERING POST ASM. AND STEERING HOOP

FRONT SUSPENSION

FUEL SYSTEM, FUEL TANK AND FUEL LINES

1

WRAP-WEAR RST;SVC;1/2 ;150CM

5521745150

Not Available

1

ASM-FUEL LINE;FLTR/TANK;W/WRAP

2520920

9999999

Not Available

2

WRAP-WEAR RST;SVC;1/2 ;150CM

5521745150

Not Available

2

ASM-FUEL LINE;RTRN W/WRAP;WT

2520919

9999999

Not Available

3

PLASTIC FLOAT

5437046

$18,89 Unit Price incl. VAT

3

ASM-PUMP/FLNG FS WIDE 3 BAR

2520862

9999999

Not Available

4

NUT-PFA

5436628

5145716

$51,23 Unit Price incl. VAT

5

PFA GASKET

5413063

5415105

$94,49 Unit Price incl. VAT

6

CAP-FUEL TANK"PREMIUM"

5435534

5450390

$19,94 Unit Price incl. VAT

7

TANK ASSEMBLY

2520861

9999999

Not Available

8

BOLT

7512277

$9,44 Unit Price incl. VAT

9

FLAT WASHER

7555960

$7,34 Unit Price incl. VAT

10

BATTERY PAD

5810290

5810290-CO

$13,64 Unit Price incl. VAT

11

LINE-VENT 5/16 ID 72 CM

845012672

Not Available

12

ASM-FUEL LINERAILS/PW/T

2520887

9999999

Not Available

13

FUEL FILTER

2520424

9999999

Not Available

14

SCREW

7512208

9999999

Not Available

15

HOSE CLAMP

7080807

$17,84 Unit Price incl. VAT

16

PAD-RUBBER

5811716

9999999

Not Available

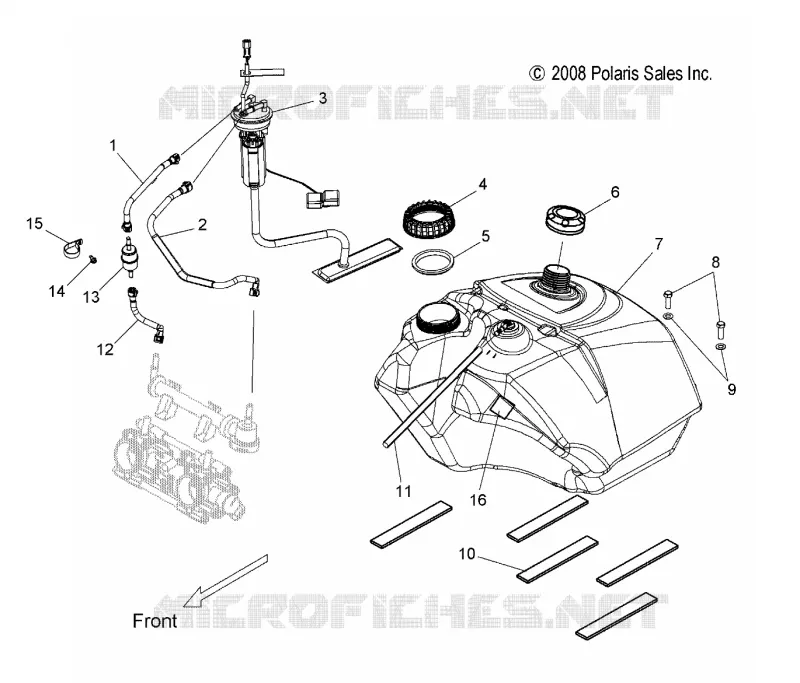

Find the detailed FUEL SYSTEM, FUEL TANK AND FUEL LINES POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
