STEERING TIE ROD ASM. for POLARIS 750 IQ WIDETRAK from 2009

STEERING TIE ROD ASM.

1

NYLOK NUT

7547263

$6,29 Unit Price incl. VAT

2

FLAT WASHER

7555806

$1,56 Unit Price incl. VAT

3

ROD END-3/8;PL;75 ;1.00;RH

7061164

$99,74 Unit Price incl. VAT

4

NUT HEX RH(10)

7542401

$4,19 Unit Price incl. VAT

5

TIE ROD

5334667

$73,49 Unit Price incl. VAT

6

NUT LH (10)

7542424

$1,56 Unit Price incl. VAT

7

ROD END-3/8;PL;75 LH;750 STUD

7061163

$99,74 Unit Price incl. VAT

8

ASM. ARM-IDLER

1821419

9999999

Not Available

9

REDUCER BUSHING; 12 MM

5132106

$13,64 Unit Price incl. VAT

10

BALL BEARING

3514320

$27,29 Unit Price incl. VAT

11

SPACER-TUBE PITMAN/IDLER ARMS

5135452

9999999

Not Available

12

SCR-3/8-24X1.25 TX/TRUSSGR5-Y

7518372

9999999

Not Available

13

SCR-3/8-16X3.25 FLG HG5 Z

7518277

$30,23 Unit Price incl. VAT

14

FIXED LINK; 9.30

7061152

9999999

Not Available

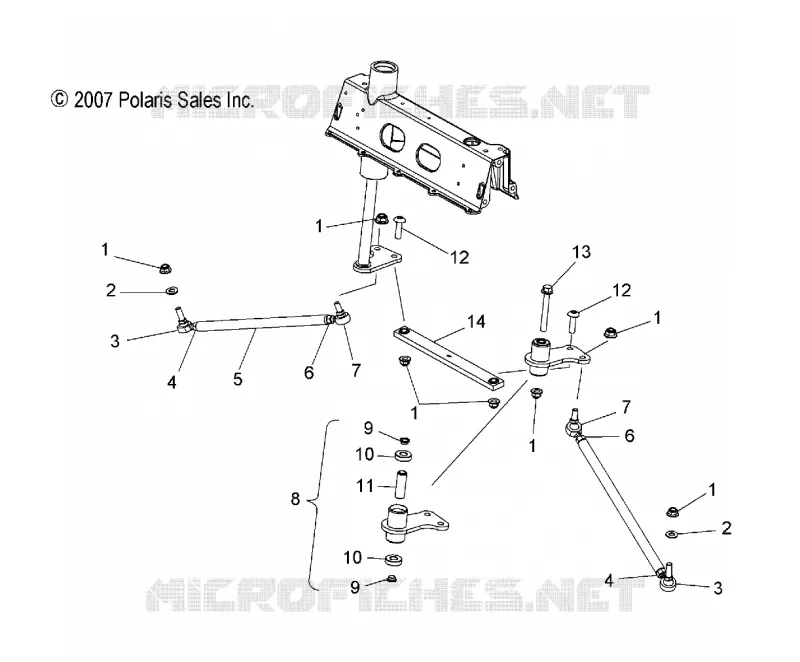

Find the detailed STEERING TIE ROD ASM. POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
