DRIVE TRAIN, DRIVE SHAFT ASM. AND JACKSHAFT ASM. for POLARIS 750 IQ WIDETRAK from 2009

CHASSIS, SHOCK TOWERS

DRIVE TRAIN, SHIFT LINKAGE

DRIVE TRAIN, DRIVE SHAFT ASM. AND JACKSHAFT ASM.

1

CARRIAGE BOLT

7512377

$9,44 Unit Price incl. VAT

2

FLANGETTE; GREASABLE

5222647

$47,24 Unit Price incl. VAT

3

GASKET JACKSHAFT 2-BOLT

5830135

$5,24 Unit Price incl. VAT

4

FLANGETTE

5222393

5270869

$36,74 Unit Price incl. VAT

5

FLANGE NUT

7542343

$9,44 Unit Price incl. VAT

6

JACKSHAFT WIDE

6230393

9999999

Not Available

7

COUPLER W/ GREASE ZERK ASM 19 TOOTH

1332260

$325,49 Unit Price incl. VAT

7

GREASE ZERK

7080437

9999999

Not Available

7

DRIVESHAFT ASSEMBLY; WIDE

1590460

9999999

Not Available

7

BEARING-25MM SPH OD LUBE

3514448

3514617

$54,59 Unit Price incl. VAT

7

FLANGETTE W/ SCREWS ASSEMBLY

1012945

9999999

Not Available

8

PICKUP WHEEL; SPEEDO; 9 TOOTH

5136619

$62,99 Unit Price incl. VAT

9

BOLT-5/16-18X1-1/2 HXFLNG;P-30

7518425

$7,34 Unit Price incl. VAT

10

GASKET DRIVE ADAPTOR

5830012

$4,19 Unit Price incl. VAT

11

OFFSET FLANGETTE WITH HOLE

5243529

9999999

Not Available

12

HOUSING-DRIVE PICKUP

5251857

9999999

Not Available

13

NYLOK NUT

7542324

$1,56 Unit Price incl. VAT

14

25 MM SET SCR BEARING; LUBE

3514636

$34,64 Unit Price incl. VAT

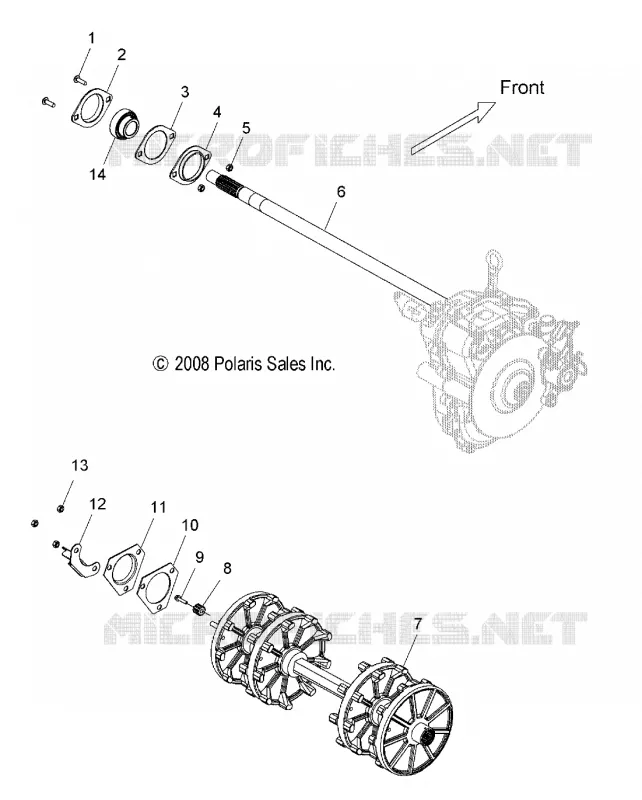

Find the detailed DRIVE TRAIN, DRIVE SHAFT ASM. AND JACKSHAFT ASM. POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
