1
Engine displacement
2000
2
Year
2023
3
Trim
SLINGSHOT SL / SLR / R
4
Parts Catalog

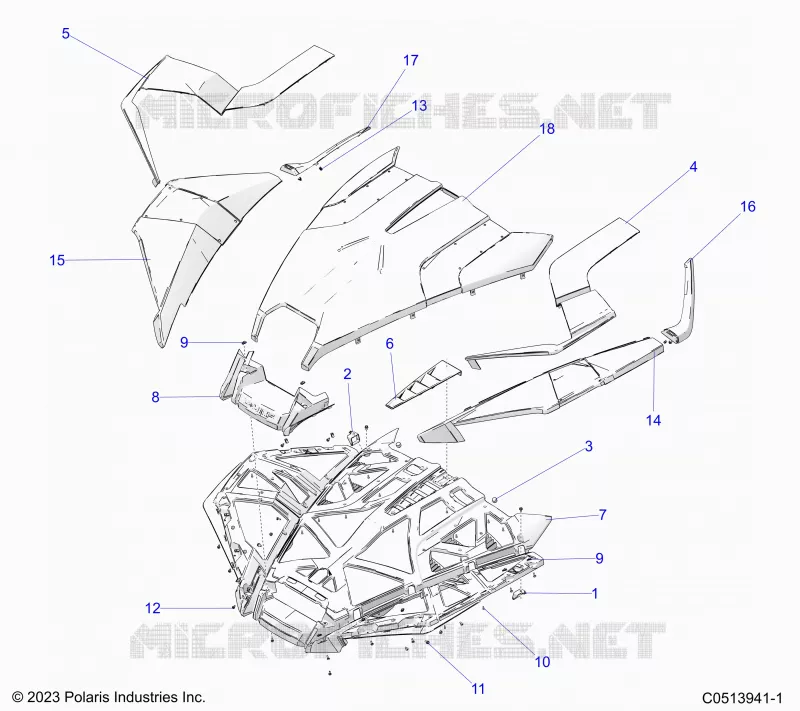

HOOD, STANDARD
5
Parts Diagram
Parts Catalog
HOOD HINGE ASM.
by
HOOD, VENTED (SL/SLR/R OPTION)
HOOD, STANDARD
1
2
3
4
4
4
4
4
4
5
5
5
5
5
5
6
7
8
8
9
9
10
11
12
13
14
14
14
14
15
15
15
15
16
16
16
16
16
16
16
16
16
17
17
17
17
17
17
17
17
17
18
18
18
18
18
1
WELD-HOOD LATCH STRIKER;RR;LH
1025581
$73,49 Unit Price incl. VAT
2
WELD-HOOD LATCH STRIKER;RR;RH
1025582
$73,49 Unit Price incl. VAT
3
BUMPER-RUBBER .62 STEALTH
5411435
$6,29 Unit Price incl. VAT
4
PANEL-ACCNT LH PNTD CARIBN TL
5453708882
Not Available
4
PANEL-ACCENT LH PAINTED LFTLM
5453708801
Not Available
4
ACCENT PANNEL; LEFT
5439642
$629,99 Unit Price incl. VAT
4
PANEL-ACCENT LH PNTD POL BLU
5453708795
Not Available
4
PANEL-ACCENT LH PNTD SLTH GRAY
5453708804
Not Available
4
PANEL-ACCENT LH PAINTED CRS BK
5453708266
Not Available
5
ACCENT PANEL; RIGHT
5439643
$629,99 Unit Price incl. VAT
5
PANEL-ACCENT RH PNTD POL BLU
5453709795
Not Available
5
PANEL-ACCENT RH PNTD SLTH GRAY
5453709804
Not Available
5
PANEL-ACCENT RH PAINTED LFTLM
5453709801
Not Available
5
PANEL-ACCENT RH PAINTED CRS BK
5453709266
Not Available
5
PANEL-ACCNT RH PNTD CARIBN TL
5453709882
Not Available
6
CENTER HOOD VENT
5452300
$157,49 Unit Price incl. VAT
7
HOOD SUBSTRUCTURE
5455591
$2 189,24 Unit Price incl. VAT
8
NOSE-FRONT HOOD LED HLIGHTS
5457497
$556,49 Unit Price incl. VAT
8
NOSE-FRONT HOOD W/O HLIGHTS
5457496
$397,94 Unit Price incl. VAT
9
U-CLIP SPEED NUT
7081305
$3,66 Unit Price incl. VAT
10
SCREW
7512026
$2,09 Unit Price incl. VAT
11
SCR-HXFL-M8X1X16 8.8 ZOD
7519181
$10,49 Unit Price incl. VAT
12
BUTTON HEAD HEX SCREW 6MM X 1.0MM X 15MM
7519774
$7,34 Unit Price incl. VAT
13
TINNERMAN CLIP
7670136
$4,19 Unit Price incl. VAT
14
FENDER-FRONT LH CARIBBN TEAL
5439640882
Not Available
14
FENDER-FRONT LH POLARIS BLUE
5439640795
Not Available
14
FENDER-FRONT LH SLTH.GRY
5439640804
Not Available
14
FENDER-FRONT LH LFT.LIME
5439640801
Not Available
15
FENDER-FRONT RH POLARIS BLUE
5439641795
Not Available
15
FENDER-FRONT RH SLTH.GRY
5439641804
Not Available
15
FENDER-FRONT RH LFT.LIME
5439641801
Not Available
15
FENDER-FRONT RH CARIBBN TEAL
5439641882
Not Available
16
TRIM-FENDER LH POL BLU
5450049795
Not Available
16
TRIM-FENDER LH SPRGRSMO
5450049894
Not Available
16
TRIM-FENDER LH IND SKY BL
5450049737
Not Available
16
TRIM-FENDER LH STLTH GRY
5450049804
Not Available
16
TRIM-FENDER LH SLG ORG
5450049881
Not Available
16
TRIM-FENDER LH CARIBBN TL
5450049882
Not Available
16
TRIM-FENDER LH GHOST WHT MTCL
5450049774
Not Available
16
TRIM-FENDER LH MT.CARIB.TEAL
5450049923
Not Available
16
TRIM-FENDER LH LIFT LIME
5450049801
Not Available
17
TRIM-FENDER RH GHOST WHT MTTLC
5450050774
Not Available
17
TRIM-FENDER RH POL BLU
5450050795
Not Available
17
TRIM-FENDER RH IND SKY BL
5450050737
Not Available
17
TRIM-FENDER RH STLTH GRY
5450050804
Not Available
17
TRIM-FENDER RH MT.CARIB.TEAL
5450050923
Not Available
17
TRIM-FENDER RH SLG ORG
5450050881
Not Available
17
TRIM-FENDER RH LIFT LIME
5450050801
Not Available
17
TRIM-FENDER RH CARIBBN TL
5450050882
Not Available
17
TRIM-FENDER RH SPRGRSMO
5450050894
Not Available
18
HOOD-PANEL MAIN POLARIS BLUE
5452895795
Not Available
18
HOOD-PANEL MAIN SLTH.GRY
5452895804
Not Available
18
HOOD-PANEL MAIN CARIBBN TL
5452895882
Not Available
18
HOOD-PANEL MAIN LFT.LIME
5452895801
Not Available
18
MAIN PANEL HOOD
5452895266
Not Available

Find the detailed HOOD, STANDARD POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
