1
Engine displacement
2000
2
Year
2023
3
Trim
SLINGSHOT SL / SLR / R
4
Parts Catalog
FRONT WING
5
Parts Diagram
Parts Catalog
FLOOR ASM.
by
HOOD HINGE ASM.
FRONT WING
1
2
2
2
2
2
2
2
2
2
2
2
2
2
3
3
3
3
3
3
3
3
3
3
3
3
3
4
4
4
4
4
4
4
4
4
4
4
4
5
5
5
5
5
5
5
5
5
5
5
5
6
7
8
9
9
9
10
10
10
11
11
12
12
13
13
13
13
13
13
14
14
15
16
17
17
17
17
17
17
17
17
17
18
18
18
18
18
18
18
18
18
19
19
1
WING-FRONT LOWER
5458826
$1 102,49 Unit Price incl. VAT
2
PANEL-LEDACCENT UPPER LH GL BK
5455593266
Not Available
2
PANEL-LEDACCENT UPPER LH SLORG
5455593881
Not Available
2
PANEL-LEDACCENT UP LH LFT.LIME
5455593801
Not Available
2
PANEL-LEDACCENT UPPER LH GHWME
5455593774
Not Available
2
PANEL-LEDACCENT UPPER LH SKBLU
5455593737
Not Available
2
PANEL-LEDACCENT UPR LH SPRGRSM
5455593894
Not Available
2
PANEL-LEDACCENT UPPR LH CARIBN
5455593882
Not Available
2
PANEL-LEDACCENT UPPER LH PLBLU
5455593795
Not Available
2
PANEL-LEDACCENT UPR LH MTCRBTL
5455593923
Not Available
2
HEADLIGHT POD; LEFT
5452307
$209,99 Unit Price incl. VAT
2
PANEL-LEDACCENT UPPER LH LLMPL
5455593810
Not Available
2
PANEL LED ACCENT UPPER LH
5454399
$209,99 Unit Price incl. VAT
2
PANEL-LEDACCENT UP LH SLTHGRY
5455593804
Not Available
3
PANEL-LEDACCENT UPR RH MTCRBTL
5455594923
Not Available
3
PANEL-LEDACCENT UPPER RH SKBLU
5455594737
Not Available
3
PANEL-LEDACCENT UP RH LFT.LIME
5455594801
Not Available
3
PANEL-LEDACCENT UPPER RH PLBLU
5455594795
Not Available
3
PANEL-LEDACCENT UP RH SLTHGRY
5455594804
Not Available
3
PANEL-LEDACCENT UPPER RH LLMPL
5455594810
Not Available
3
PANEL LED ACCENT UPPER RH
5454400
$209,99 Unit Price incl. VAT
3
PANEL-LEDACCENT UPPER RH GHWME
5455594774
Not Available
3
HEADLIGHT POD; RIGHT
5452308
$209,99 Unit Price incl. VAT
3
PANEL-LEDACCENT UPPER RH GL BK
5455594266
Not Available
3
PANEL-LEDACCENT UPPER RH SLORG
5455594881
Not Available
3
PANEL-LEDACCENT UPR RH SPRGRSM
5455594894
Not Available
3
PANEL-LEDACCENT UPPR RH CARIBN
5455594882
Not Available
4
PANEL-LEDACCENT LOWER LH LLMPL
5455595810
Not Available
4
PANEL-LEDACCENT LWR LH SLTHGRY
5455595804
Not Available
4
PANEL-LEDACCENT LWR LH MTCRBTL
5455595923
Not Available
4
PANEL-LEDACCENT LOWER LH CRSBK
5455595266
Not Available
4
PANEL-LEDACCENT LOWER LH SLORG
5455595881
Not Available
4
PANEL-LEDACCENT LOWER LH GHWM
5455595774
Not Available
4
PANEL-LEDACCENT LOWER LH PLBLU
5455595795
Not Available
4
PANEL LED ACCENT LOWER LH
5454401
$209,99 Unit Price incl. VAT
4
PANEL-LEDACCENT LOWER LH SKY B
5455595737
Not Available
4
PANEL-LEDACCENT LWR LH LFT.LIM
5455595801
Not Available
4
PANEL-LEDACCENT LWR LH SPRGRSM
5455595894
Not Available
4
PANEL-LEDACCENT LWER LH CARIBN
5455595882
Not Available
5
PANEL-LEDACCENT LOWER RH SKY B
5455596737
Not Available
5
PANEL-LEDACCENT LWR RH SPRGRSM
5455596894
Not Available
5
PANEL-LEDACCENT LOWER RH LLMPL
5455596810
Not Available
5
PANEL-LEDACCENT LOWER RH GHWM
5455596774
Not Available
5
PANEL-LEDACCENT LWR RH MTCRBTL
5455596923
Not Available
5
PANEL-LEDACCENT LOWER RH CRSBK
5455596266
Not Available
5
PANEL-LEDACCENT LWR RH SLTHGRY
5455596804
Not Available
5
PANEL-LEDACCENT LOWER RH PLBLU
5455596795
Not Available
5
PANEL LED ACCENT LOWER RH
5454402
$209,99 Unit Price incl. VAT
5
PANEL-LEDACCENT LWR RH LFT.LIM
5455596801
Not Available
5
PANEL-LEDACCENT LOWER RH SLORG
5455596881
Not Available
5
PANEL-LEDACCENT LWER RH CARIBN
5455596882
Not Available
6
LOUVER FRONT CLOSEOUT LH
5454891
$62,99 Unit Price incl. VAT
7
LOUVER FRONT CLOSEOUT RH
5454892
$62,99 Unit Price incl. VAT
8
GRILL FRONT
5455736
$194,24 Unit Price incl. VAT
9
U-CLIP SPEED NUT
7081305
$3,66 Unit Price incl. VAT
10
SCREW
7512026
$2,09 Unit Price incl. VAT
11
SCREW M6 X 1.0; L-20MM
7516822
$4,19 Unit Price incl. VAT
12
SCR-HXFL-M6X1.0X16 8.8 ZYL NYL
7519236
$6,29 Unit Price incl. VAT
13
SCR-TXBH-M6X1.0X21 ZB SH TAP
7520909
$6,29 Unit Price incl. VAT
14
TUFLOK RIVET
7661855
$2,09 Unit Price incl. VAT
15
LOWER CLIP WELD; BLACK
1024046329
Not Available
16
MOUNT BRACKET FRONT UPPER WHISKER BLACK
5261028329
Not Available
17
WING-FRONT UPPER LH GHST WH MT
5454971774
Not Available
17
WING-FRONT UPPER LH POL BLU
5454971795
Not Available
17
WING-FRONT UPPER LH SPRGRSMO
5454971894
Not Available
17
WING-FRONT UPPER LH STLTH GRY
5454971804
Not Available
17
WING-FRONT UPPER LH IND SKY BL
5454971737
Not Available
17
WING-FRONT UPPR LH CARIBBN TL
5454971882
Not Available
17
WING-FRONT UPPER LH LIFT LIME
5454971801
Not Available
17
WING-FRONT UPPER LH SLG ORG
5454971881
Not Available
17
WING-FRONT UPPER LH MTCRBTL
5454971923
Not Available
18
WING-FRONT UPPER RH GHOST WH M
5454972774
Not Available
18
WING-FRONT UPPR RH CARIBBN TL
5454972882
Not Available
18
WING-FRONT UPPER RH SLG ORG
5454972881
Not Available
18
WING-FRONT UPPER RH POL BLU
5454972795
Not Available
18
WING-FRONT UPPER RH MTCRBTL
5454972923
Not Available
18
WING-FRONT UPPER RH IND SKY BL
5454972737
Not Available
18
WING-FRONT UPPER RH STLTH GRY
5454972804
Not Available
18
WING-FRONT UPPER RH LIFT LIME
5454972801
Not Available
18
WING-FRONT UPPER RH SPRGRSMO
5454972894
Not Available
19
HEX FLANGE BOLT; 8 MM X 1.25 MM X 20 MM
7518702
$7,34 Unit Price incl. VAT

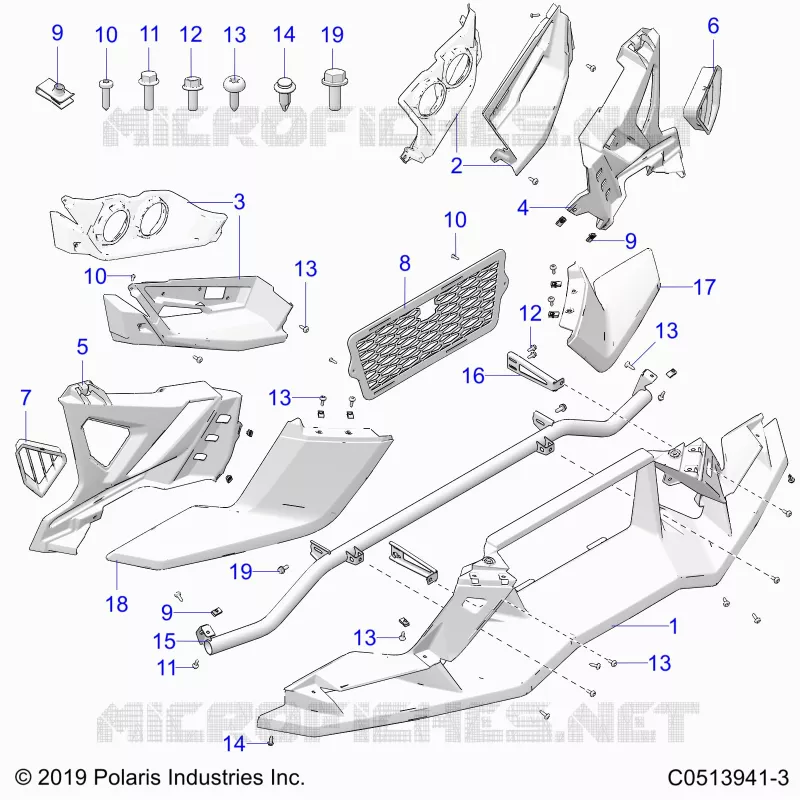

Find the detailed FRONT WING POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
