1
Engine displacement
2000
2
Year
2023
3
Trim
SLINGSHOT SL / SLR / R
4
Parts Catalog
ELECTRICAL, INFOTAINMENT
5
Parts Diagram
Parts Catalog
ELECTRICAL, INTERIOR LIGHTING
by
BODY, WIND DEFLECTOR (CANADA)
ELECTRICAL, INFOTAINMENT
1
2
3
4
4
5
6
7
8
9
10
10
10
10
11
12
13
13
14
14
15
16
17
17
18
19
20
21
22
22
22
22
22
22
22
22
23
23
23
23
23
23
23
23
24
25
26
26
26
26
26
26
26
26
27
27
27
27
27
27
27
27
28
28
1
ASM-ENC SPKR RF LH
2416547
$750,74 Unit Price incl. VAT
2
ASM-SPEAKER WOOFER
2414536
$278,24 Unit Price incl. VAT
3
ASM-GRILL SPKR LH
2415787
$89,24 Unit Price incl. VAT
4
STRAP-MOUNTING SPKR
5417508
$9,44 Unit Price incl. VAT
5
ASM-ENC SPKR RF RH
2416548
$750,74 Unit Price incl. VAT
6
ASM-GRILL SPKR RH
2415788
$89,24 Unit Price incl. VAT
7
CABLE TIE
7080138
$5,24 Unit Price incl. VAT
8
ROUTING CLIP
7081496
$9,44 Unit Price incl. VAT
9
ASM-BRKT MOUNT RC
1027386
$68,24 Unit Price incl. VAT
10
DISP-PGM SLG 500K NAV 1.3.2
3286968
3286977
$2 288,99 Unit Price incl. VAT
10
DISP-PGM SLG 500K NONAV 1.3.2
3286969
3286978
$1 989,74 Unit Price incl. VAT
10
DISP-PGM SLG 500K
3286925
3286977
$2 288,99 Unit Price incl. VAT
10
DISP-PGM SLG 500K NO NAV
3286936
3286978
$1 989,74 Unit Price incl. VAT
11
HARNESS-RADIO SS RFAMP
2415597
$587,99 Unit Price incl. VAT
12
STRAP-CABLE TIEW/EDGECLIP3-6MM
7081824
$26,24 Unit Price incl. VAT
13
ASM-ENC TWEETER
2415769
$120,74 Unit Price incl. VAT
14
RUBBER GROMMET; MOUNT; 25 IN.
5412504
$7,34 Unit Price incl. VAT
15
SCREW
7517704
$13,64 Unit Price incl. VAT
16
MODULE-ANTENNA GPS EXT
4018320
$629,99 Unit Price incl. VAT
17
CELL MODEM MODULE
4018230
$1 385,99 Unit Price incl. VAT
17
K-MODULE-CELL CANADA
2208380
$1 385,99 Unit Price incl. VAT
18
SCREW
7512026
$2,09 Unit Price incl. VAT
19
ASM-GRILL SPKR RR
2415891
$89,24 Unit Price incl. VAT
20
SCR-HXBH-M4X0.7X10 SS
7527844
$12,59 Unit Price incl. VAT
21
COAXIAL ASSEMBLY
2414537
$278,24 Unit Price incl. VAT
22
ASM-ENCL SPKR RR RH SLG O
2638210881
Not Available
22
ASM-ENCL SPKR RR RH CRB T [SL MODELS] [CARIBBEAN TEAL]
2638210882
Not Available
22
ASM-ENCL SPKR RR RH MMI B [R MODELS] [INDIAN SKY BLUE]
2638210737
Not Available
22
ASM-ENCL SPKR RR RH LFTD LIME
2638210801
Not Available
22
ASM-ENCL SPKR RR RH GWM [R MODELS] [GHOST WHITE METALLIC]
2638210774
Not Available
22
ASM-ENCL SPKR RR RH POL BLU
2638210795
Not Available
22
ASM-ENCL SPKR RR RH CRBLK [SL/SLR/R MODELS] [CRUISER BLACK]
2638210266
Not Available
22
ASM-ENCL SPKR RR RH STLH GRAY
2638210804
Not Available
23
ASM-ENCL SPKR RR LH CRBLK [SL/SLR/R MODELS] [CRUISER BLACK]
2638209266
Not Available
23
ASM-ENCL SPKR RR LH LFTD LIME
2638209801
Not Available
23
ASM-ENCL SPKR RR LH STLH GRAY
2638209804
Not Available
23
ASM-ENCL SPKR RR LH MMI B [R MODELS] [INDIAN SKY BLUE]
2638209737
Not Available
23
ASM-ENCL SPKR RR LH POL BLU
2638209795
Not Available
23
ASM-ENCL SPKR RR LH GWM [R MODELS] [GHOST WHITE METALLIC]
2638209774
Not Available
23
ASM-ENCL SPKR RR LH CRB T [SL MODELS] [CARIBBEAN TEAL]
2638209882
Not Available
23
ASM-ENCL SPKR RR LH SLG O
2638209881
Not Available
24
BOLT SHOULDER M4.2 X 1.40 X 1
7518518
$3,14 Unit Price incl. VAT
25
PALNUT 4 MM
7547324
$7,34 Unit Price incl. VAT
26
ENC-SPKR RR RH RR CRB T
5457697882
Not Available
26
ENCL-SPKR RR RH LFTD.LIME
5457697801
Not Available
26
ENCL-SPKR RR RH POL BLU
5457697795
Not Available
26
ENCL-SPKR RR RH RR CRBLK
5457697266
Not Available
26
ENC-SPKR RR RH RR SLG O
5457697881
Not Available
26
ENC-SPKR RR RH RR GWM
5457697774
Not Available
26
ENC-SPKR RR RH RR MMI B
5457697737
Not Available
26
ENCL-SPKR RR RH STLH.GRAY
5457697804
Not Available
27
ENCL-SPKR RR LH STLH.GRAY
5457694804
Not Available
27
ENC-SPKR RR LH RR MMI B
5457694737
Not Available
27
ENCL-SPKR RR LH LFTD.LIME
5457694801
Not Available
27
ENCL-SPKR RR LH POL BLU
5457694795
Not Available
27
ENC-SPKR RR LH RR CRB T
5457694882
Not Available
27
ENC-SPKR RR LH RR SLG O
5457694881
Not Available
27
ENCL-SPKR RR LH RR CRBLK
5457694266
Not Available
27
ENC-SPKR RR LH RR GWM
5457694774
Not Available
28
HARNESS-STAGE 3 SPEAKER;SLG
2415946
$83,99 Unit Price incl. VAT

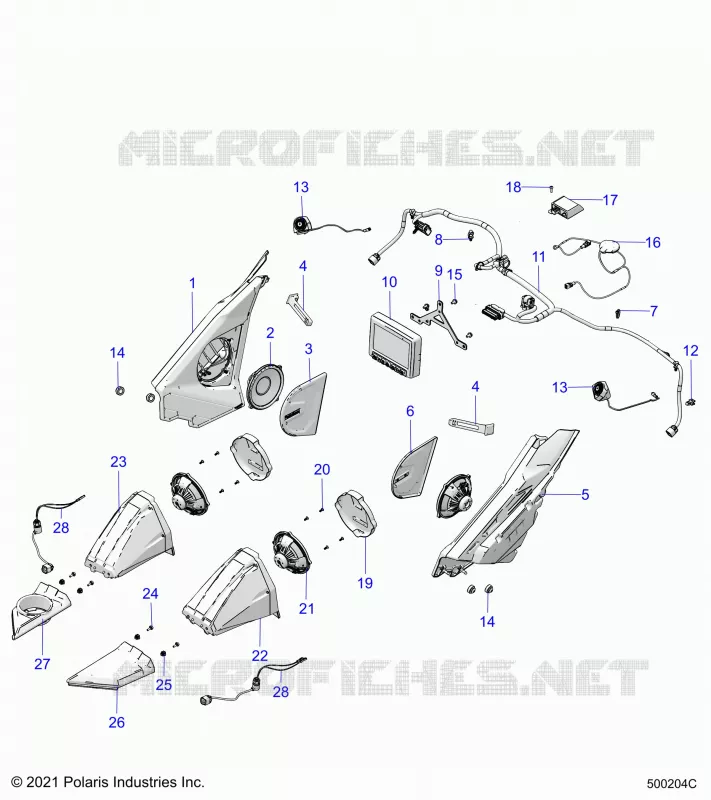

Find the detailed ELECTRICAL, INFOTAINMENT POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
