Parts Catalog
DOORS, FRONT
5
Parts Diagram
Parts Catalog
DRIVE TRAIN, FRONT GEARCASE
by
FLOOR & ROCKER PANELS
DOORS, FRONT
17
18
19
19
1
E CLIP 6 MM
7710466
$6,29 Unit Price incl. VAT
2
ASM-LATCH DOOR LH
2635305
2637286
$141,74 Unit Price incl. VAT
2
ASM-LATCH DOOR RH
2635306
2637287
$141,74 Unit Price incl. VAT
3
DOOR HINGE BRACKET
5258008
5270635
$52,49 Unit Price incl. VAT
4
DOOR HINGE PIN
7662138
$8,39 Unit Price incl. VAT
5
SCR-TXTH-M6X1.0X20 T40 ZPB
7519112
$6,29 Unit Price incl. VAT
6
SCR-TXTH-M8X1.25X20 8.8 BLK
7519997
$7,34 Unit Price incl. VAT
7
DOOR PIVOT BUSHING
5450592
$5,24 Unit Price incl. VAT
8
STRIKER WELD; RIGHT
1021238
$73,49 Unit Price incl. VAT
8
STRIKER WELD; LEFT
1021237
$73,49 Unit Price incl. VAT
9
FRONT LEFT HAND DOOR FRAME; MATTE BLACK
5257929458
Not Available
9
RIGHT HAND DOOR FRAME; MATTE BLACK
5257930458
Not Available
10
LEFT HAND DOOR SKIN
5450636
$241,49 Unit Price incl. VAT
10
RIGHT HAND DOOR SKIN
5450638
$241,49 Unit Price incl. VAT
11
TORX SCREW; #14 X 3/4
7519045
$6,29 Unit Price incl. VAT
12
SCR-TXBH-M6X1.0X12 8.8 ZPB D20
7519063
$6,29 Unit Price incl. VAT
13
DOOR WELD MOUNT; LOWER; RIGHT
1019999
$209,99 Unit Price incl. VAT
13
DOOR MOUNT WELD; LOWER; LEFT; RZR
1019994
$209,99 Unit Price incl. VAT
14
DOOR PANEL; LOWER; RIGHT; PLASTIC
5450617
$209,99 Unit Price incl. VAT
14
DOOR PANEL; LOWER; LEFT; PLASTIC
5450616
$209,99 Unit Price incl. VAT
15
SCREW 8 MM X 1.25 MM
7517484
$9,44 Unit Price incl. VAT
16
NYLOK NUT; 8 MM X 1.25 MM
7547144
$6,29 Unit Price incl. VAT
17
WEATHER STRAP SEAL; LOWER; RZN
5522024180
Not Available
18
SEAL-WTHRSTRP LWR DR RZN
5522024837
Not Available
19
DOOR MOUNT; LOWER; RIGHT; RZN
5258255
9999999
Not Available
19
DOOR MOUNT; LOWER; LEFT; RZN
5258254
9999999
Not Available

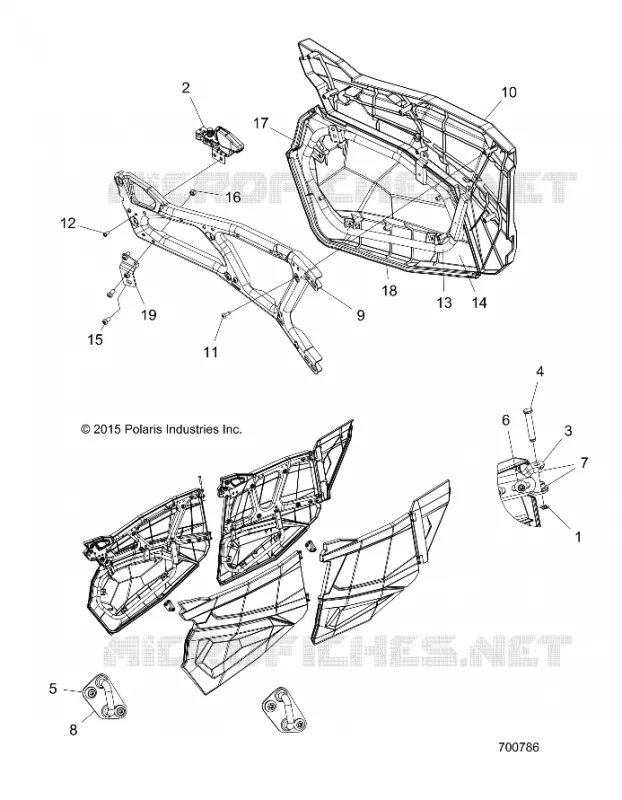

Find the detailed DOORS, FRONT POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.
