Parts Catalog
DRIVE TRAIN, CLUTCH COVER AND DUCTING
5
Parts Diagram
Parts Catalog
STEERING
by
DRIVE TRAIN, FRONT GEARCASE
DRIVE TRAIN, CLUTCH COVER AND DUCTING
15
16
16
16
17
18
19
20
21
22
23
23
24
24
25
26
26
27
27
28
29
1
ASM-COVER CLUTCH INNER SEAL
2635822
2635158
$314,99 Unit Price incl. VAT
2
CLUTCH COVER SEAL OUTER
5521831
5526449
$78,74 Unit Price incl. VAT
3
CLUTCH COVER GUARD BRACKET
5256223
$68,24 Unit Price incl. VAT
4
AIR INLET CLUTCH DUCT
5439086
$73,49 Unit Price incl. VAT
5
SCR-M6X1.0X20MM TX PH 8.8-B
7518546
$6,29 Unit Price incl. VAT
6
SCR-#14X3/4 HI/LO-PH-PN TRX-M
7519205
$3,14 Unit Price incl. VAT
7
HEX FLANGE NUT; 6 MM X 1.0 MM
7547453
$7,34 Unit Price incl. VAT
8
CLUTCH DUCT INTAKE ASSEMBLY
1240782
$262,49 Unit Price incl. VAT
9
CLUTCH HOSE; AIR INLET
5414580
$173,24 Unit Price incl. VAT
10
CLAMP-HOSE OETIKER 94.8-98
7081914
$19,94 Unit Price incl. VAT
11
INTAKE DUCT; CLUTCH; AIR
5450655
$194,24 Unit Price incl. VAT
12
INTAKE HOSE COVER TOP PLASTIC INDY RED
5451616293
Not Available
13
INTAKE HOSE BOTTOM COVER; GLOSS BLACK
5451617070
Not Available
14
INTAKE BOOT CLUTCH
5813639
$19,94 Unit Price incl. VAT
15
COVER SEAL
5813708
$41,99 Unit Price incl. VAT
16
WORM DRIVE CLAMP
7081626
$14,69 Unit Price incl. VAT
17
DECAL-BELT CAUTION/CHECK
7177469
Not Available
18
OUTER CLUTCH COVER ASSEMBLY
2634179
$346,49 Unit Price incl. VAT
19
O RING-.364X.504X.07
5410542
5411432
$9,44 Unit Price incl. VAT
20
DRAIN PLUG
5434264
$10,49 Unit Price incl. VAT
21
CLUTCH HOSE; AIR OUTLET; HC
5415126
$257,24 Unit Price incl. VAT
22
SCREW HI/LO M6 X 35
7519330
$7,34 Unit Price incl. VAT
23
SCR-TXPH-#10X1.0 ZPB HI/LO
7520164
$3,14 Unit Price incl. VAT
24
HEX HEAD FLANGE SCREW; 6 MM X 16 MM
7518591
$6,29 Unit Price incl. VAT
25
BOLT/WASHER ASSMEBLY; 20 MM
7519278
$9,44 Unit Price incl. VAT
26
HOSE CLAMP
7081996
$41,99 Unit Price incl. VAT
27
INLET HOSE
5415215
$104,99 Unit Price incl. VAT
28
CLUTCH DUCT; EXHAUST; HC
5451475
$136,49 Unit Price incl. VAT
29
CLUTCH INTAKE DUCT
5451474
9999999
Not Available

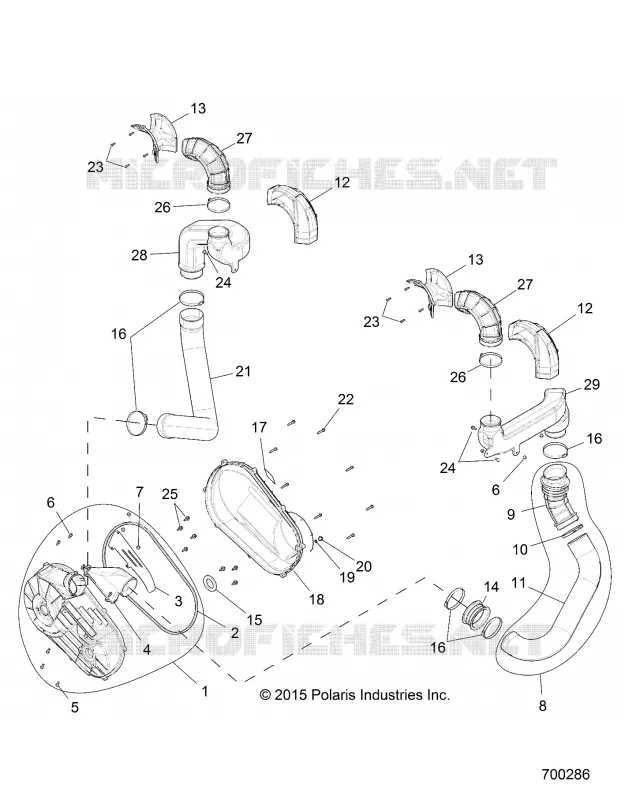

Find the detailed DRIVE TRAIN, CLUTCH COVER AND DUCTING POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.
