Parts Catalog
ENGINE, AIR INTAKE SYSTEM
5
Parts Diagram
Parts Catalog
WIRE HARNESS
by
EXHAUST SYSTEM
ENGINE, AIR INTAKE SYSTEM
23
24
25
26
27
28
29
30
31
32
33
34
35
1
DRAIN PLUG
5139797
$17,84 Unit Price incl. VAT
2
AIRBOX HOSE
5414691
$204,74 Unit Price incl. VAT
3
3.75 SS
7080907
$20,99 Unit Price incl. VAT
4
AIRBOX HOUSING ASSEMBLY
1240747
$173,24 Unit Price incl. VAT
5
U-TYPE NUT; M6-1.0
7547674
$2,09 Unit Price incl. VAT
6
AIRBOX COVER ASSEMBLY
1240748
$141,74 Unit Price incl. VAT
7
AIRBOX SEAL
5813929
$52,49 Unit Price incl. VAT
8
AIRBOX CLIP
7081872
$10,49 Unit Price incl. VAT
9
ASM-FILTER
1240957
1241084
$57,63 Unit Price incl. VAT
9
K-INTAKE AIR FILETER RZN
2879520
2882234
$120,74 Unit Price incl. VAT
10
WASHER .281 X 1.00 X 0.51
7556329
$2,09 Unit Price incl. VAT
11
DECAL-CAUT.AIR BOX
7182652
Not Available
12
HEX FLANGE BOLT; 8 MM X 1.25 MM X 20 MM
7518555
$4,19 Unit Price incl. VAT
13
BOLT
7519650
$7,34 Unit Price incl. VAT
14
INTAKE DUCT ASSEMBLY
1240770
$278,24 Unit Price incl. VAT
15
ENGINE HOSE VENT
5414671
$73,49 Unit Price incl. VAT
16
HOSE CLAMP
7080614
$13,64 Unit Price incl. VAT
17
SPRINGBAND CLAMP; 27/12; GREEN
7080841
$13,64 Unit Price incl. VAT
18
BOLT M6 X 1.0 X 20
7518529
$2,09 Unit Price incl. VAT
19
INTAKE WELD; ENGINE HOUSING
1240749
$293,99 Unit Price incl. VAT
20
COMPRESSION SHAFT LIMITER; 34.4 MM
5138987
$31,49 Unit Price incl. VAT
21
THROTTLE BODY BOOT
5414570
$99,74 Unit Price incl. VAT
22
BUSHING-MOUNT
5414719
$5,24 Unit Price incl. VAT
23
WORM DRIVE CLAMP; .44 X 3.75
7080812
$36,74 Unit Price incl. VAT
24
CLAMP HOSE
7081623
$5,76 Unit Price incl. VAT
25
HEX FLANGE SCREW; 8 MM X 1.25 MM X 60 MM
7519298
$7,34 Unit Price incl. VAT
26
NYLOC OLIVE NUT; 8 MM X 1.25 MM
7547332
$7,34 Unit Price incl. VAT
27
WORM DRIVE CLAMP
7081626
$14,69 Unit Price incl. VAT
28
INLET HOSE
5415215
$104,99 Unit Price incl. VAT
29
ENGINE INTAKE DUCT
5451473
9999999
Not Available
30
HOSE CLAMP
7081996
$41,99 Unit Price incl. VAT
31
HEX HEAD FLANGE SCREW; 6 MM X 16 MM
7518591
$6,29 Unit Price incl. VAT
32
SCR-TXPH-#10X1.0 ZPB HI/LO
7520164
$3,14 Unit Price incl. VAT
33
HEX FLANGE NUT; 6 MM X 1.0 MM
7547453
$7,34 Unit Price incl. VAT
34
INTAKE HOSE COVER TOP PLASTIC INDY RED
5451616293
Not Available
35
INTAKE HOSE BOTTOM COVER; GLOSS BLACK
5451617070
Not Available

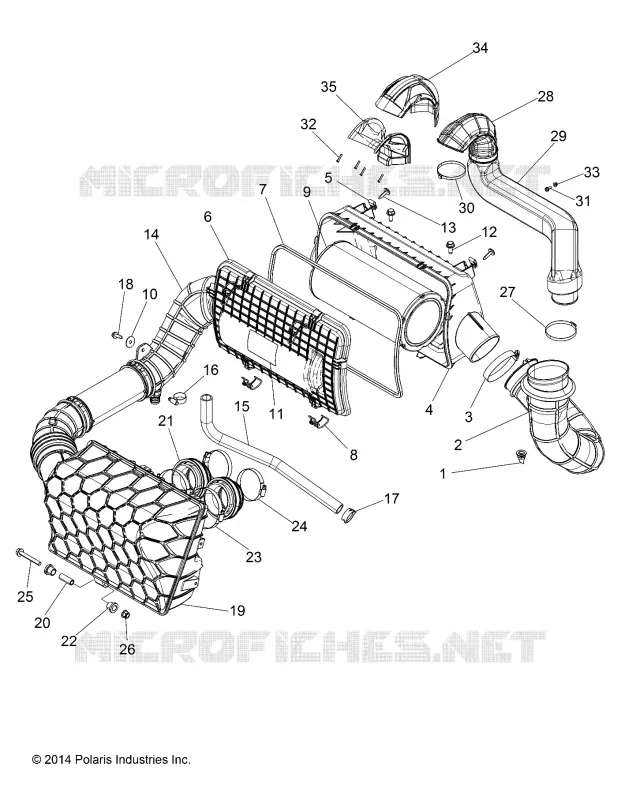

Find the detailed ENGINE, AIR INTAKE SYSTEM POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.
