1
Engine displacement
650
2
Year
1988
3
Trim
SWE 650 SKS - S880558
4
Parts Catalog
CRANKCASE 650 (4914131413026A)
5
Parts Diagram
Parts Catalog
CRANKCASE 400 (4914131413025A)
by
CYLINDER 400 (4914131413027A)
CRANKCASE 650 (4914131413026A)
1
CRANKCASE Substituted by 2200770 (Incl. 2 5-8 18)
3083472
Not Available
2
PIN DOWEL
3083054
9999999
Not Available
3
STUD
3083785
9999999
Not Available
4
SPACER
3083786
Not Available
5
BOLT AND WASHER ASSY.
3082097
9999999
Not Available
6
BOLT-WASHER
3082923
9999999
Not Available
7
BOLT & WASHER
3082925
Not Available
8
BOLT-WASHER
3082924
Not Available
9
CONNECTOR
3080641
Not Available
10
WASHER WAVE
3081634
9999999
Not Available
11
WASHER WAVE(10)
3083027
Not Available
12
PLUG
3083044
9999999
Not Available
13
GROMMET
3082875
9999999
Not Available
14
COVER; CRANKCASE
3083390
9999999
Not Available
15
SEAL OIL
3083331
9999999
Not Available
16
GASKET
3083473
9999999
Not Available
17
SCREW COUNTER SUNK
3083333
9999999
Not Available
18
ASM. CLAMP
3083391
9999999
Not Available

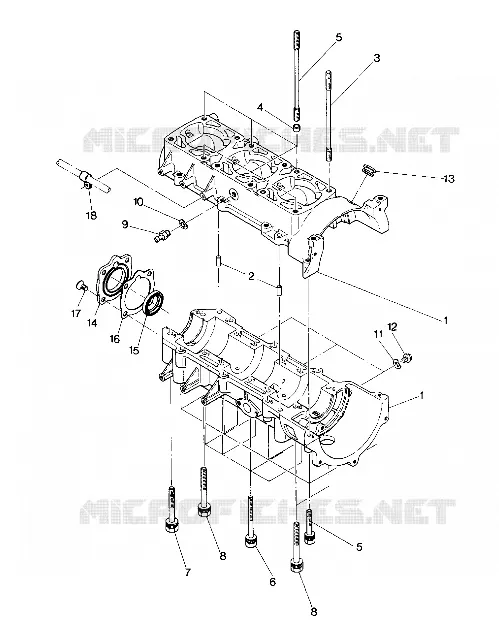

Find the detailed CRANKCASE 650 (4914131413026A) POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
